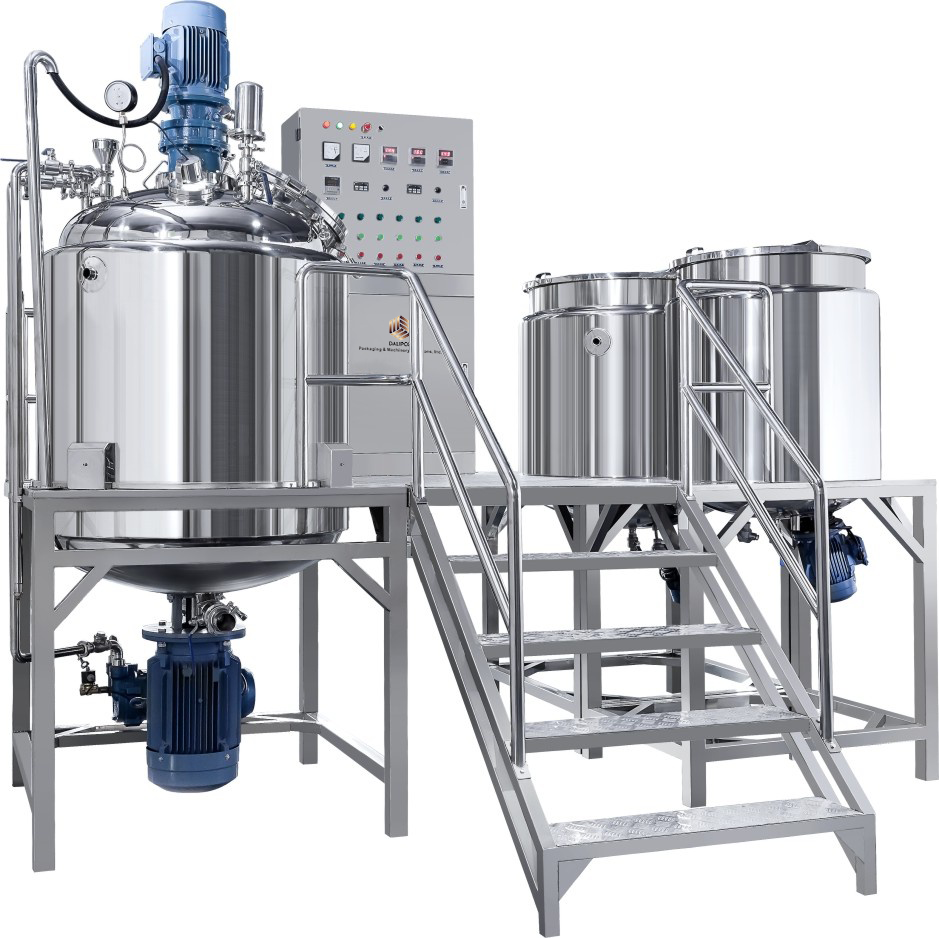

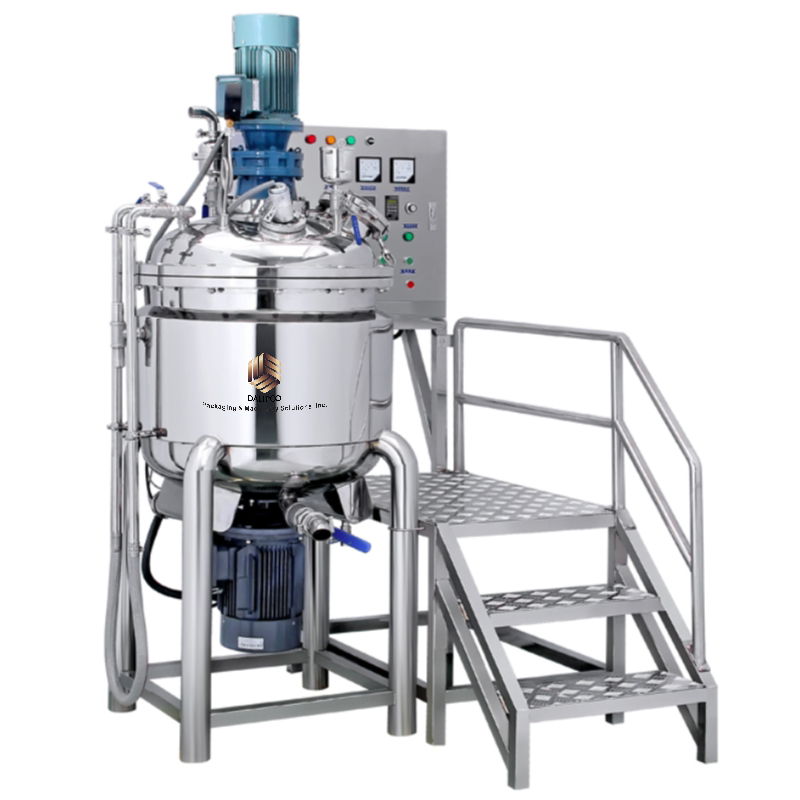

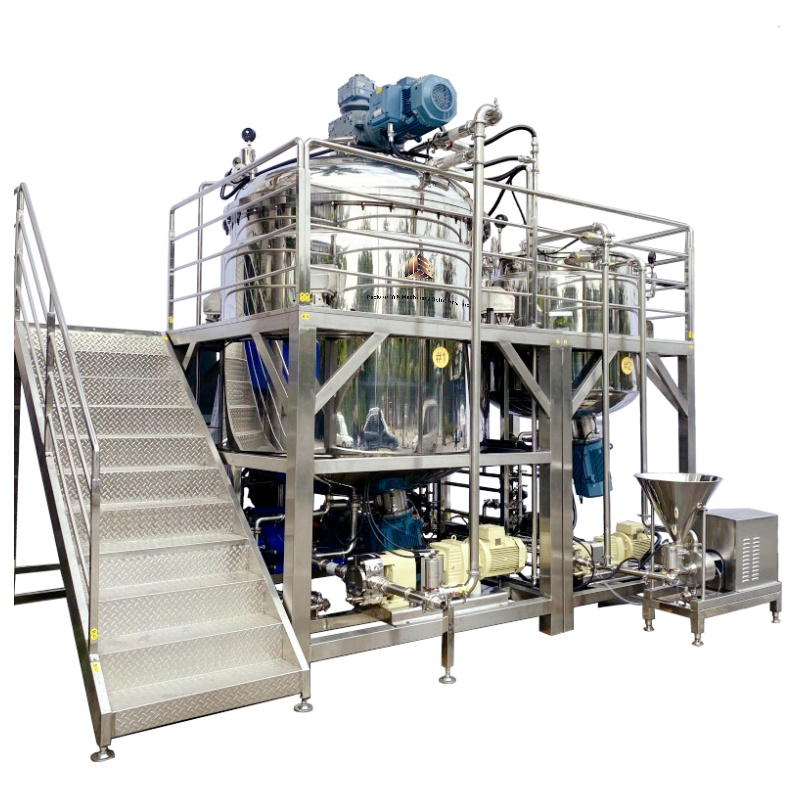

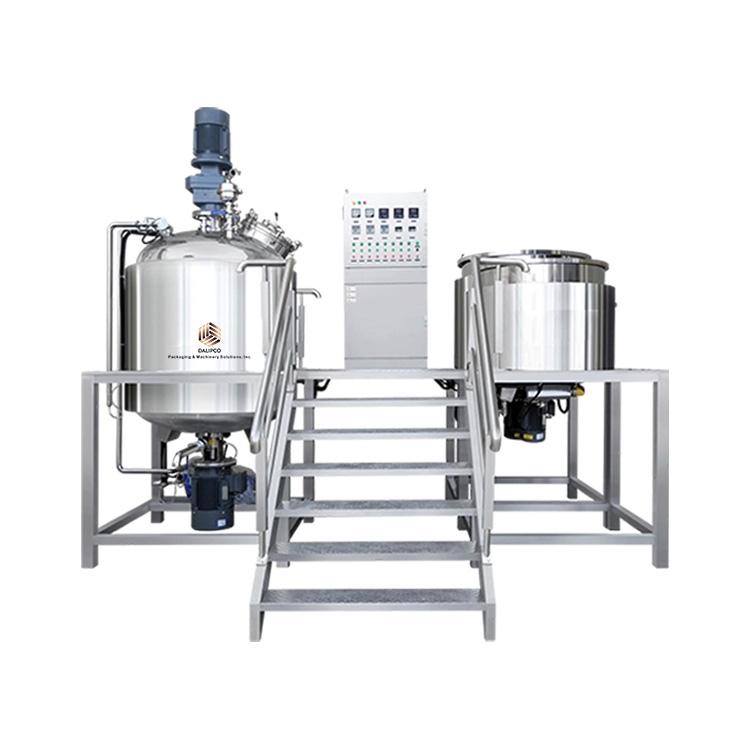

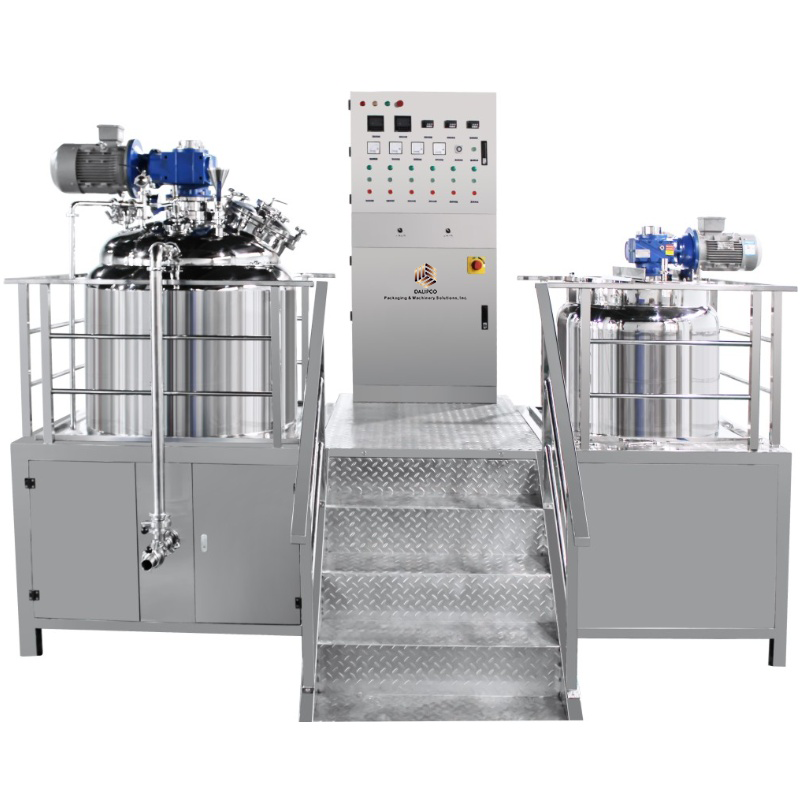

A fixed cover vacuum homogenizer emulsifier is a core production equipment used for material mixing, homogenization, and emulsification in industries such as food, cosmetics, and pharmaceuticals.
A fixed cover vacuum homogenizer emulsifier is a core production equipment used for material mixing, homogenization, and emulsification in industries such as food, cosmetics, and pharmaceuticals. With stable operation and precise process control, it is widely applied in the large-scale production of products that require high texture consistency. This fixed cover design offers two direct advantages:
1. Space-saving in height: Without the vertical stroke required for lid lifting, the overall height of the equipment is significantly reduced. This makes it ideal for production workshops with limited ceiling height, as it avoids the need for additional overhead space allocation.
2. Budget optimization: The removal of lifting components (such as hydraulic cylinders, pneumatic pumps, and control systems for lifting) simplifies the equipment structure, lowers manufacturing and maintenance costs, and ultimately reduces the initial procurement budget for enterprises.
Product Specifications
Parameter Value Material 316L stainless steel (pharmaceutical-grade polished, Ra≤0.4μm) Batch Size 100–5,000 liters (fixed vessel with 80% optimal loading capacity) Mixing Speed 0-63 RPM (mixing with Teflon Scraper) Homogenizer Speed 0–2,960 RPM (high shear homogenizer) Vacuum Degree -0.09 Mpa Temperature Control Electric or steam heating
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Material | 316L stainless steel (pharmaceutical-grade polished, Ra≤0.4μm) |
| Batch Size | 100–5,000 liters (fixed vessel with 80% optimal loading capacity) |
| Mixing Speed | 0-63 RPM (mixing with Teflon Scraper) |
| Homogenizer Speed | 0–2,960 RPM (high shear homogenizer) |
| Vacuum Degree | -0.09 Mpa |
| Temperature Control | Electric or steam heating |
| Effective Capacity | 1000L | 2000L | 4000L | 5000L |
| Material | All product contact part are made of Stainless Steel 316L |
| Tank Design | Three layers, double jackets |
| Heating Methods | Eelctric heating(or steam heating) |
| Mixing Design | Single way no-dead-angle mixing paddle with Teflon sraper |
| Mixing Power | 7.5KW | 11KW | 15KW | 18.5KW |
| Mixing Speed | 0-63rpm, customizable |
| Mixing Motor | ABB or SIEMENS |
| Homogenizer Design | High shear teeth-shape homogenizer |
| Homogenizer Position | Bottom/upper/inline homogenizer+rotary pump circulation type |
| Homogenizer Power | 15KW | 18.5KW | 22KW | 30KW |
| Homogenizer Speed | 0-2960rpm, customizable |
| Homogenizer Motor | ABB or SIEMENS |
| Vacuum Pressure | -0.1Mpa |
| Cover Type | Fixed cover with manhole |
| Control Way | SIEMENS PLC control system and touch screen/push button |
| Customization | Weighing load cell/Electric lifting platform/Water flow meter/Water chiller/CIP system/Pump circulation |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Effective Capacity 1000L 2000L 4000L 5000L Material All product contact part are made of Stainless Steel 316L Tank Design Three layers, double jackets Heating Methods Eelctric heating(or steam heating) Mixing Design Single way no-dead-angle mixing paddle with Teflon sraper Mixing Power 7.5KW 11KW 15KW 18.5KW Mixing Speed 0-63rpm, customizable Mixing Motor ABB or SIEMENS Homogenizer Design High shear teeth-shape homogenizer Homogenizer Position Bottom/upper/inline homogenizer+rotary pump circulation type Homogenizer Power 15KW 18.5KW 22KW 30KW Homogenizer Speed 0-2960rpm, customizable Homogenizer Motor ABB or SIEMENS Vacuum Pressure -0.1Mpa Cover Type Fixed cover with manhole Control Way SIEMENS PLC control system and touch screen/push button Customization Weighing load cell/Electric lifting platform/Water flow meter/Water chiller/CIP system/Pump circulation
