● High Precision Servo Control: Equipped with a professional servo motor and touch screen control system, the machine supports one-click digital fine-tuning of filling volume and filling speed.
Equipped with a professional servo motor and touch screen control system, the machine supports one-click digital fine-tuning of filling volume and filling speed. It achieves a filling accuracy of ±1%, effectively eliminating material waste and inconsistent filling dosage of finished products.
Featuring a small footprint and tool-free installation, the machine supports both manual button and foot switch control. It adapts flexibly to frequent bottle changes and multi-specification production with high efficiency.
All material contact parts are made of food-grade stainless steel with no cleaning dead corners and no bacterial growth. Corrosion-resistant and easy to clean, the machine fully meets the sanitary production standards for food and daily chemical industries.
It features strong universal compatibility, perfectly suitable for filling diverse materials ranging from low-viscosity liquids to high-thickness pastes, including products with fine solid particles. It covers multiple industries such as cosmetics, food, pharmacy and daily chemicals, and fits various bottle types and specifications. Ideal for diversified production and multi-product processing needs.
bottom valve and tilting. The main pot can tilt up more than 90°, simplifying the discharge of viscous materials.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Material | Stainless Steel 304/316 |
| Filling nozzles | 1 Nozzle |
| Filling range | 10-5000ml |
| Filling accuracy | ±0.1% |
| Air pressure | 0.4-0.6MPa |
| Control | Touch Screen |
| Key selling points | High-Accuracy |
| Application bottle type | Round bottle, square bottle, plastic bottle, glass bottle, jar, pouch |
| Application | Liquids, creams, pastes, body scrub, cosmetics |
Detailed inspection of verified station components, drives, and sanitation assemblies.

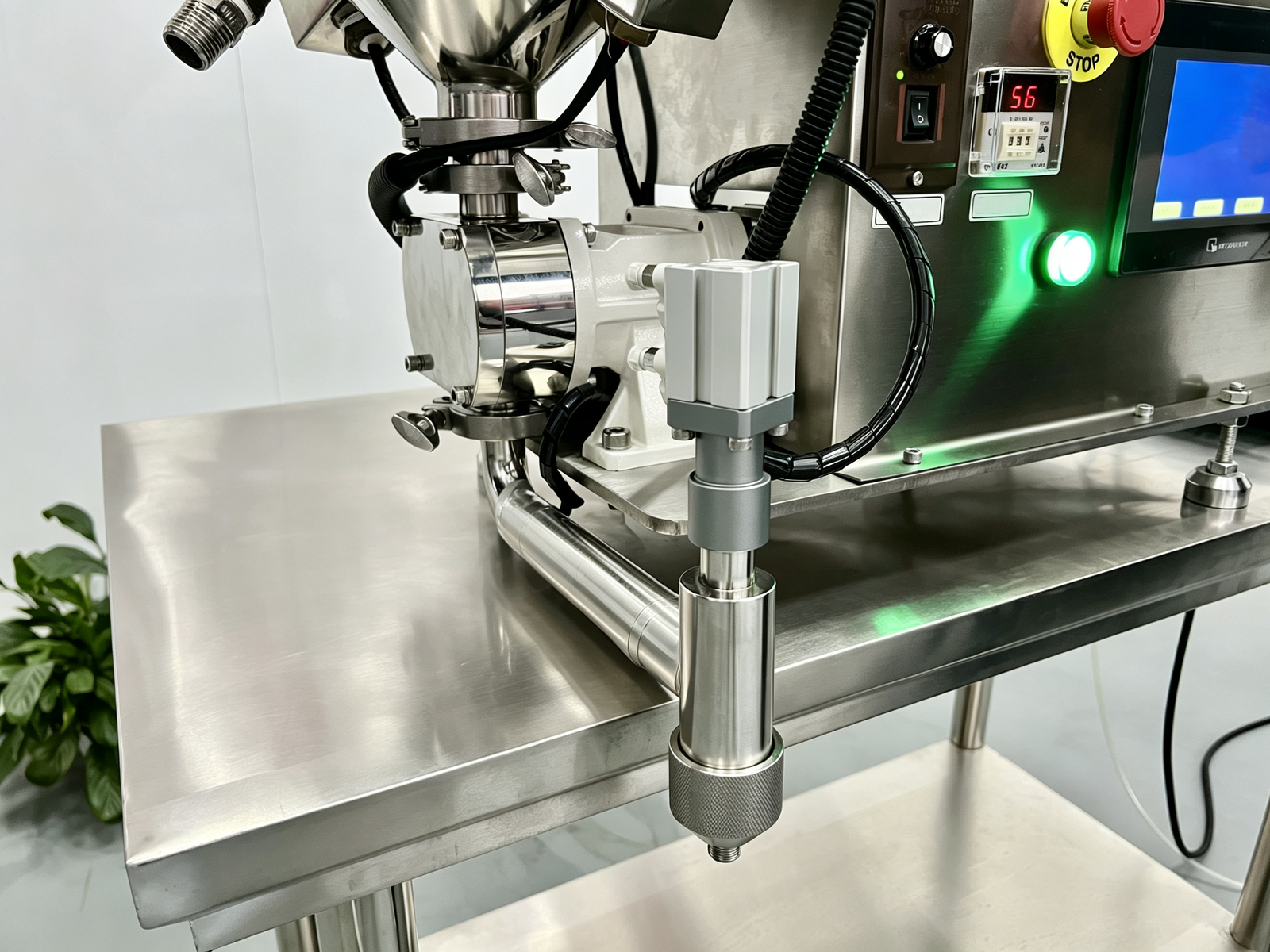

Stainless‑steel filling nozzle equipped with suck‑back anti‑drip structure. It effectively prevents material dripping and stringing upon completion of filling, avoiding residue stains on bottle necks. Quick‑disassembly design enables easy dismounting for cleaning. Compatible with liquids, creams, pastes and granular materials.

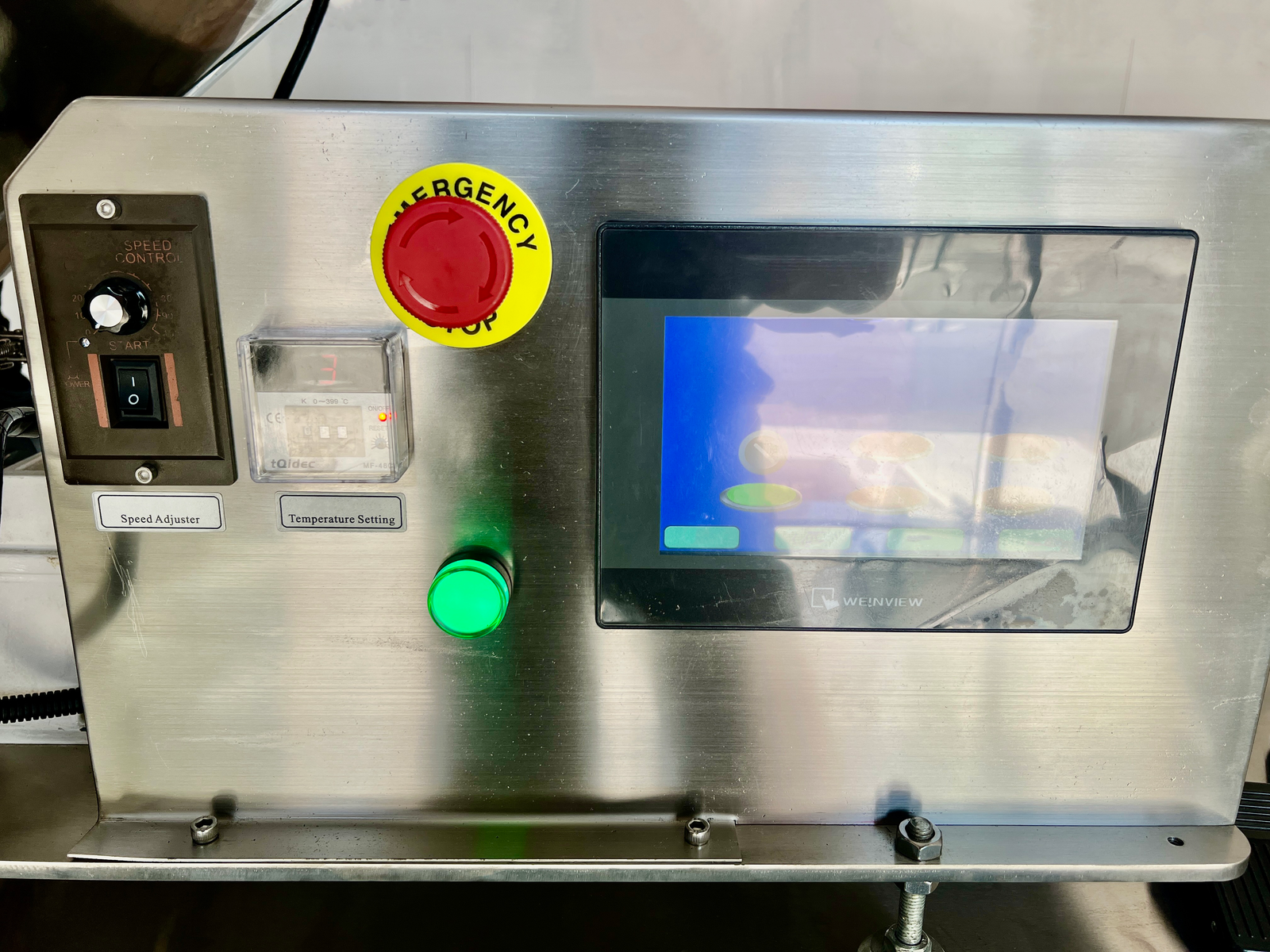

HMI touch‑screen control panel for intuitive and convenient parameter setup. Equipped with emergency stop button, power switch and running indicator light, it gives clear visibility of machine status. Safe and simple operation, even new operators can get started quickly.

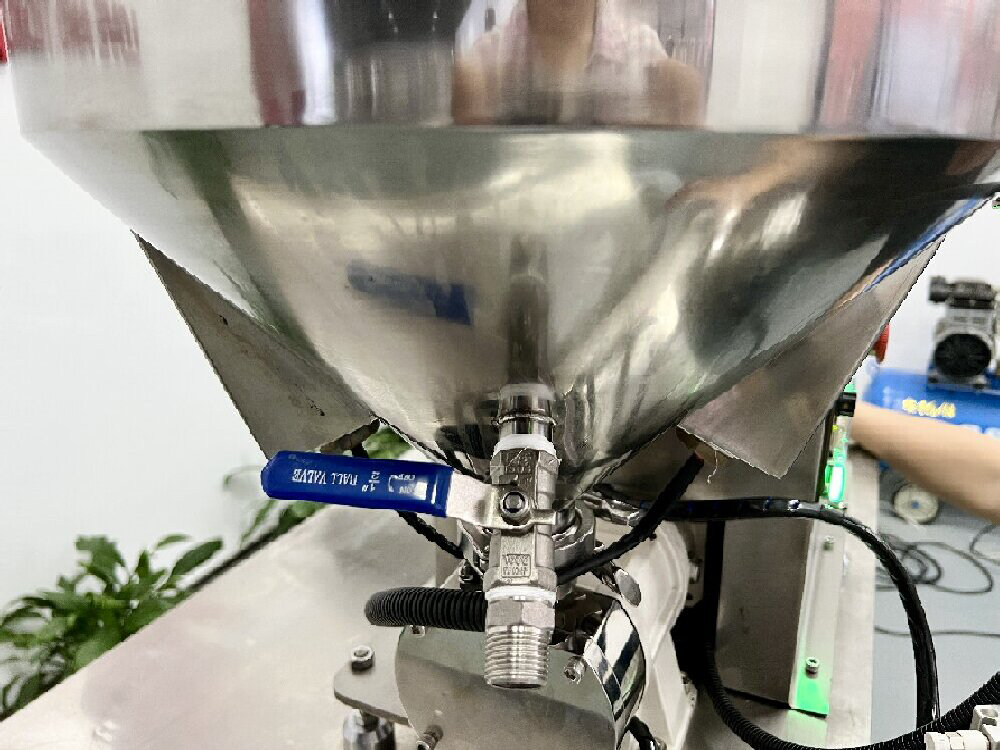

The hopper is fitted with a manual valve switch to cut off material flow during disassembly, cleaning and maintenance. All material‑contact parts are made of stainless steel, complying with food‑grade hygiene standards.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
