● High-precision Filling Driven precisely by servo motor and plunger metering structure, it achieves extremely low filling tolerance.
High-precision Filling
Driven precisely by servo motor and plunger metering structure, it achieves extremely low filling tolerance. Stable dosing is available for both small and large volumes, which greatly reduces material waste. It is perfectly applicable for filling liquid medicine, creams, body lotions and various other materials.
Food Grade Stainless Steel
The entire machine is constructed from SUS304 stainless steel, and all product contact parts are made of SUS316 stainless steel. It complies with sanitary standards for food, cosmetic and pharmaceutical industries. Boasting outstanding corrosion resistance and rust-proof performance, it prevents material contamination for both liquids and pastes, and allows effortless wiping and cleaning.
Touch Screen Control
Equipped with HD touch screen for intuitive adjustment of filling volume and speed. Operators can master it quickly after simple training. Physical start/stop and emergency stop buttons ensure immediate shutdown for safer production.
Superior Sealing Performance
Small scale cosmetic mixer materials - contacting parts are made of SUS316L stainless steel, mirror - polished inside. They meet GMP standards, are corrosion - resistant, and easy to clean.
Wide Applicability
This machine features strong compatibility and suits various liquids, pastes and high-viscosity materials. It is widely used in cosmetics, daily chemicals, food, sauce, pharmaceutical and ointment industries. It fits multiple bottle types to meet diversified production demands.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Material | All product contact part are made of Stainless Steel 316L |
| Filling speed | 25-30BPM |
| Filling volume | 5-60ml/10-120ml/25-250ml/50-500ml/100-1000ml/200-2500ml/500-5000ml |
| Filling accuracy | ±1% |
| Air pressure | 0.5-0.6MPa |
| Power | 800W |
| Voltage | 220V 50/60Hz |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Large-capacity feeding hopper for easy material loading. For creams and high-viscosity materials, materials can flow down smoothly by gravity to avoid material adhesion and feeding blockage, perfectly suitable for various thick paste materials.

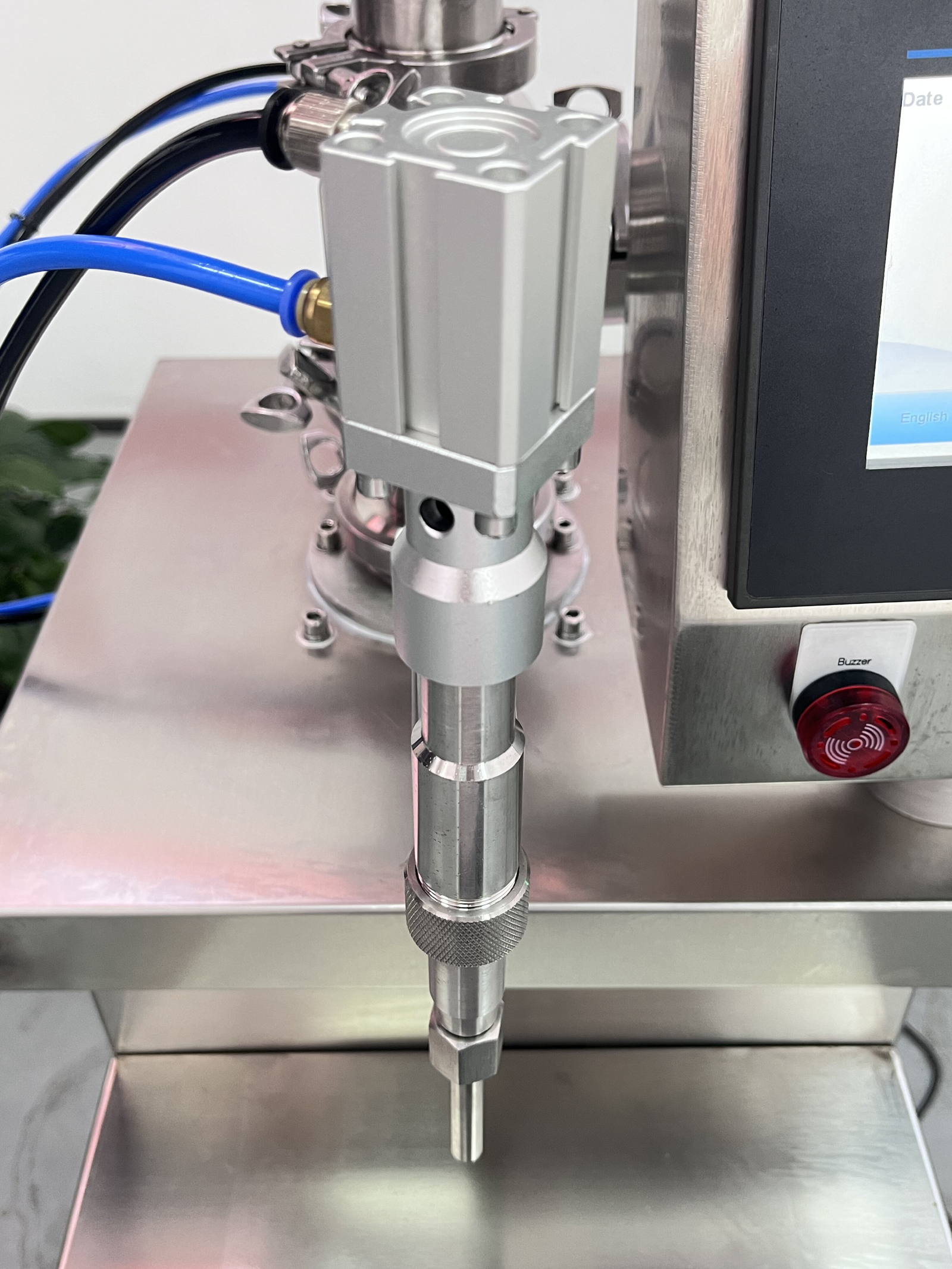

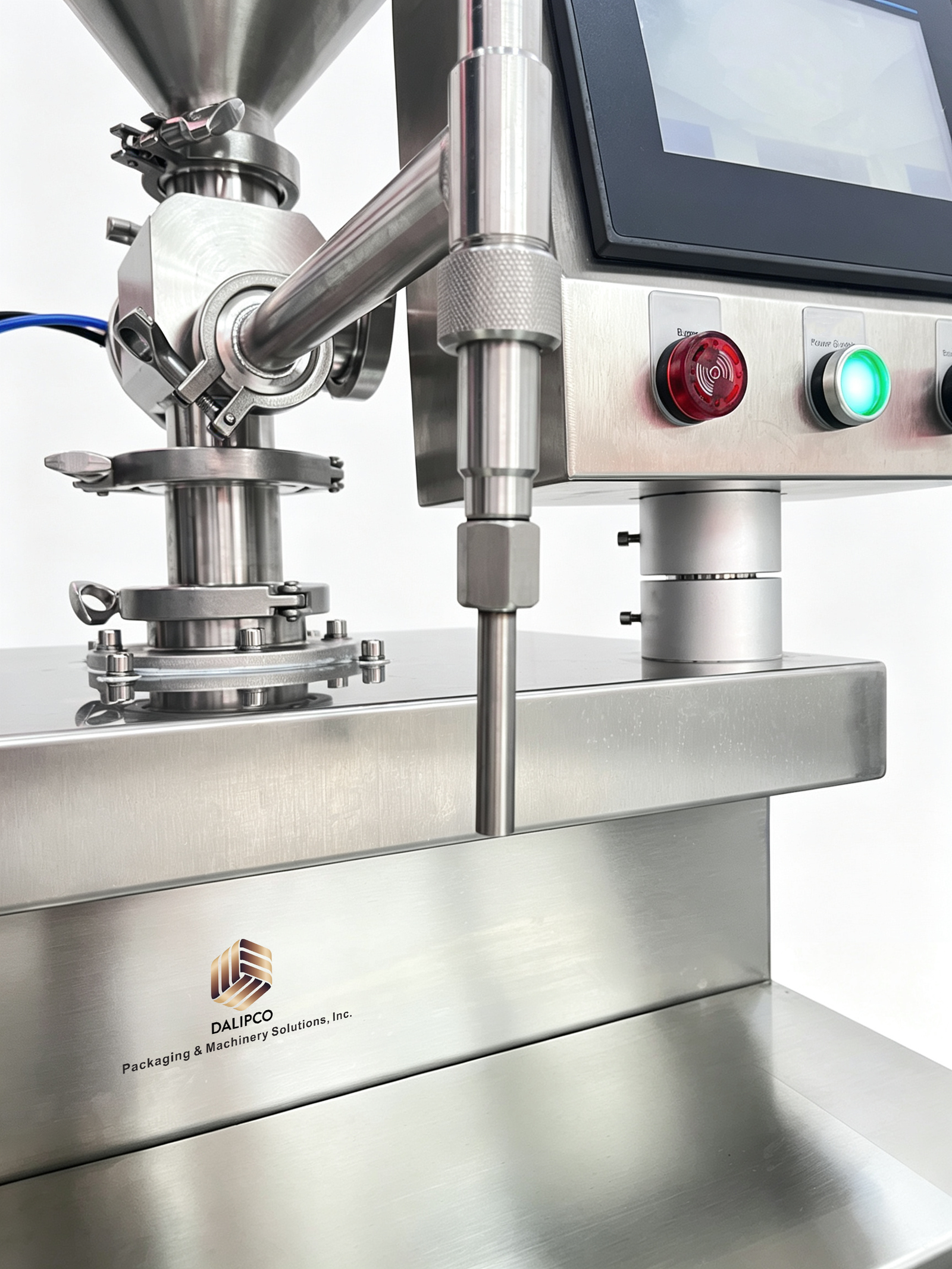

Precision filling nozzle delivers steady and even material outflow. Its specifications can be adjusted according to bottle caliber and filling volume. It effectively prevents dripping, cuts off material cleanly after filling without staining bottle mouths, ensuring sanitary filling.

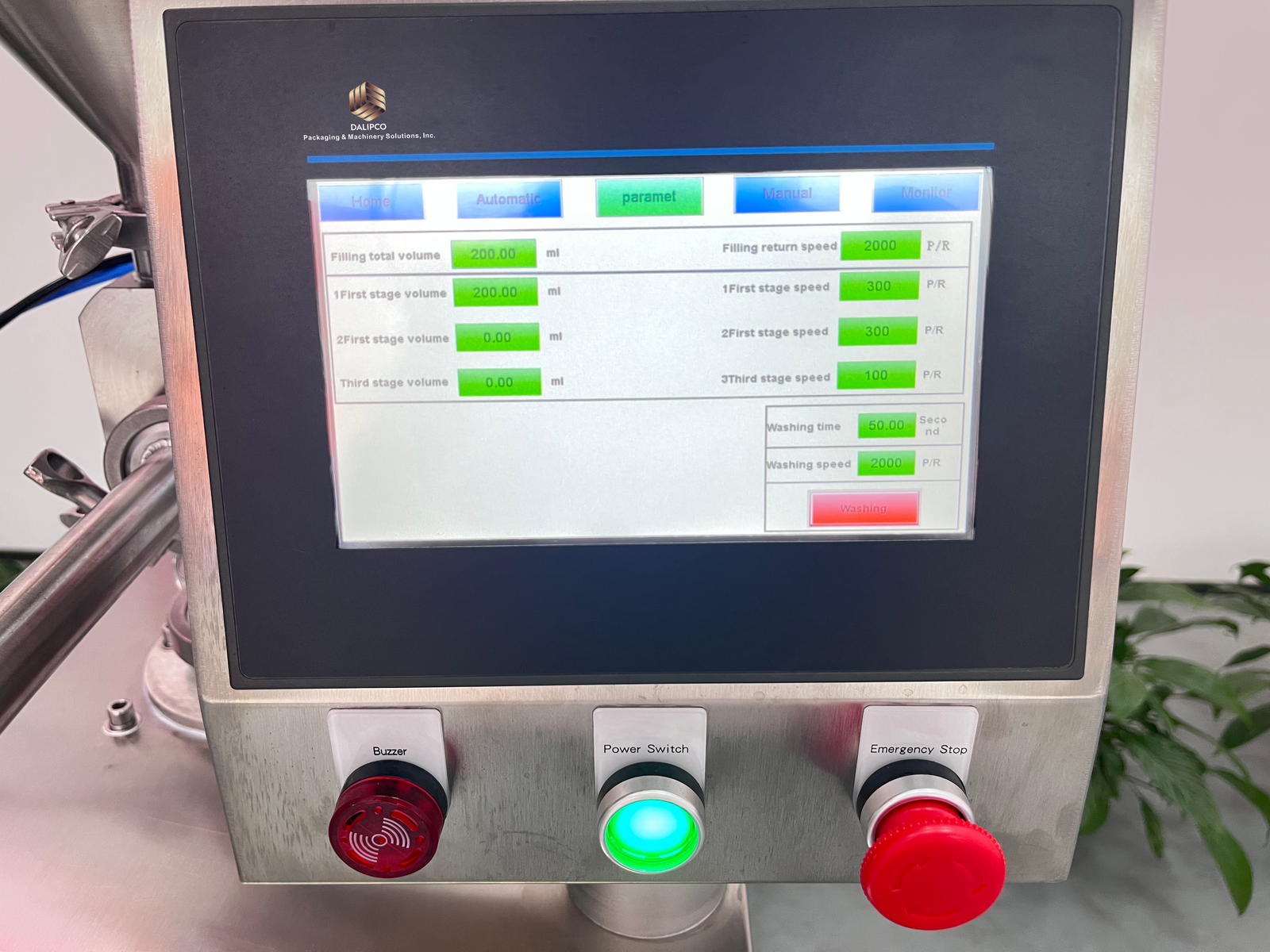

High-definition touch HMI with visual parameter adjustment. Filling volume and operating speed can be set with one tap, user-friendly for operators. Physical start/stop and emergency stop buttons are equipped for immediate shutdown in emergencies to guarantee production safety.
Food-grade quick-clamp pipe connectors enable easy daily internal cleaning and sterilization. The pipeline joints feature excellent tightness with zero leakage and no material residue, complying with hygiene standards for cosmetic and pharmaceutical production.

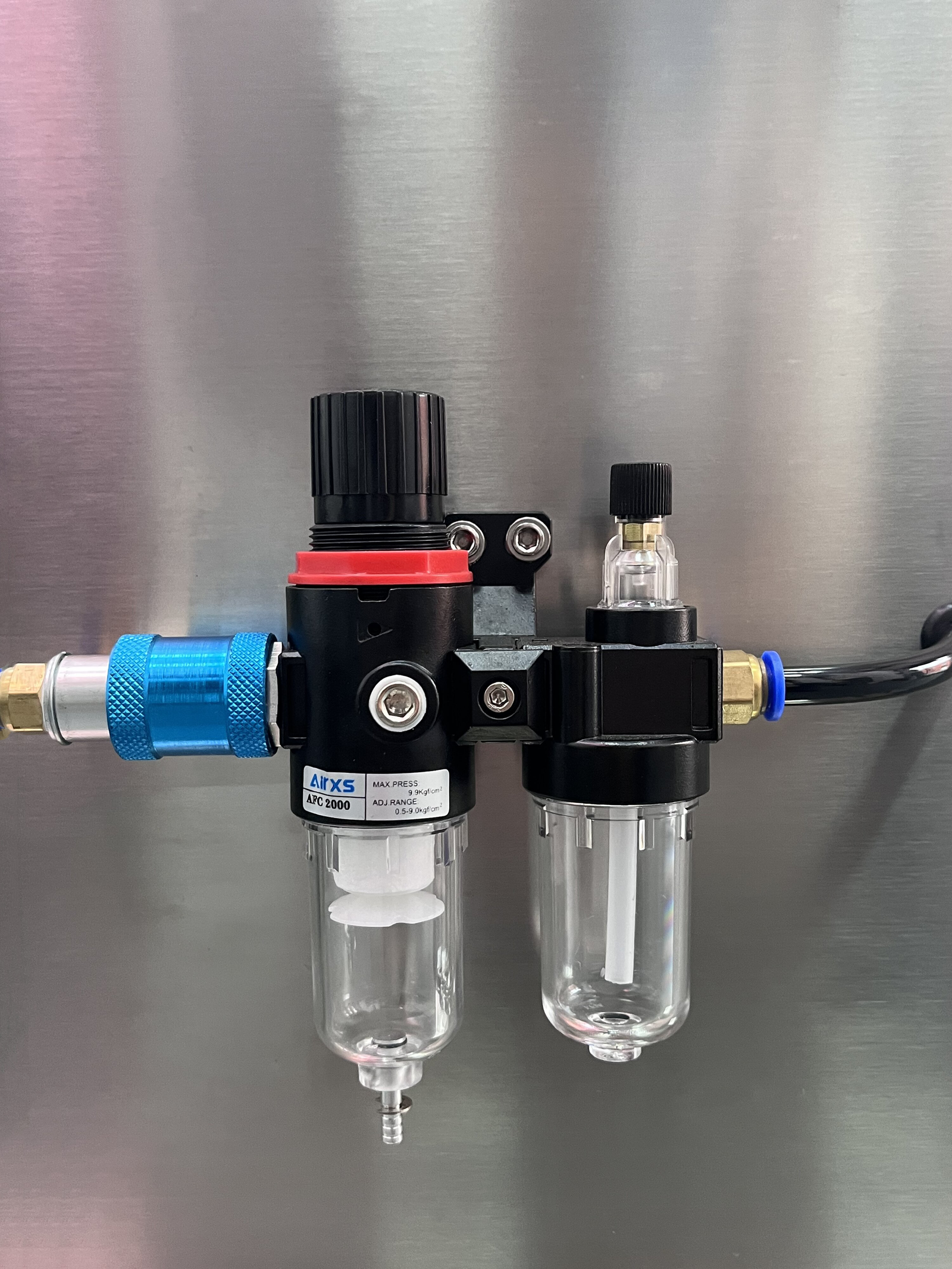

ir filter pressure regulator removes moisture and impurities from compressed air, supplying clean air to protect internal pneumatic and servo components. Air pressure is adjustable to stabilize machine operation and extend service life.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
