● Vacuum Equal Liquid Level Filling Adopts vacuum constant-level filling technology to eliminate errors caused by glass bottle tolerance, ensuring uniform liquid level for every bottle and enhancing overall product…
Vacuum Equal Liquid Level Filling
Adopts vacuum constant-level filling technology to eliminate errors caused by glass bottle tolerance, ensuring uniform liquid level for every bottle and enhancing overall product consistency and premium appearance.
Pneumatic Driven
Fully pneumatic driven with no motor or electric spark, featuring explosion-proof safety. Suitable for volatile and low-viscosity liquids such as perfume and essential oils, complying with industry safety standards.

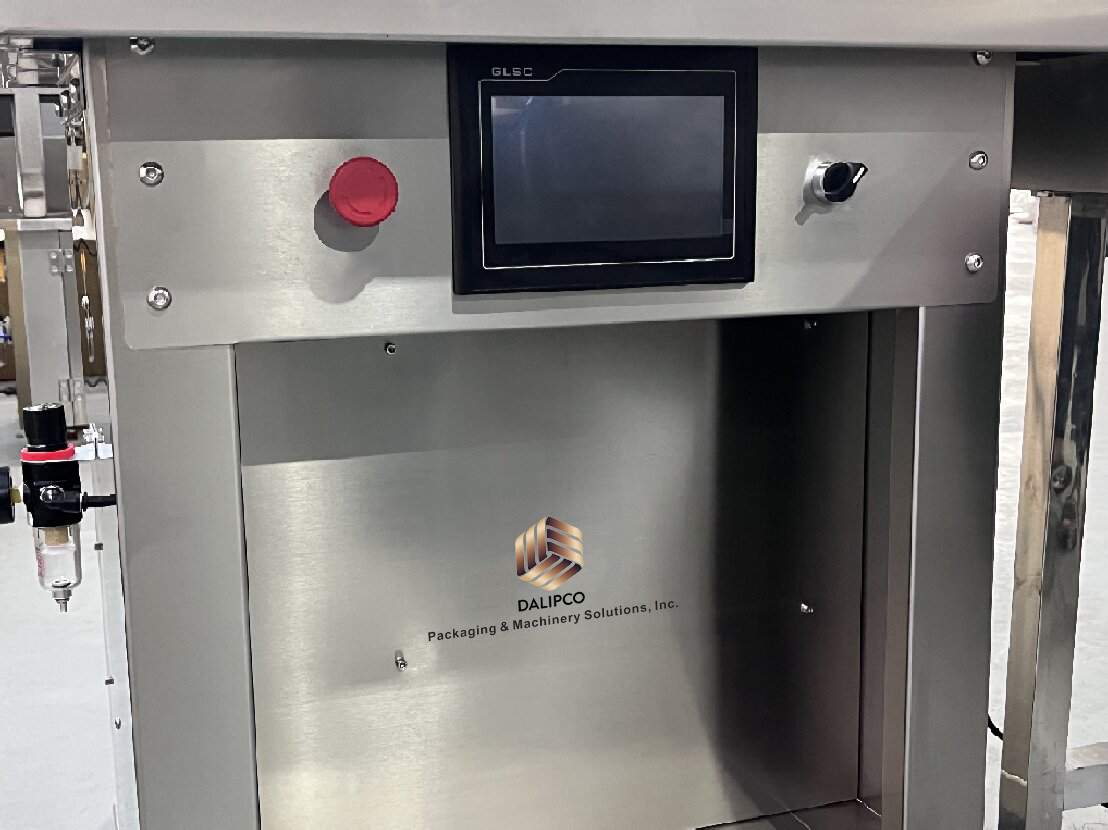

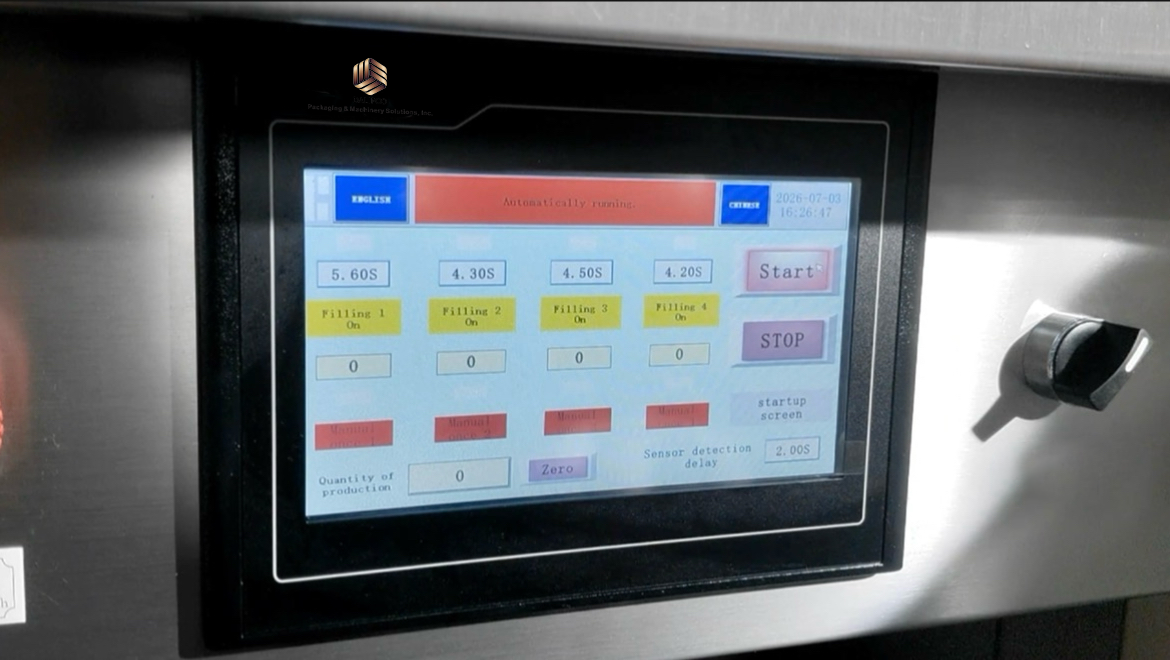

PLC Control
Adopts PLC automatic control system, featuring simple operation and convenient parameter adjustment.
Wide Bottle Compatibility
It can be debugged according to container sizes to match optimal filling speed and performance, delivering high practicality and stable filling results.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Effective Capacity | 5L | 10L | 20L |
| Material | All product contact part are made of Stainless Steel 316L |
| Tank Design | Three layers, double jackets |
| Heating Methods | Eelctric heating |
| Electric Heating Power | 1KW | 3KW | 3KW |
| Mixing Design | Double way no-dead-angle mixing paddle with Teflon sraper |
| Mixing Power | 0.4KW | 0.55KW | 0.55KW |
| Mixing Speed | 0-63rpm, customizable |
| Mixing Motor | ABB or SIEMENS |
| Homogenizer Design | High shear teeth-shape homogenizer |
| Homogenizer Position | Bottom/upper/inline homogenizer+rotary pump circulation type |
| Homogenizer Power | 1.5KW | 1.5KW | 2.2KW |
| Homogenizer Speed | 0-2960rpm, customizable |
| Homogenizer Motor | ABB or SIEMENS |
| Vacuum Pressure | -0.1Mpa |
| Cover Type | Hydraulic lifting cover |
| Tank Titling | More than 90 degree tank body titling |
| Control Way | SIEMENS PLC control system and touch screen/push button |
| Application | Perfume, Toning lotion, Floral water |
| Productivity | 10-40bot/min |
| Filling volume | 5-1000ml |
| Filling accuracy | ± 0.1% |
| Filling nozzle | 4 |
| Driven type | Pneumatic |
| Applicable bottle height | No restriction, customizable |
| Applicable bottle diameter | No restriction, customizable |
| Supply voltage | 3/N AC 220v |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Application Perfume, Toning lotion, Floral water Productivity 10-40bot/min Filling volume 5-1000ml Filling accuracy ± 0.1% Filling nozzle 4 Driven type Pneumatic Applicable bottle height No restriction, customizable Applicable bottle diameter No restriction, customizable Supply voltage 3/N AC 220v
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
