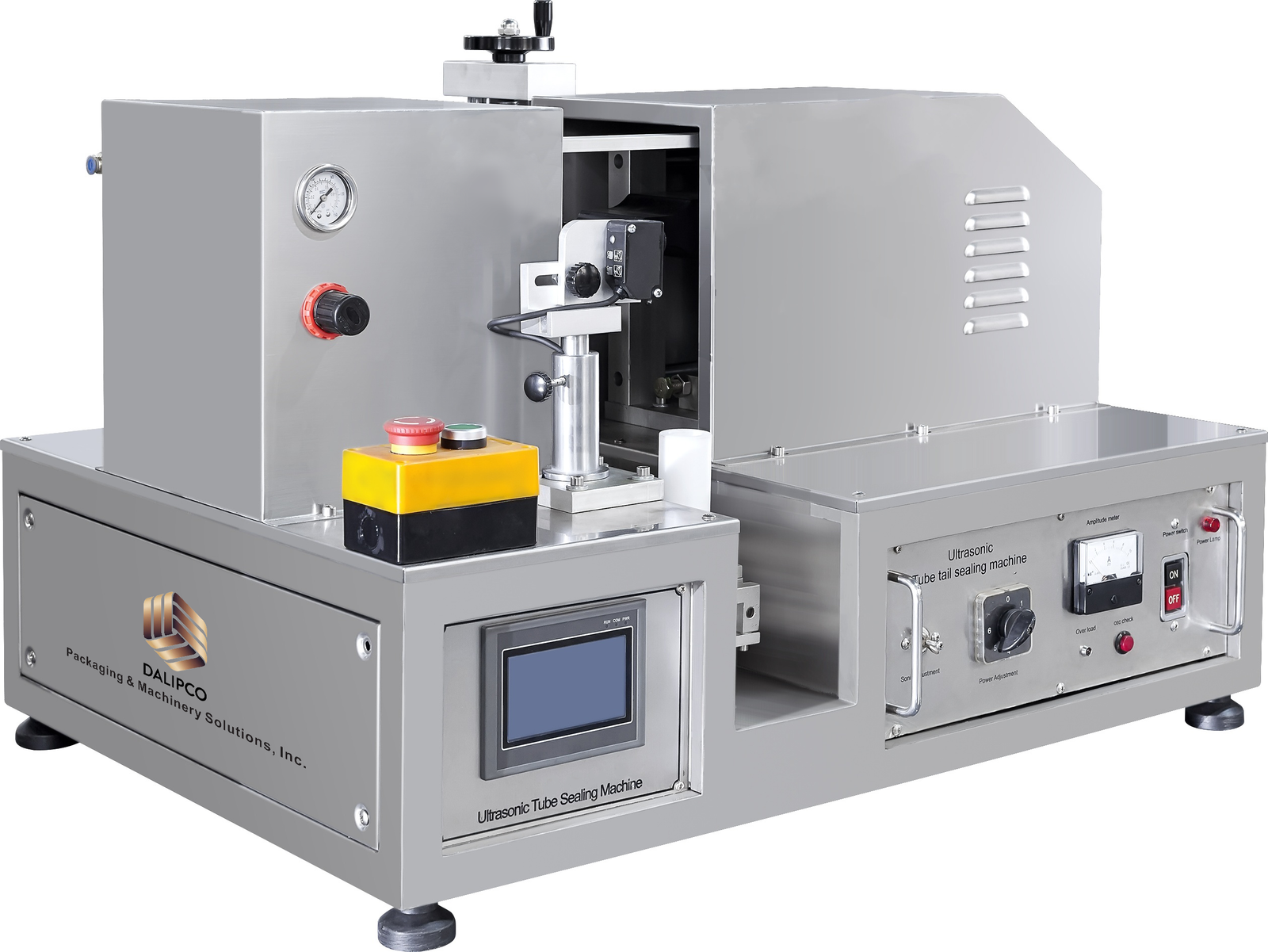

Advantages of Single Station Tabletop Ultrasonic Tube Sealing Machine ● High - Efficiency Sealing Fast Speed: Seals 6-10 tubes per minute, about 8 for standard plastic cosmetic tubes.
High - Efficiency Sealing
Energy - Saving
Versatile Compatibility
Great Seal Quality
User - Friendly
Reliable & Durable
Seals 6-10 tubes per minute, about 8 for standard plastic cosmetic tubes. This boosts production efficiency, helping meet tight schedules.
Runs continuously with little maintenance downtime, vital for small - to medium - scale production.
Consumes much less than traditional heat - sealing. Ultrasonic energy is used briefly, cutting electricity costs and being eco - friendly.
Handles plastics (PE, PP), laminate (aluminum - plastic), and some soft - walled metal - plastic tubes. One machine suits different product lines.
Seals tubes with diameters and heights, offering flexibility in production.
Creates a clean, uniform, and reliable seal. Strong molecular bonds prevent leaks, crucial for pharma and food.
No burnt or uneven edges like traditional methods. The neat seals enhance product appearance and marketability.
Has an easy - to - use man - machine interface. Operators can quickly learn to adjust sealing time, pressure, etc., reducing training needs.
Automatic color - mark tube orientation for accurate sealing and printing. Tube - tail cutting trims neatly, saving labor.
Uses advanced circuitry and well - known ultrasound parts for stable long - term performance.
Sturdy frame and components protect against vibrations and impacts, ensuring a long service life.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Sealing Type | Semi Automatic Ultrasound Sealing Type |
| Filling Volume | 6-60ml / 10-120ml / 25-250ml / 50-500ml, customizable |
| Filling Speed | 6-10tubes/min |
| Filling Accuracy | ±1% |
| Tube Diameter | 13-50mm |
| Tube Height | 50-210mm |
| Working Air Pressure | 0.5Mpa |
| Power | 2.6KW |
| Voltage | AC110V or AC220V single phase |
| Dimension(L*W*H) | 850*630*780mm |
| Net Weight | 75Kg |
Detailed inspection of verified station components, drives, and sanitation assemblies.
The positioning device is vital in semi - automatic ultrasonic tube sealing machines. High - precision sensors quickly detect color marks on tubes, converting their position info into electrical signals for the control system. The system calculates the tube's position deviation from the preset sealing point, and a motor - driven structure adjusts the tube to align the mark with the sealing area. This device offers precise positioning, consistent sealing quality, and adapts to various production needs. It has high sensitivity, accuracy, is easy and flexible to operate, and is highly stable. It's key for boosting production efficiency and product quality.
The rigid oxidation mould and smooth tail closure are key features. The former creates a hard, corrosion - resistant oxide layer on the product surface through oxidation. This significantly improves wear resistance and extends product lifespan. The smooth tail closure ensures a tight seal, keeping out dust and moisture, thus protecting the product's interior. Together, they enhance product performance and durability, making them ideal for various high - quality manufacturing applications.
