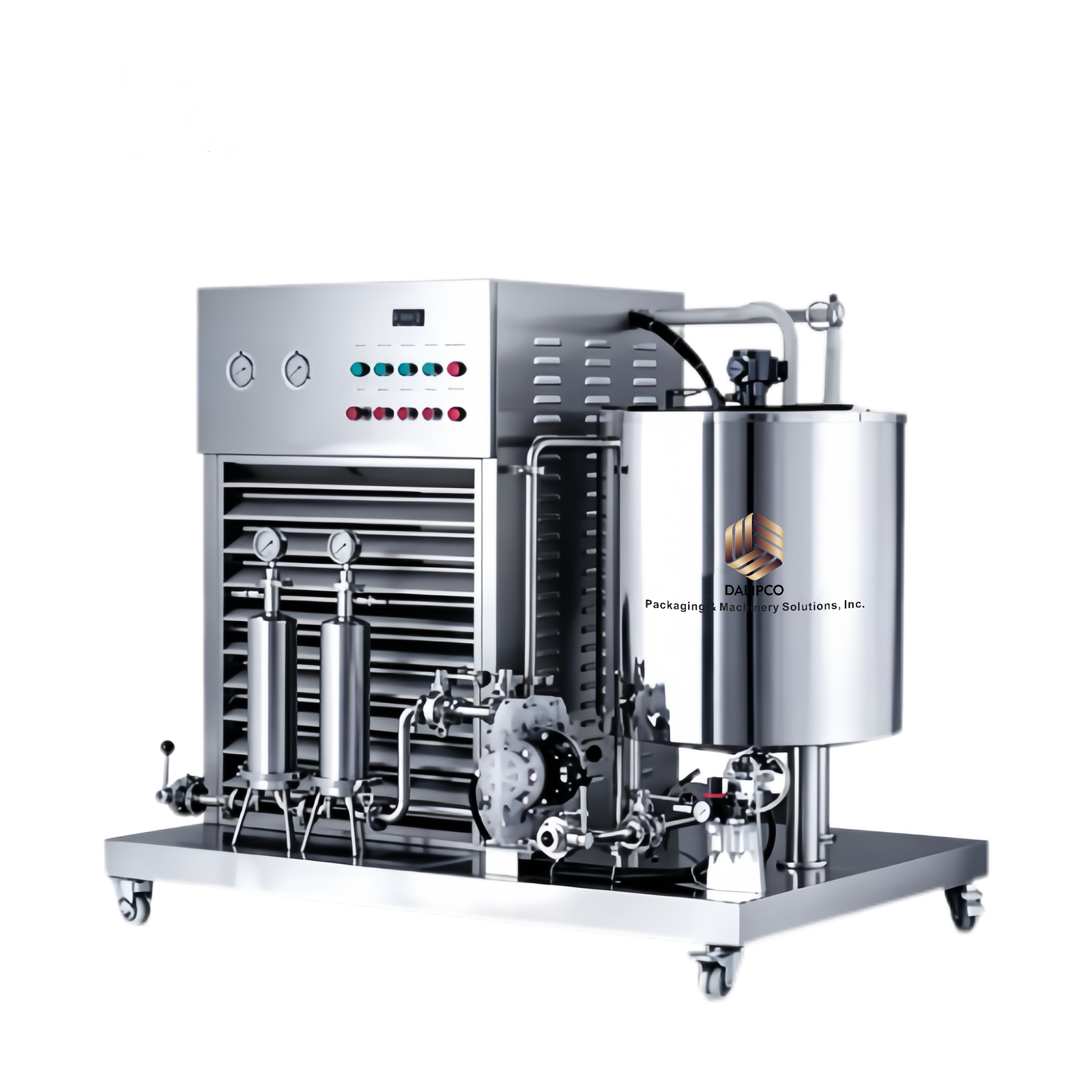

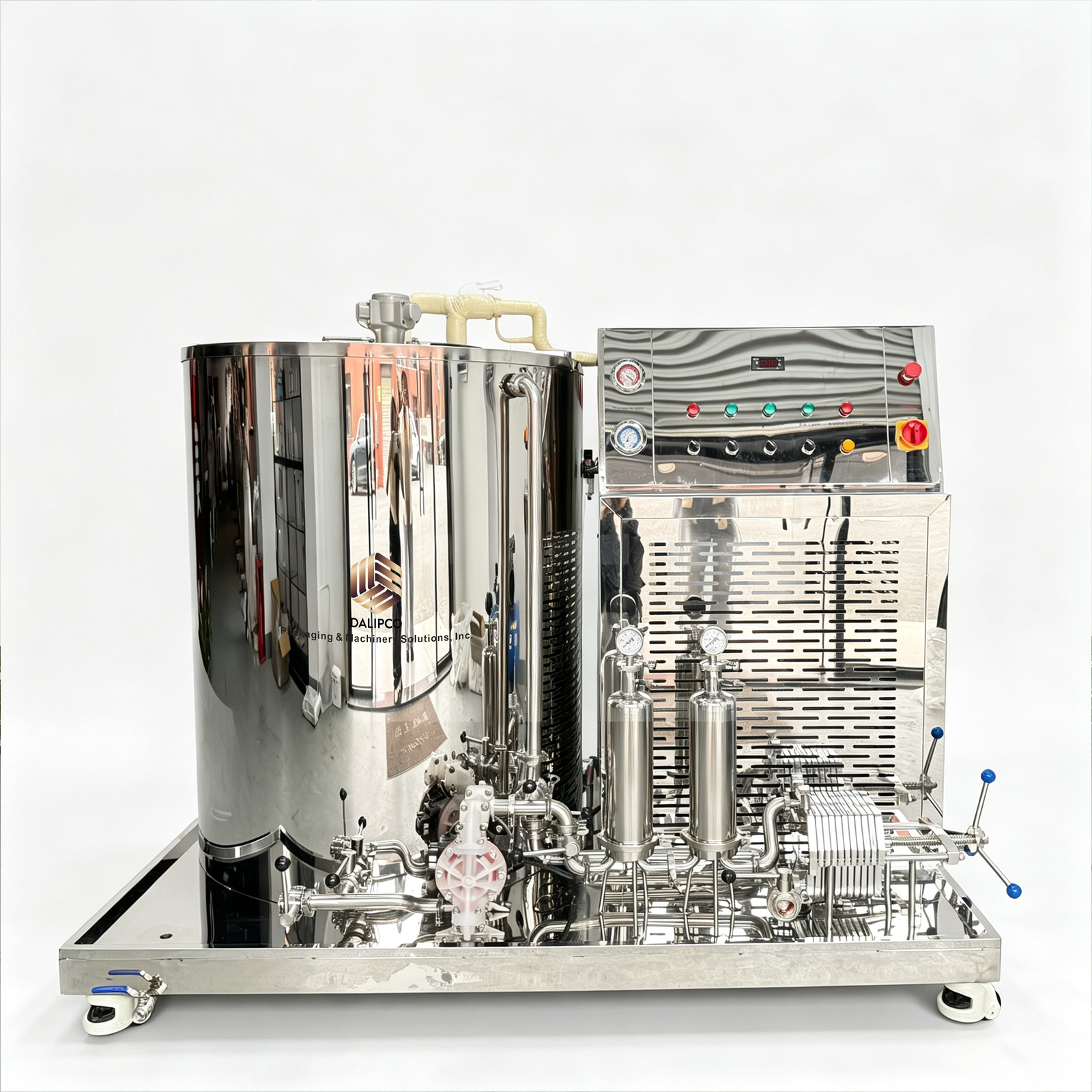

This is an integrated production unit dedicated to perfume manufacturing, which integrates stirring & mixing, low‑temperature cooling and precision filtration functions.

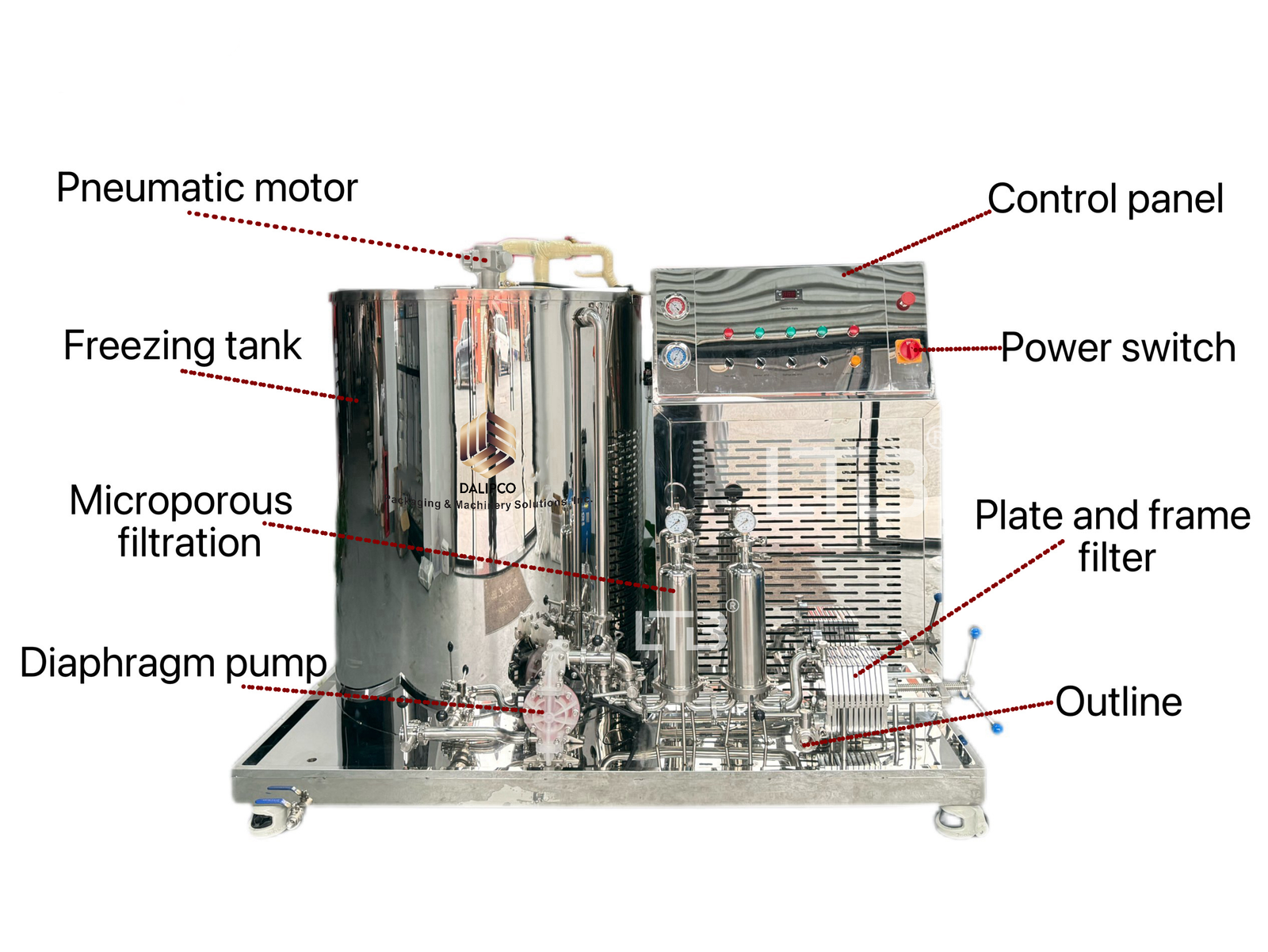

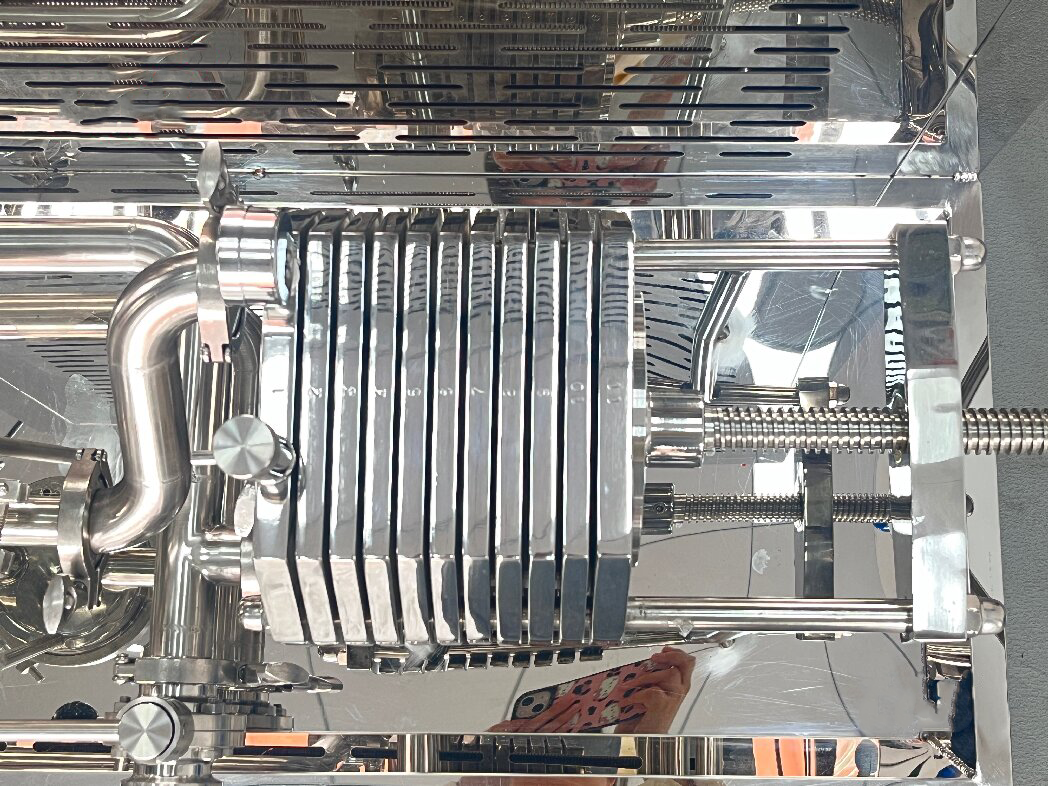

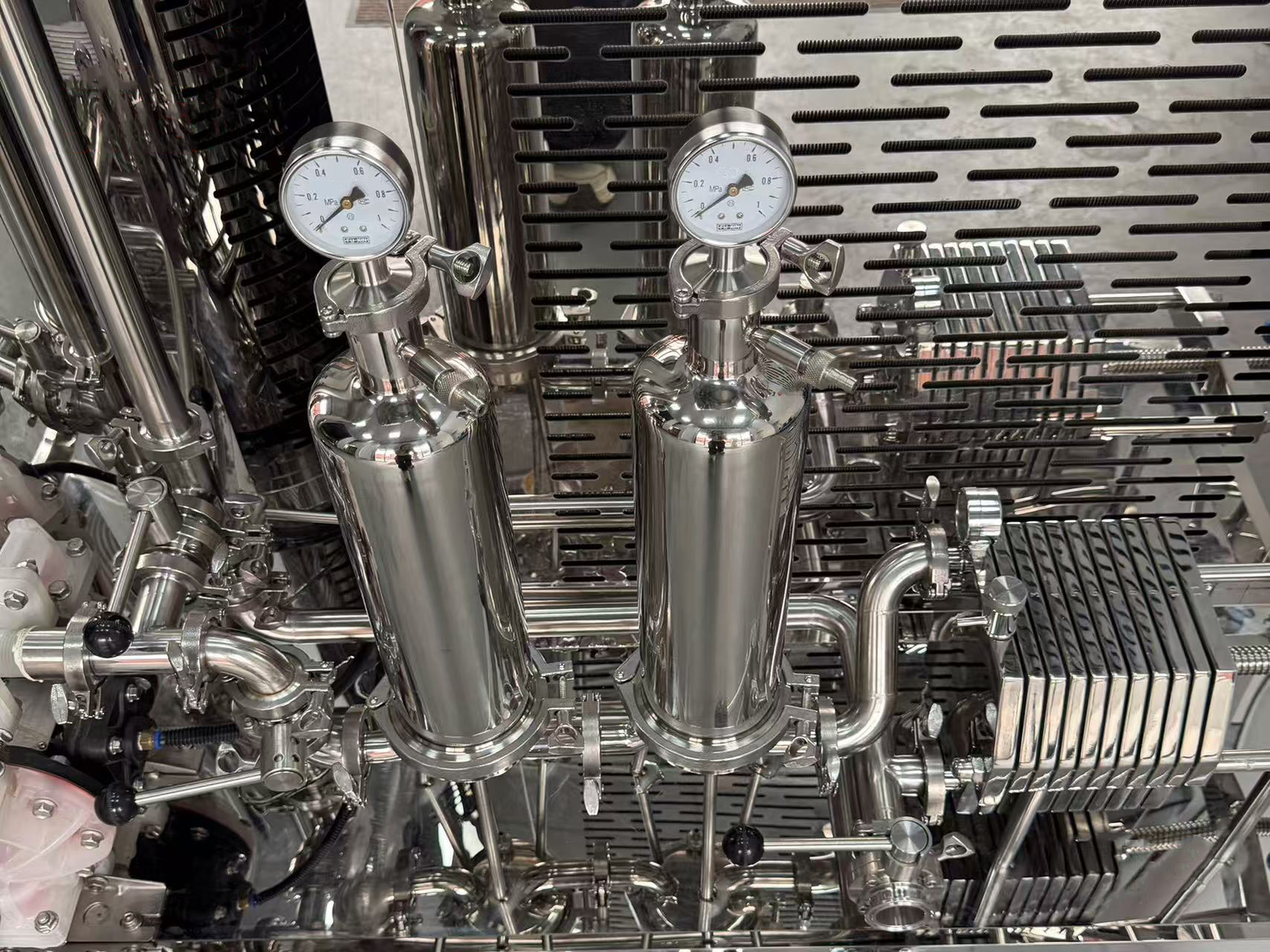

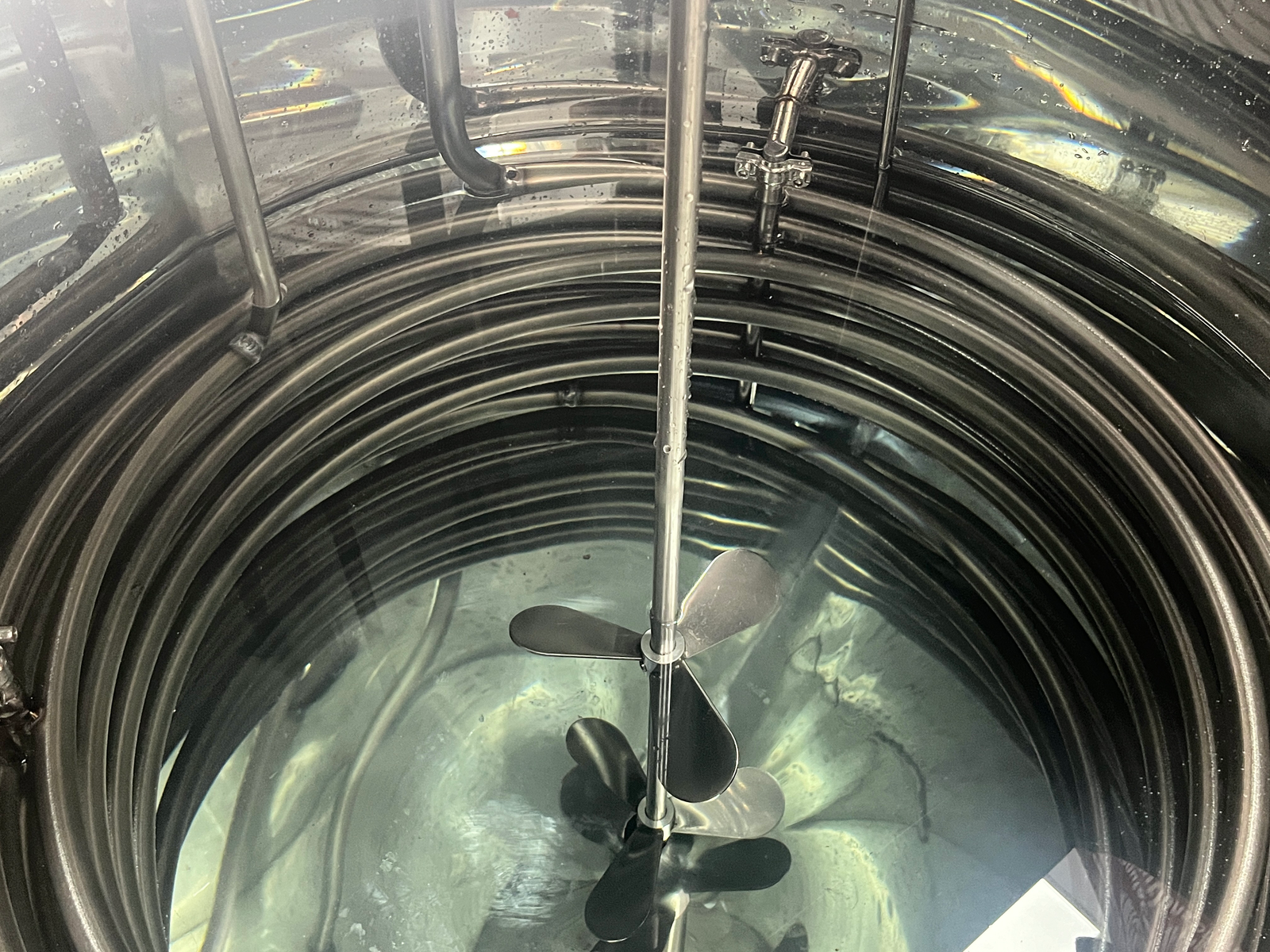

This is an integrated production unit dedicated to perfume manufacturing, which integrates stirring & mixing, low‑temperature cooling and precision filtration functions. It consists of a cooling reactor, plate‑and‑frame filter, microfiltration system, pneumatic diaphragm pump and electric control panel, driven by a pneumatic motor with a supporting control system, specially designed for the production process of alcohol‑based perfume.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Model | 3p | 5p | 10p |
| Capacity | 200L | 500L | 1000L |
| Material | All product contact part are made of Stainless Steel 316L |
| Power | 2.2KW | 7.5KW | 11KW |
| Air source pressure | 0.5-0.6Mpa |
| Filter pressure | 0.2Mpa |
| Refrigeration temperature | -5℃- -15℃ |
| Level 1 filter | 1.0μm |
| Level 2 filter | 0.2μm |
| Voltage | 380V/50HZ |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Model 3p 5p 10p Capacity 200L 500L 1000L Material All product contact part are made of Stainless Steel 316L Power 2.2KW 7.5KW 11KW Air source pressure 0.5-0.6Mpa Filter pressure 0.2Mpa Refrigeration temperature -5℃- -15℃ Level 1 filter 1.0μm Level 2 filter 0.2μm Voltage 380V/50HZ
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
