This high-efficiency stainless steel syrup mixer is a key unit for syrup production lines with excellent mixing precision.
This high-efficiency stainless steel syrup mixer is a key unit for syrup production lines with excellent mixing precision. Developed for large-scale food-grade production, it is mainly used for blending and processing liquid materials such as syrup, caramel, sugar water and high-fructose corn syrup. It ensures even mixing of all ingredients and avoids uneven blending and local caking, delivering finished products that meet stringent quality standards of the food industry.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Effective Capacity | 100L | 300L | 500L | 1000L |
| Material | All product contact part are made of Stainless Steel 316L |
| Tank Design | Three layers, double jackets |
| Heating Methods | Eelctric heating |
| Electric Heating Power | 9KW | 18KW | 27KW | 36KW |

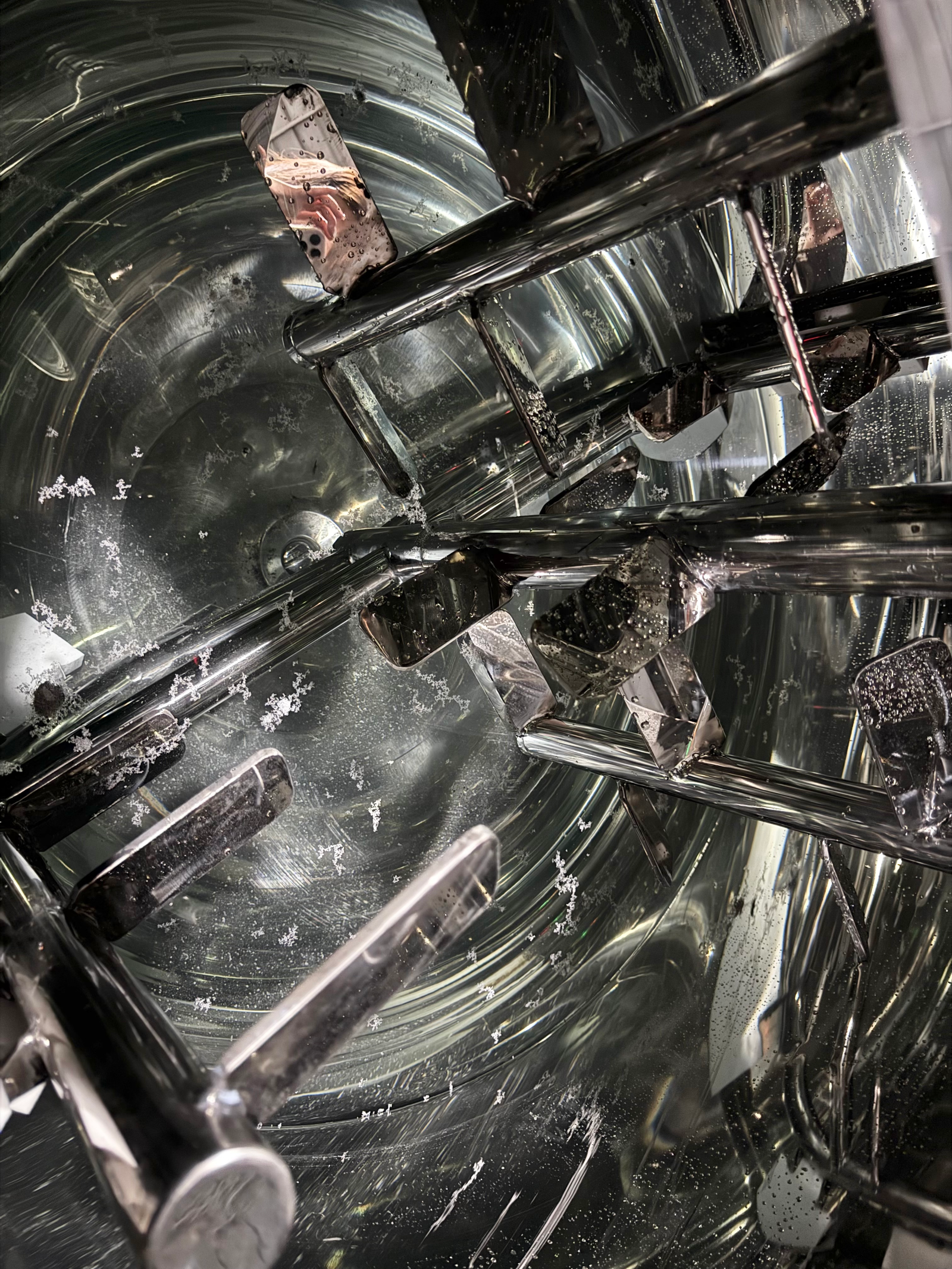

| Mixing Design | No-dead-angle mixing paddle with Teflon sraper |
| Mixing Power | 1.1KW | 2.2KW | 3KW | 5.5KW |
| Mixing Speed | 0-63rpm, customizable |
| Mixing Motor | ABB or SIEMENS |
| Homogenizer Design | High shear teeth-shape homogenizer |
| Homogenizer Position | Bottom homogenizer |
| Homogenizer Power | 4KW | 5.5KW | 7.5KW | 11KW |
| Homogenizer Speed | 0-2960rpm, customizable |
| Homogenizer Motor | ABB or SIEMENS |
| Homogenizer Design | High speed homogenizer with good rolling and shearing effect |
| Cover Type | Half-open cover |
| Control Way | SIEMENS PLC control system and touch screen/push button |
| Customization | Weighing load cell/Electric lifting platform/Water flow meter/Water chiller/CIP system/Pump circulation/Vacuum |

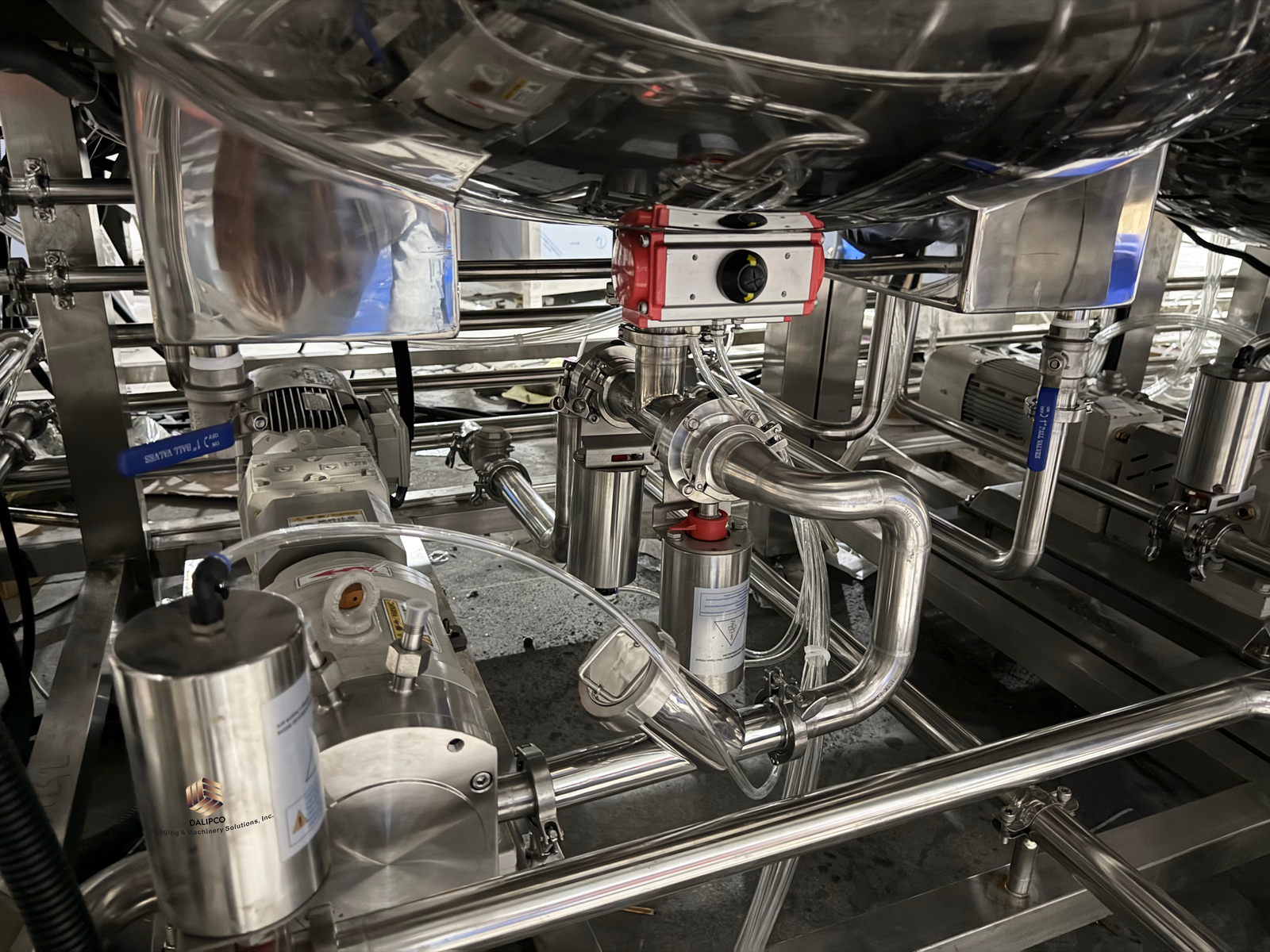

Detailed inspection of verified station components, drives, and sanitation assemblies.
Effective Capacity 100L 300L 500L 1000L Material All product contact part are made of Stainless Steel 316L Tank Design Three layers, double jackets Heating Methods Eelctric heating Electric Heating Power 9KW 18KW 27KW 36KW Mixing Design No-dead-angle mixing paddle with Teflon sraper Mixing Power 1.1KW 2.2KW 3KW 5.5KW Mixing Speed 0-63rpm, customizable Mixing Motor ABB or SIEMENS Homogenizer Design High shear teeth-shape homogenizer Homogenizer Position Bottom homogenizer Homogenizer Power 4KW 5.5KW 7.5KW 11KW Homogenizer Speed 0-2960rpm, customizable Homogenizer Motor ABB or SIEMENS Homogenizer Design High speed homogenizer with good rolling and shearing effect Cover Type Half-open cover Control Way SIEMENS PLC control system and touch screen/push button Customization Weighing load cell/Electric lifting platform/Water flow meter/Water chiller/CIP system/Pump circulation/Vacuum
