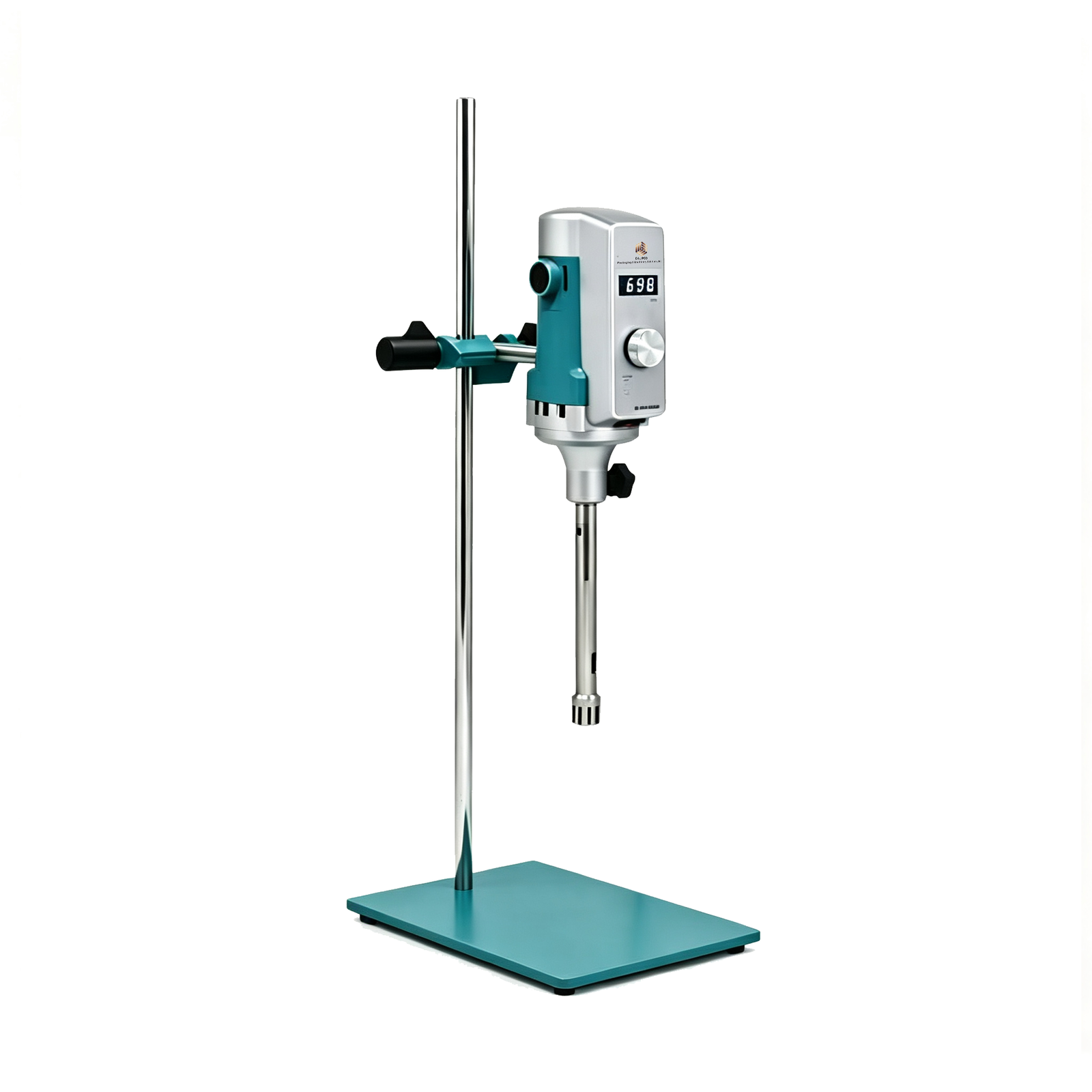

● Powerful Homogenizing & Mixing Performance This laboratory homogenizer is driven by a high-performance motor with sufficient torque output.
Powerful Homogenizing & Mixing Performance
This laboratory homogenizer is driven by a high-performance motor with sufficient torque output. The 316 stainless steel rotor-stator working head creates strong fluid shear and turbulence inside the sample liquid, realizing rapid emulsification, dispersion and particle crushing. For small-volume lab samples, complete homogenization can be finished in a short time to greatly improve experiment efficiency.
High-Quality Fine Homogenization Function
Equipped with professional high-shear homogenizing structure, it evenly breaks solid particles, oil phase and water phase in cosmetics, pharmaceutical reagents, biological samples, food additives and chemical slurries. It effectively reduces material particle size for finer and more stable texture, ensuring repeatable and reliable lab formulation test results.
Precise Adjustable Speed Control
It adopts a rotary dial for 6-speed graded speed regulation, with a wide no-load speed range of 13000–34000 rpm. Rotational speed can be freely preset according to material viscosity and process requirements. Built-in restart protection and automatic safety shutdown functions prevent overload damage, stabilize operation status and guarantee test safety and consistency.
Sturdy and Durable Build
The working head directly contacting samples is made of corrosion-resistant SS316 stainless steel, which resists acid, alkali and various chemical solvents. The thickened stainless steel support stand is stable and anti-shaking during high-speed operation. Key components have long service life, lowering later replacement and maintenance costs.
Flexible & Versatile Design
Supporting multiple interchangeable specifications of homogenizing probes (8/10/12/18/24G), it can handle micro trace samples to medium-volume lab trials. The adjustable lifting bracket allows free up-and-down positioning to fit different beakers, flasks and reaction vessels, perfectly matching diversified laboratory R&D and formula debugging demands.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Head Specifications | 12(G) | 18(G) | 24(G) | 30(G) | 36(G) |
| Handle Capacity(ml) | 30-800 | 50-1500 | 80-5000 | 100-8000 | 150-13000 |
| Viscosity (Max)mPa.s | 5000 |
| Rotor LinearVelocity(Max)m/s | 12 | 15 | 18 | 22 | 26 |
| Stator Diameter(mm) | 12 | 18 | 24 | 30 | 36 |
| Head Length(mm) | 215 | 242 | 245 | 255 | 258 |
| Max ＆ Min Liquid Immersion Height(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
Detailed inspection of verified station components, drives, and sanitation assemblies.

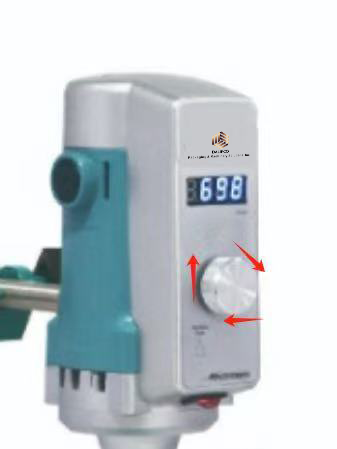

This laboratory homogenizer adopts a speed regulating dial for 6-level gear speed control, which is easy to operate and enables smooth gear shifting. Its no-load speed is adjustable from 13000 rpm to 34000 rpm, offering a wide speed range to accommodate homogenization processing of materials with various viscosities.
It's equipped with restart protection and safety shutdown functions to guarantee safe operation under all speed levels. Supported by stable torque output, maintains reliable high-shear homogenizing performance at both low and high rotating speeds.

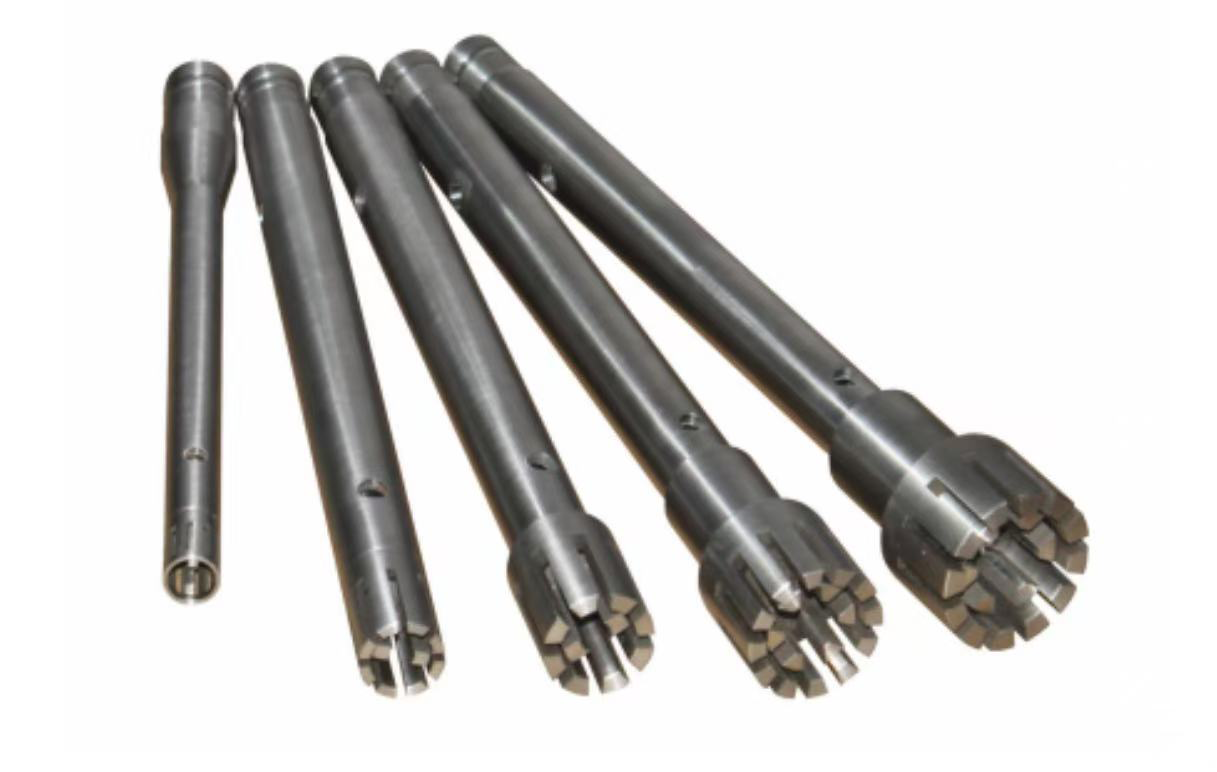

The replaceable homogenizing heads of various sizes can flexibly adapt to different processing volumes and material viscosities, adjust homogenization fineness, avoid cross-contamination between samples, reduce machine load to extend the service life of the main unit, and cut procurement and maintenance costs.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
