Introduction to Automatic Ultrasonic Filling and Sealing Machine In the fast - evolving packaging technology landscape, our Automatic Ultrasonic Filling and Sealing Machine serves the pharmaceutical, cosmetics, and food…

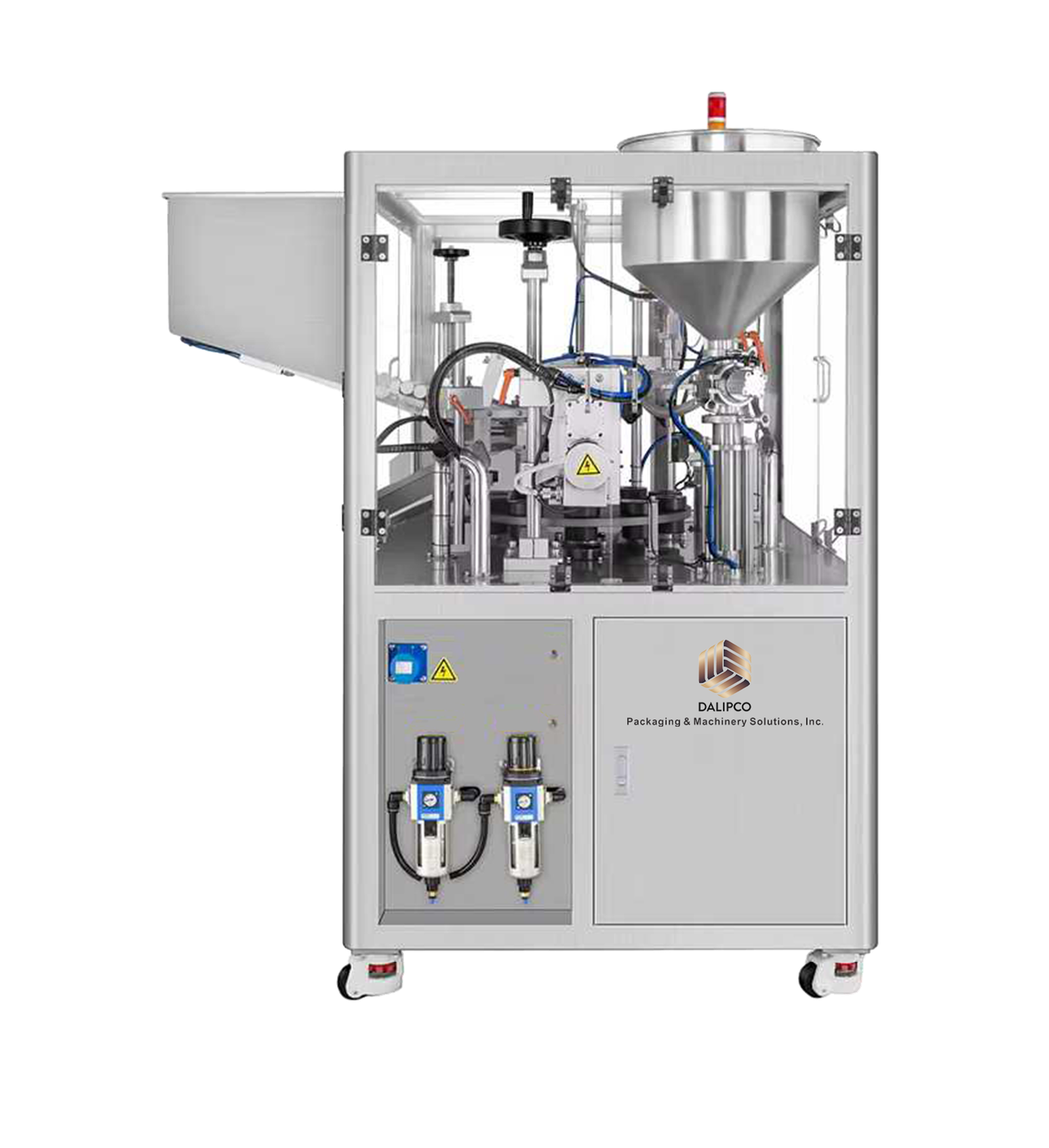

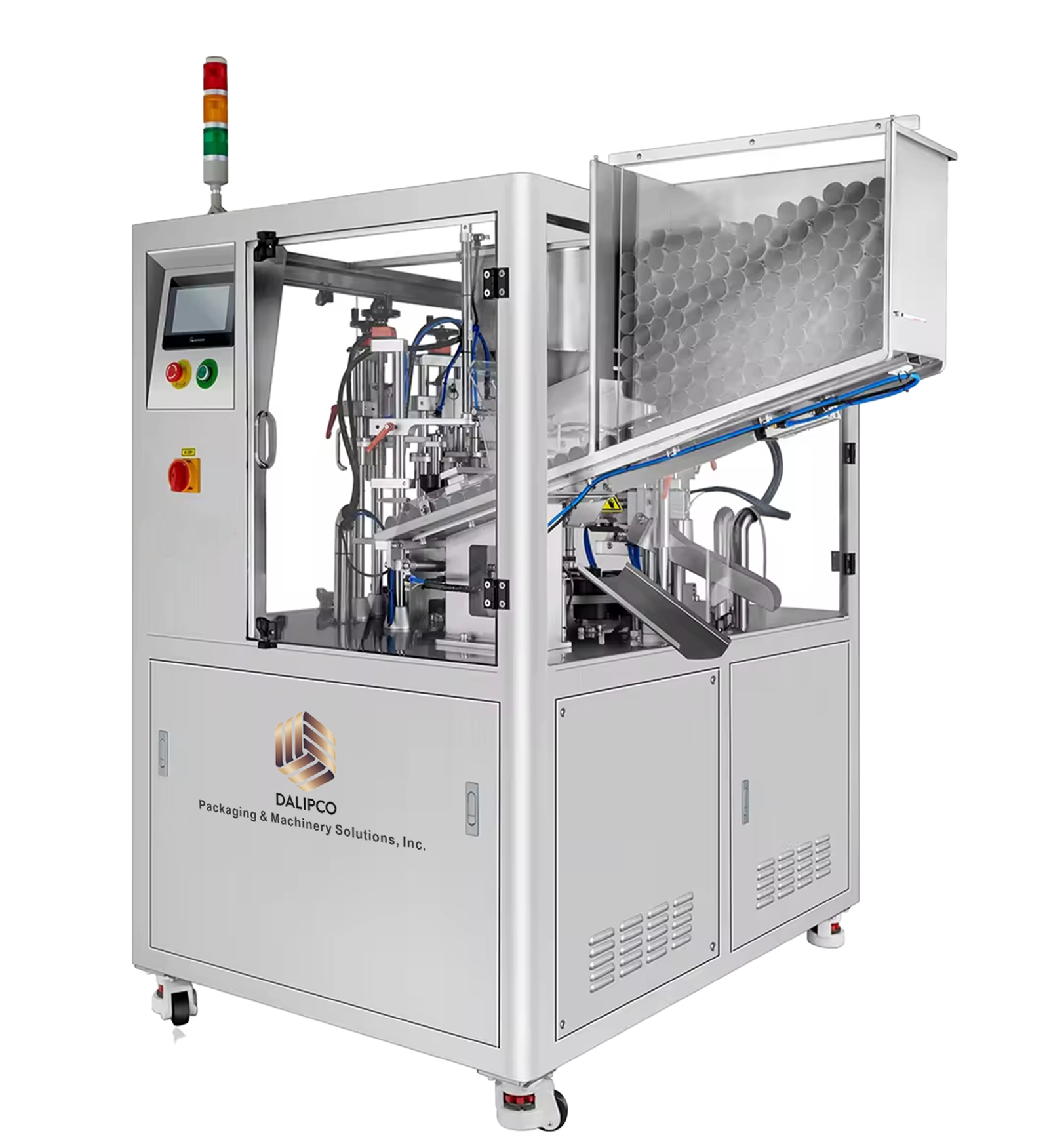

Introduction to Automatic Ultrasonic Filling and Sealing Machine
In the fast - evolving packaging technology landscape, our Automatic Ultrasonic Filling and Sealing Machine serves the pharmaceutical, cosmetics, and food sectors with advanced tech.
Key Functions & Workflow
The machine automates tube loading, label alignment, filling, ultrasonic sealing, coding, tail cutting, and product discharge. Its streamlined operations ensure high - efficiency production.
Ultrasonic Sealing
Ultrasonic vibrations fuse tube materials, creating a firm and neat seal. This method offers better tightness and appearance than traditional sealing.
Optional Add - ons

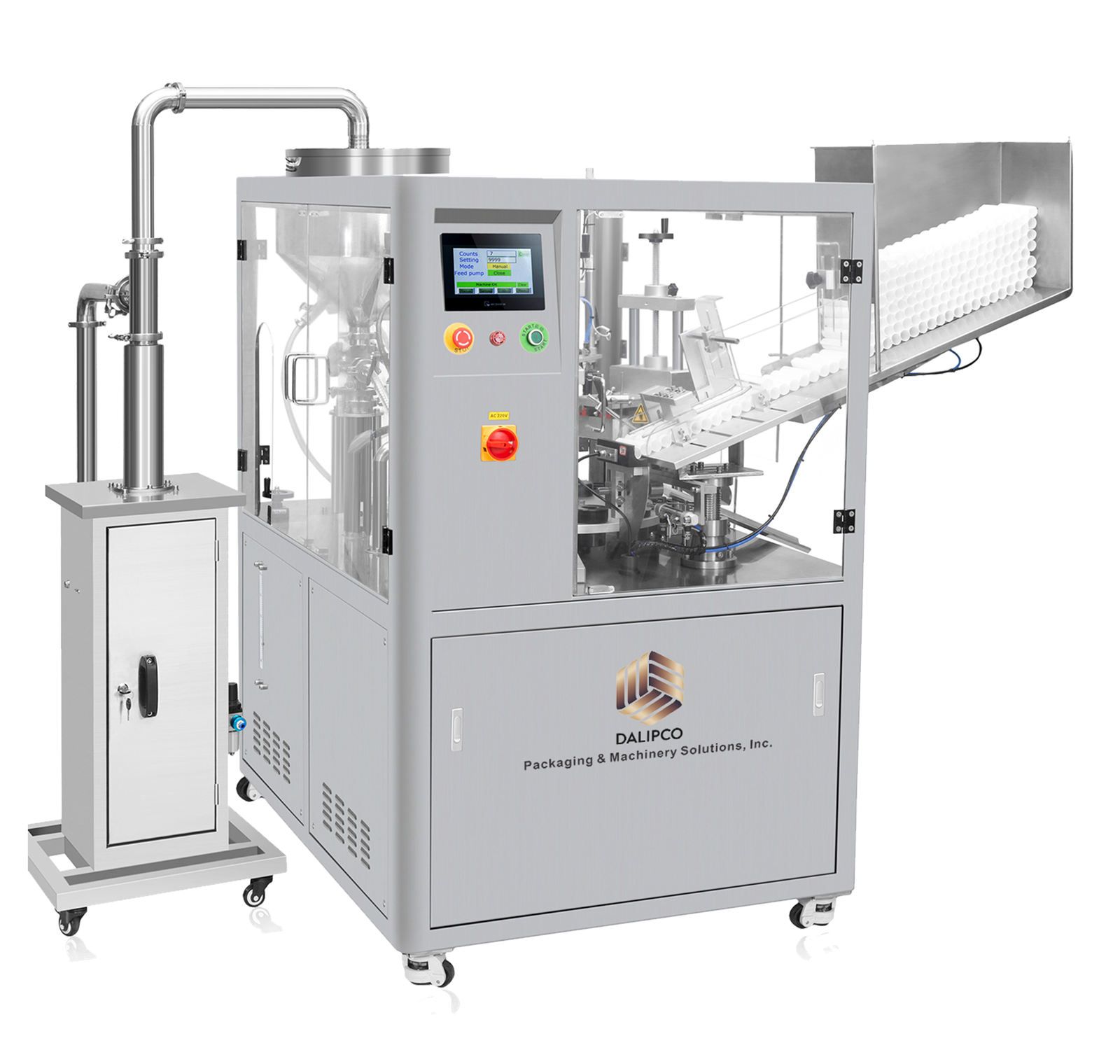

Automatic Material Feeder
An automatic material feeder continuously supplies raw materials. Ideal for large - scale production, it boosts efficiency and cuts labor costs.
Heating & Stirring Filler
For pasty or viscous substances, the heating and stirring filler heats and stirs materials. This ensures smooth filling and product consistency.
Air - Blowing Cleaner
After processing, the air - blowing cleaner removes tube surface residues, improving product appearance and maintaining a hygienic environment.
Wide Industry Use
The machine suits multiple industries. It works with plastic, composite, and aluminum - plastic tubes, accurately filling creams, ointments, toothpastes, etc.
Overall, with its advanced features, flexible options, and broad application, this machine leads the packaging tech field, optimizing packaging processes for global businesses.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Sealing Type | Automatic Ultrasound Filling Sealing Type |
| Filling Volume | 6-60ml / 10-120ml / 25-250ml / 50-500ml, customizable |
| Filling Speed | 20-25tubes/min |
| Filling Accuracy | ±1% |
| Tube Diameter | 16-50mm |
| Tube Height | 70-200mm |
| Hopper Capacity | 40L |
| Working Air Pressure | 0.6Mpa |
| Power | 2.6KW |
| Voltage | AC110V or AC220V single phase |
| Dimension(L*W*H) | 1630*1380*1720mm |
| Net Weight | 450Kg |
Detailed inspection of verified station components, drives, and sanitation assemblies.
The automatic ultrasonic tube filling and sealing machine has ten stations. Tube Loading puts empty tubes on track. Tube Orientation aligns them. Pre - Cleaning rids impurities. Filling doses materials precisely. Dosing checks volume. Inner and Outer Seal ensure closure. Trimming cuts excess. Printing marks info. Inspection and Discharge sorts products by quality.
The Mark Sensor features (R · G · B) LEDs operating in high - precision mode. By employing a built - in 12 - bit A / D converter, it attains a high resolution in analyzing the R / G · B ratio of reflected light. This enables an accuracy judgment with a high resolution of 1/4,000, allowing for precise determination of colors. Moreover, it can effectively detect colors even in the presence of surrounding patterns, such as those on films.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
