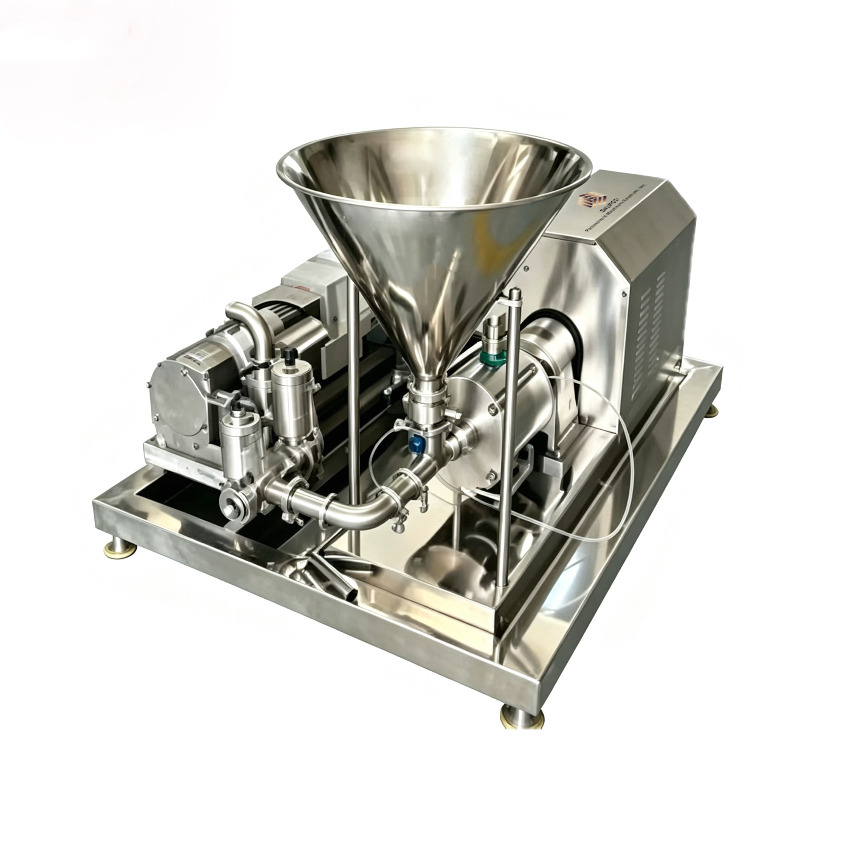

The inline high-shear homogenizing/emulsifier pump adopts an externally mounted structure connected in series on the pipeline.

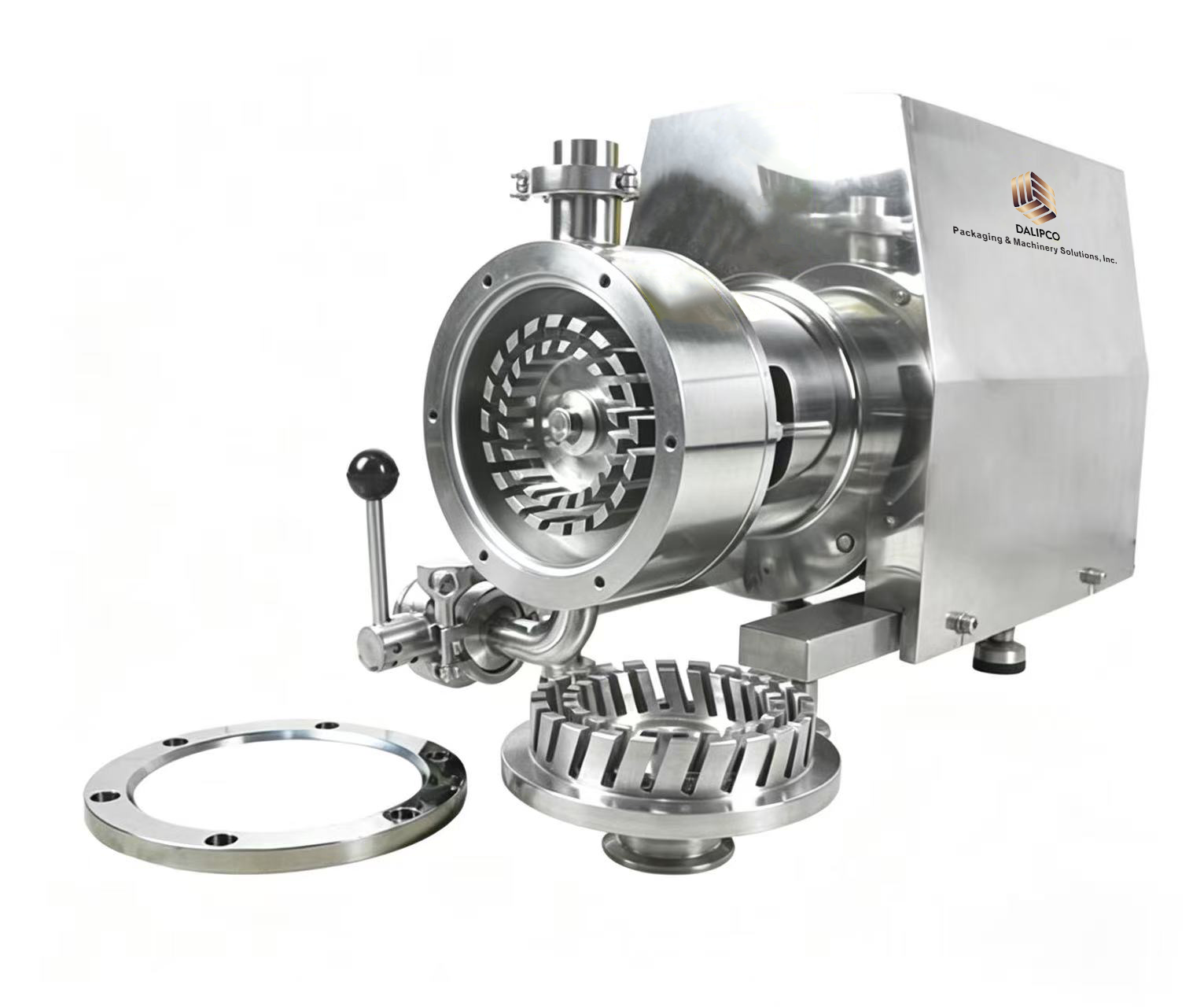

The inline high-shear homogenizing/emulsifier pump adopts an externally mounted structure connected in series on the pipeline. Materials circulate forcibly through the multi-stage precisely meshed stator-rotor shear chamber in a closed pipeline system. It completes emulsification, dispersion, homogenization and particle refinement of materials through high-speed centrifugal shearing, turbulent impact and cavitation effect. Equipped with built-in pumping head, it can directly realize external circulation of the reactor tank and delivers excellent circulation and conveying performance for medium and high viscosity materials.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Effective Capacity | 1-Stage | 2-Stage | 3-Stage |
| Material | All product contact part are made of Stainless Steel 316L/304 |
| Power | 2.2-55KW(Customized) |
| Flow | 0-3m³/h-0-40m³/h |
| Working Principle | Rotor and stator shearing at high speed |
| Homogenizer Speed | 0-3000RPM, customizable |
| Motor | ABB or SIEMENS |
| Homogenizer Design | High shear teeth-shape homogenizer |
| Homogenizer Position | Inline homogenizer |
| Voltage | 110-120V, 380-480V(Customizable) |
| Control Way | SIEMENS PLC control system and touch screen/push button control |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Effective Capacity 1-Stage 2-Stage 3-Stage Material All product contact part are made of Stainless Steel 316L/304 Power 2.2-55KW(Customized) Flow 0-3m³/h-0-40m³/h Working Principle Rotor and stator shearing at high speed Homogenizer Speed 0-3000RPM, customizable Motor ABB or SIEMENS Homogenizer Design High shear teeth-shape homogenizer Homogenizer Position Inline homogenizer Voltage 110-120V, 380-480V(Customizable) Control Way SIEMENS PLC control system and touch screen/push button control
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
