● Easy Adjustment Structure This round bottle labeling machine adopts handwheel and lead screw adjustment without tools.
Easy Adjustment Structure
This round bottle labeling machine adopts handwheel and lead screw adjustment without tools. Parameters including height, conveyor width and labeling head position can be adjusted simply by turning the handwheel. Most models are equipped with a graduated dial for precise reproduction of adjusted positions. It greatly shortens changeover time for different bottle types.
Stable Labeling Performance
Equipped with Siemens control system, the machine can run stably with consistent labeling accuracy. It supports manual jog test for trial labeling. With controllable label feeding tension, it effectively avoids label deviation and breakage during continuous production.
Precise Sensor Detection
It is fitted with label sensor and object sensor. The label sensor detects gaps or color marks between labels to control label feeding length. The object sensor triggers labeling only when bottles are in position to prevent missing or repeated labeling.
Reliable Safety Protection
The machine comes with complete safety interlock functions. It supports multi-language switching and real-time fault alarm prompt. Automatic stop will be activated in case of missing bottles or exhausted labels to reduce material waste and protect the whole equipment.
Flexible Compatibility
It supports labeling for various cylindrical bottles of different diameters and heights. The system can be extended to connect coders and other peripheral equipment to match automated production lines.
Wide Applicability
The labeling machine is ideal for multi-specification and small-batch production with frequent product changeovers. It is widely used in cosmetics, food, pharmacy, daily chemical and other industries to meet diverse labeling demands.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Labeling Accuracy | ±1mm (errors caused by product and label are not concerned) |
| Labeling Speed | 20-30pcs/min(influenced by the size of the product and label) |
| Applicable Product Diameter | 20-100mm |
| Applicable Label Length | 20-330mm |
| Applicable Label Width | 20-170mm(height of release paper) |
| Applicable Label Roll | Inner diameter 76mm; Outer diameter≤280mm |
| Device Dimension | 2200*1200*1420mm |
| Power | 220V/1-Phase |
Detailed inspection of verified station components, drives, and sanitation assemblies.

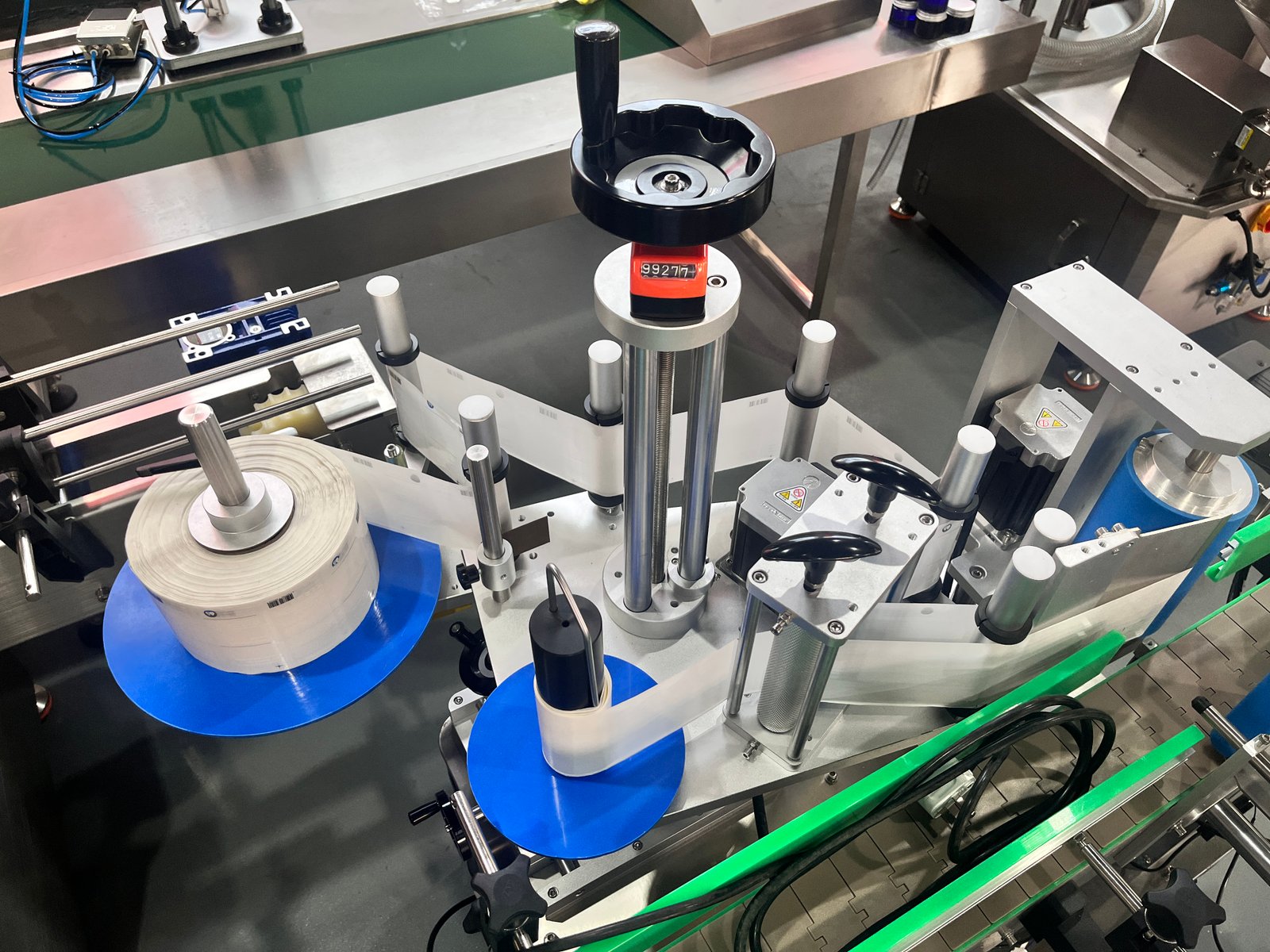

The labeling machine mainly adopts a handwheel and lead screw structure for tool-free adjustment. Parameters such as height, conveyor width and labeling head position can be adjusted simply by turning the handwheel without loosening multiple screws or using wrenches. Most models are equipped with a graduated dial for precise reproduction of adjusted positions. It features short setup time for bottle changeovers and lower operator skill requirements, along with less label waste from trial labeling.
The label routing assembly consists of a label unwinding reel, multiple guide rollers, tension buffer unit, traction driving roller and liner rewinding reel. The label web runs along neatly arranged guide rollers with controllable tension for smooth feeding to prevent deviation and web breakage. After label peeling, the release liner is rewound automatically. It supports quick change of different label widths and ensures stable continuous labeling.

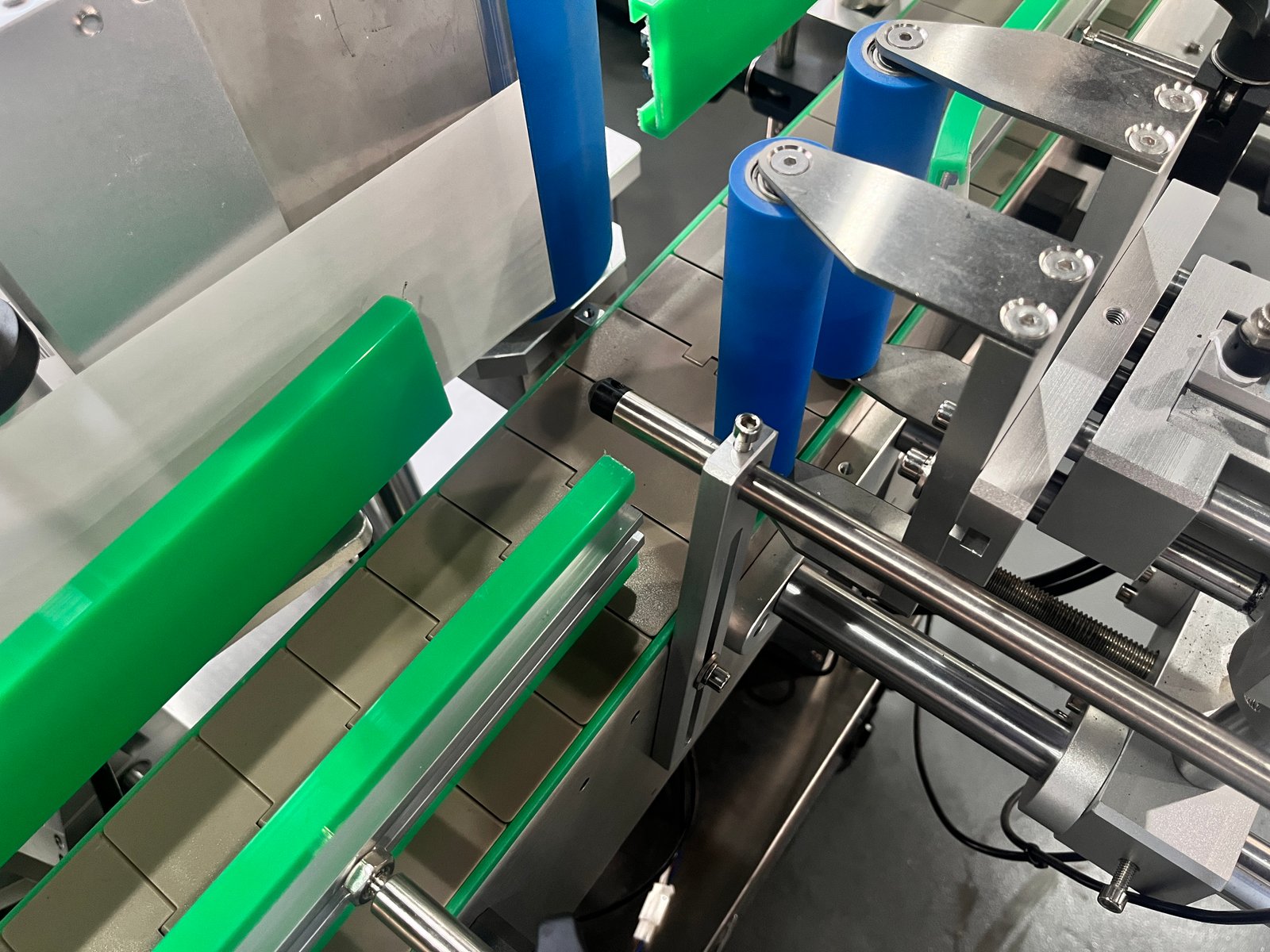

The labeling machine is equipped with object detection sensor and label sensor. The object sensor detects whether bottles arrive at the labeling station to avoid dispensing labels without products. The label sensor detects gaps or color marks between labels to precisely control label feeding length, ensuring consistent labeling position and preventing missing, repeated or incorrect labeling.

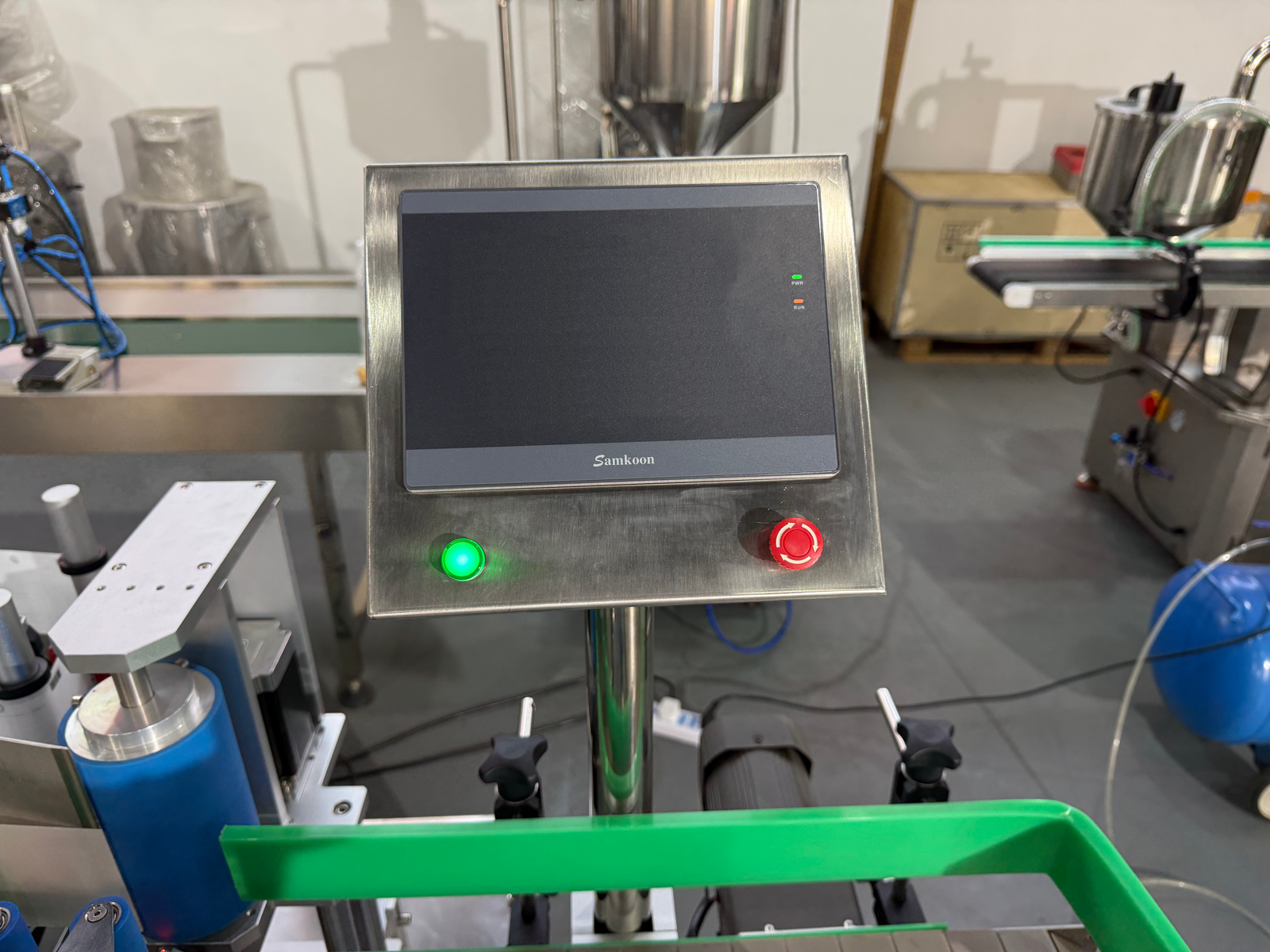

This machine adopts touch screen control. Operators can adjust process parameters such as conveyor speed, label feeding speed, label length, feeding delay, label stop offset and sensor sensitivity on the HMI. It supports manual jog test. Functions include multi-language switching, fault alarm, auto-stop for missing bottles or labels. The system can be extended to connect coders and other peripheral devices with reliable parameter storage and stable operation.
