● Water-free Dry Cleaning Requiring no water or drying equipment, it effectively eliminates water residue, scale and bacterial growth caused by traditional water washing.
Water-free Dry Cleaning
Requiring no water or drying equipment, it effectively eliminates water residue, scale and bacterial growth caused by traditional water washing. With zero wastewater discharge, it features eco-friendly and low-carbon operation, greatly reducing daily maintenance and sewage treatment costs.
Full Enclosed Design & Anti-pollution
Adopting a fully enclosed operating structure, the machine isolates external dust and impurities. Equipped with a dual system of high-pressure air blowing and negative pressure dust suction, it blows away and collects contaminants in real time, fundamentally avoiding secondary pollution.
Touch Screen Control
It adopts visual touch screen operation with one-click parameter setting and one-click start/stop. The whole process including automatic bottle feeding, positioning, cleaning and bottle discharging is fully automated for high production efficiency.
Wide Applicability
It is suitable for bottles of various materials such as glass and plastic, and fits multiple shapes including round, square, flat and special-shaped bottles. It supports flexible adjustment of bottle diameter, height and mouth size without replacing molds, enabling fast product switching and adapting to diversified, small-batch and large-scale production modes.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Working Mode | Dry cleaning via high-pressure clean air blowing and negative pressure dust suction |
| Bottle Heads | 6 heads(customizable) |
| Applicable Bottle Height | 100–220mm (customizable) |
| Body Material | Food-grade 304 stainless steel |
| Control System | PLC touch screen |
| Air Pressure | 0.4–0.6MPa |
| Voltage | 220V, 50/60Hz |
| Applicable Bottle Types | Round, square bottles (suitable for glass and plastic bottles) |
Detailed inspection of verified station components, drives, and sanitation assemblies.

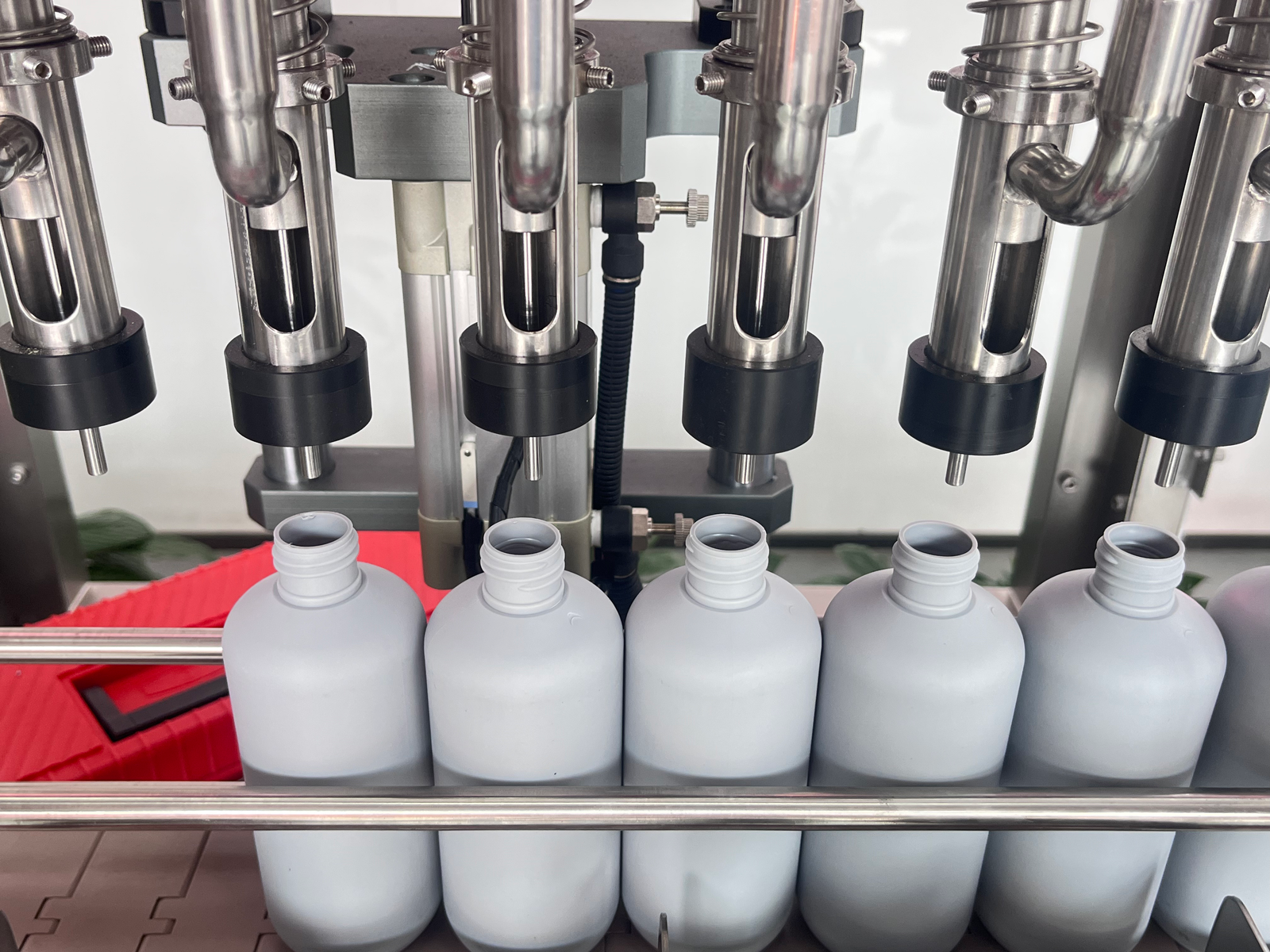

Bottle rinsing nozzle, the core cleaning component. High‑pressure clean air ejects into bottles. Combined with negative‑pressure dust suction, it efficiently blows out dust and debris inside bottles. The nozzle is adjustable for bottles of different heights.

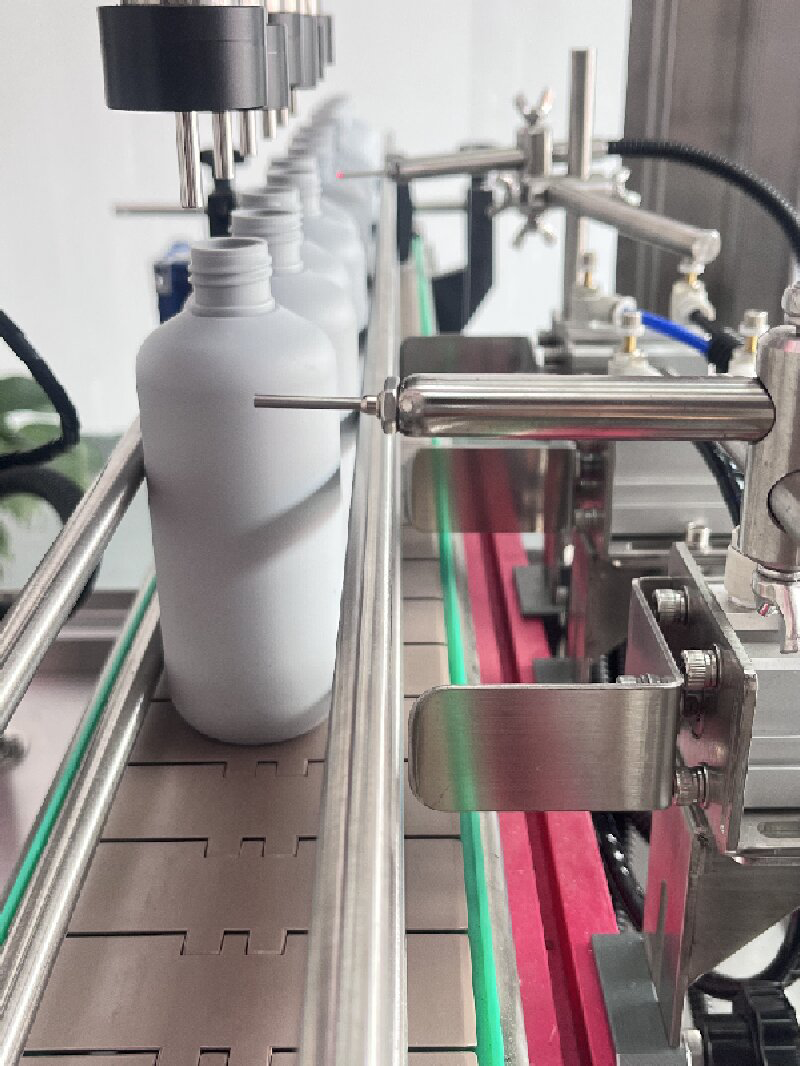

It accurately detects bottle position to trigger feeding and cleaning actions. No‑bottle‑no‑operation function prevents idle running, ensuring stable continuous production and reducing malfunctions.

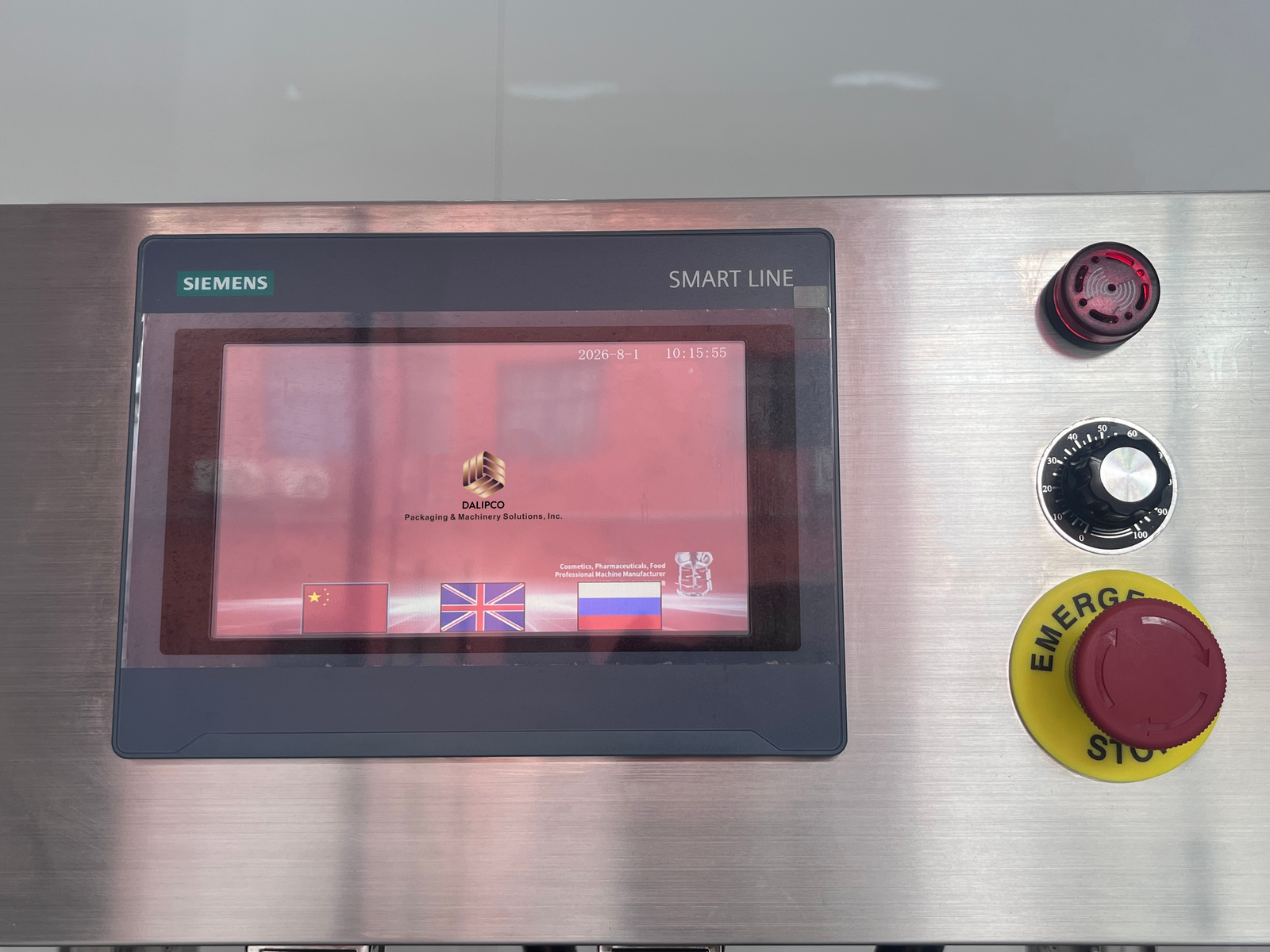

Touch screen control panel, PLC‑based HMI center. Visual interface for setting speed, blowing time and other parameters. One‑button start‑stop, equipped with emergency stop button, user‑friendly operation, multi‑language support.

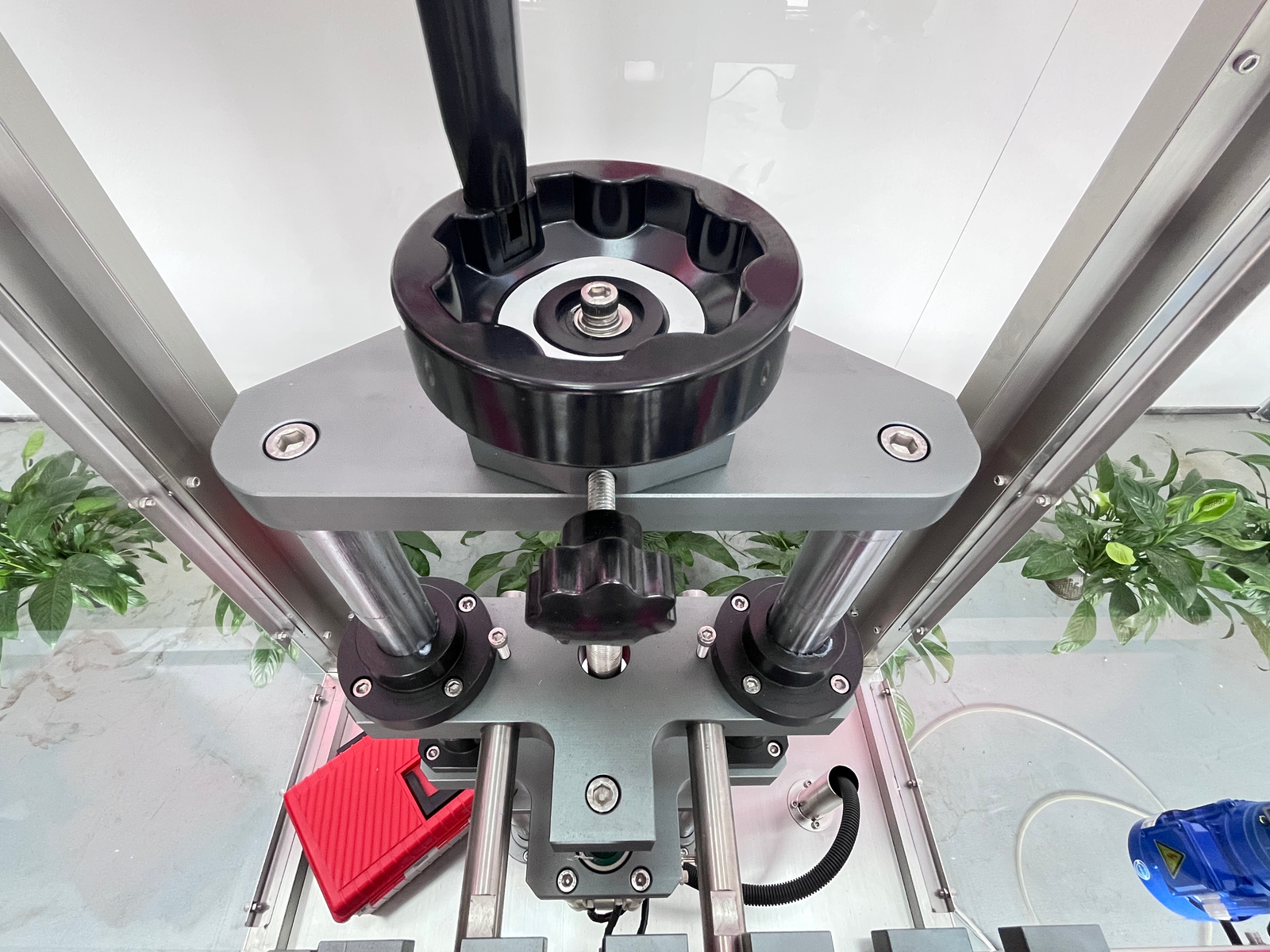

Manually adjust the height of cleaning nozzles simply by turning the handwheel with no extra tools required. It fits bottles of various heights, greatly shortening setup time for product changeover.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
