CIP cleaning systems play an important role in many industries.
CIP cleaning systems play an important role in many industries. In the food and beverage industry, they are widely used in dairy, beverage, juice, fruit pulp, jam, alcohol and other production enterprises to clean production equipment and pipelines to ensure product quality and safety; in the pharmaceutical industry, they are used for cleaning pharmaceutical equipment to meet the strict requirements of hygiene level and prevention of cross-contamination in pharmaceutical production; in the field of industrial fermentation, they provide cleaning services for fermentation tanks, pipelines and other equipment to ensure that the fermentation process is not contaminated and stable production.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Effective Capacity | 100L | 500L |
| Material | All product contact part are made of Stainless Steel 304 |
| Cover Design | Sealed cover |
| Heating Methods | Eelctric heating |
| Electric Heating Power | 6KW | 27KW |
| Rotation Speed | 2900RPM |
| Pump Type | Sanitary centrifugal pump |

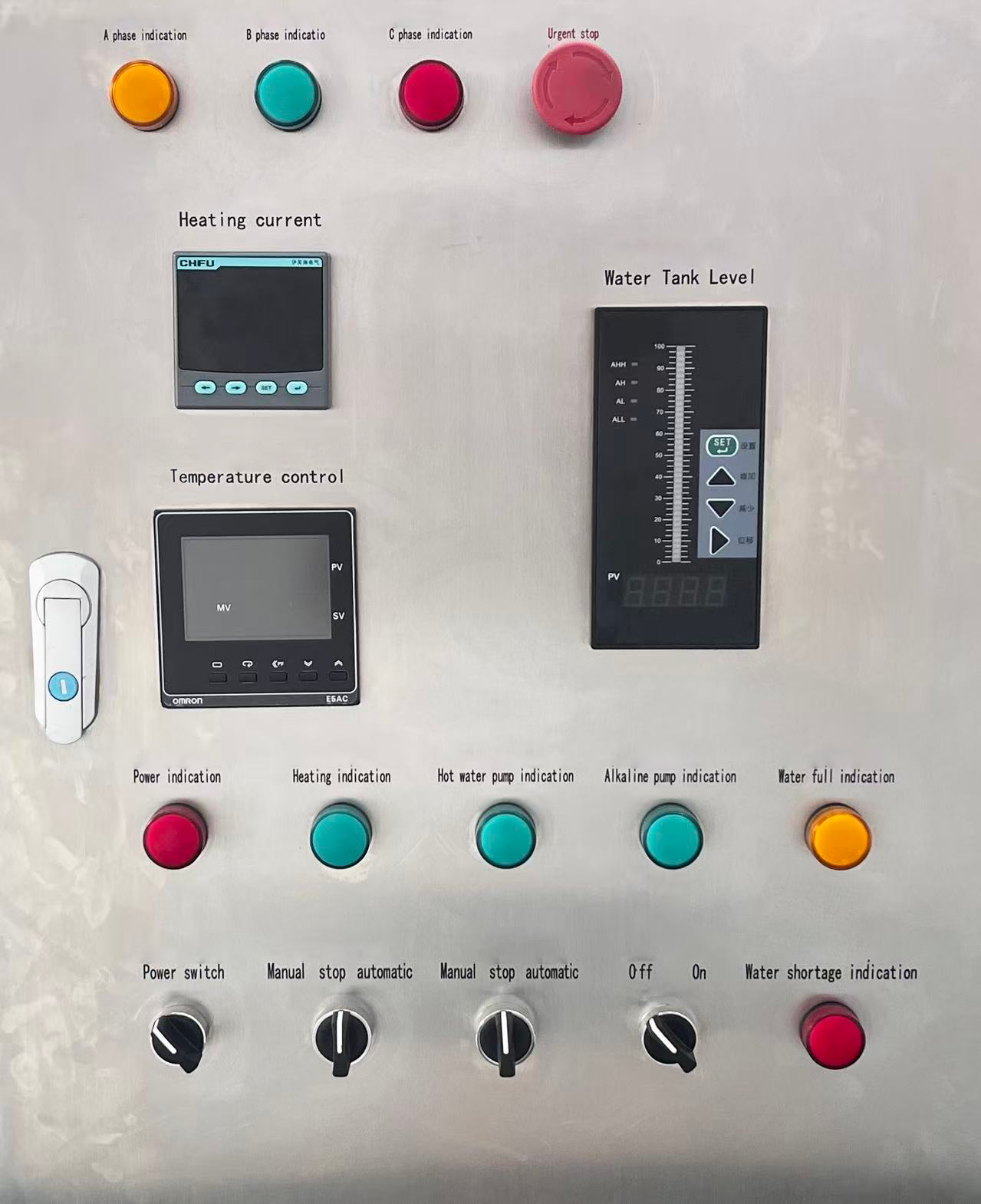

| Control Way | SIEMENS PLC control system and touch screen/push button |

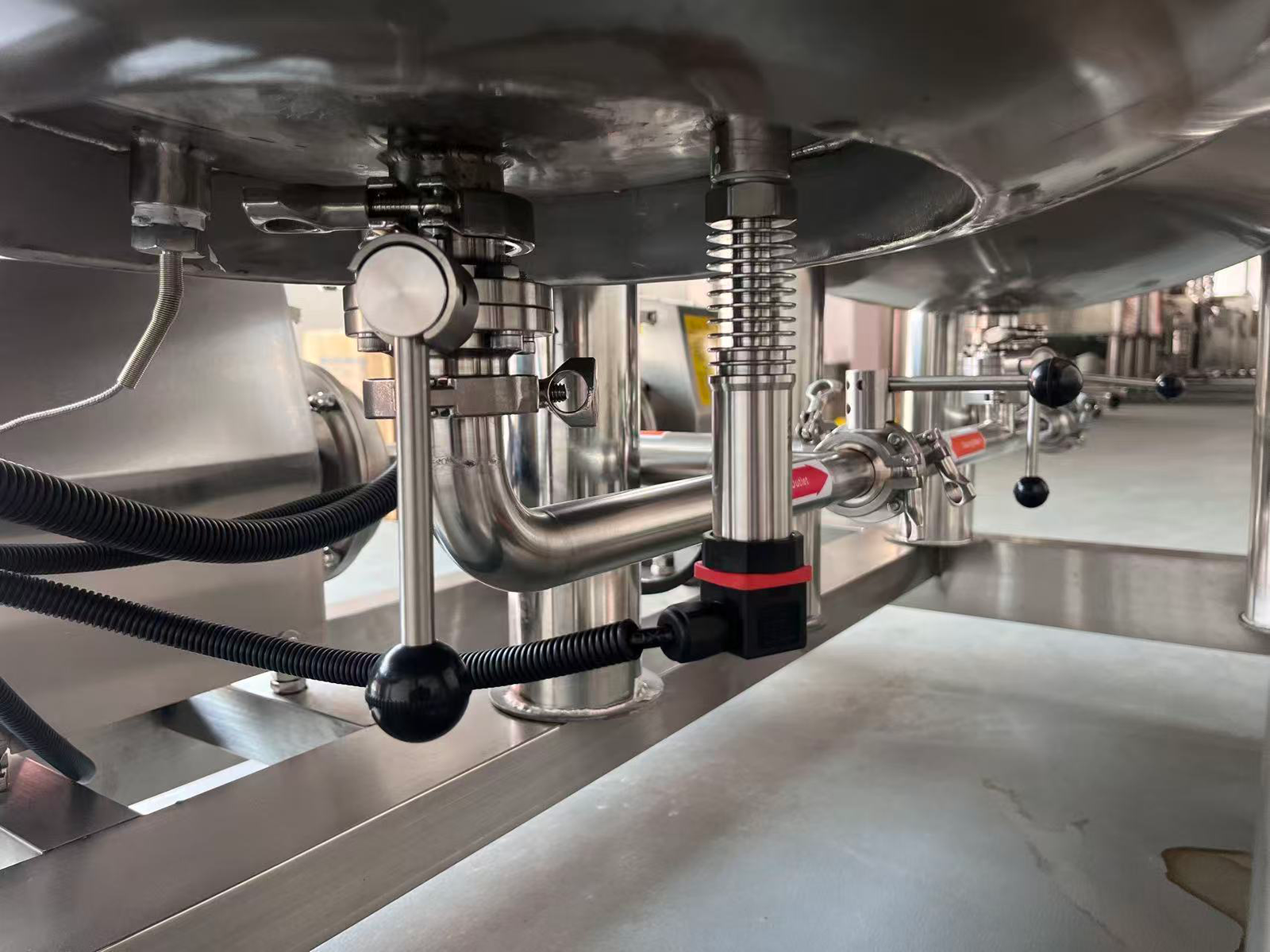

Detailed inspection of verified station components, drives, and sanitation assemblies.
Effective Capacity 100L 500L Material All product contact part are made of Stainless Steel 304 Cover Design Sealed cover Heating Methods Eelctric heating Electric Heating Power 6KW 27KW Rotation Speed 2900RPM Pump Type Sanitary centrifugal pump Control Way SIEMENS PLC control system and touch screen/push button
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
