Through the dual functions of "stirring + homogenization", the mixing machine can refine raw material particles to the micron level, break the oil-water interfacial tension, ensure the uniform dispersion of silicone…

Through the dual functions of "stirring + homogenization", the mixing machine can refine raw material particles to the micron level, break the oil-water interfacial tension, ensure the uniform dispersion of silicone oil, active ingredients and other components, and prevent the finished product from stratification or phase separation, thus achieving stronger stability during long-term storage.
Stirring & Homogenizing The stirring paddle mechanism and homogenization system work in tandem, which can strongly enhance the mixing effect.
The stirring paddle serves as the "basic guarantee" to ensure the overall uniformity of
materials. Our mixing tanks are equipped with dead-angle-free welded stirring paddles and fixed paddles, which can prevent material residue, break up vortices, and improve the mixing effect more efficiently.
Homogenization acts as the "quality enhancement" to ensure the micro-level fineness and stability of materials. Our high-shear homogenizer is paired with a double-sided water cooling mechanical seal, featuring better cooling performance and a longer service life.
Combined, the stirring paddle and homogenization can meet the full range of application needs from ordinary liquid mixing to high-end fine chemical processes.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Effective Capacity | 50L | 100L |
| Material | All product contact part are made of Stainless Steel 316L |
| Tank Design | Three layers, double jackets |
| Heating Methods | Eelctric heating |
| Electric Heating Power | 6KW | 9/12KW |
| Mixing Design | No-dead-angle mixing paddle with Teflon scraper |
| Mixing Power | 0.75KW | 1.1KW |
| Mixing Speed | 0-63rpm, customizable |
| Mixing Motor | ABB brand |
| Homogenizer Design | High shear homogenizer |
| Homogenizer Position | Bottom homogenizer(Customizable) |
| Homogenizer Power | 3KW | 4KW |
| Homogenizer Speed | 0-2960rpm, customizable |
| Homogenizer Motor | ABB brand |
| Homogenizer Design | Strong tumbling effect |
| Cover Type | Half-open cover |
| Control Way | Push button control |
| Customization | SIEMENS PLC control system & SIEMENS touch screen |

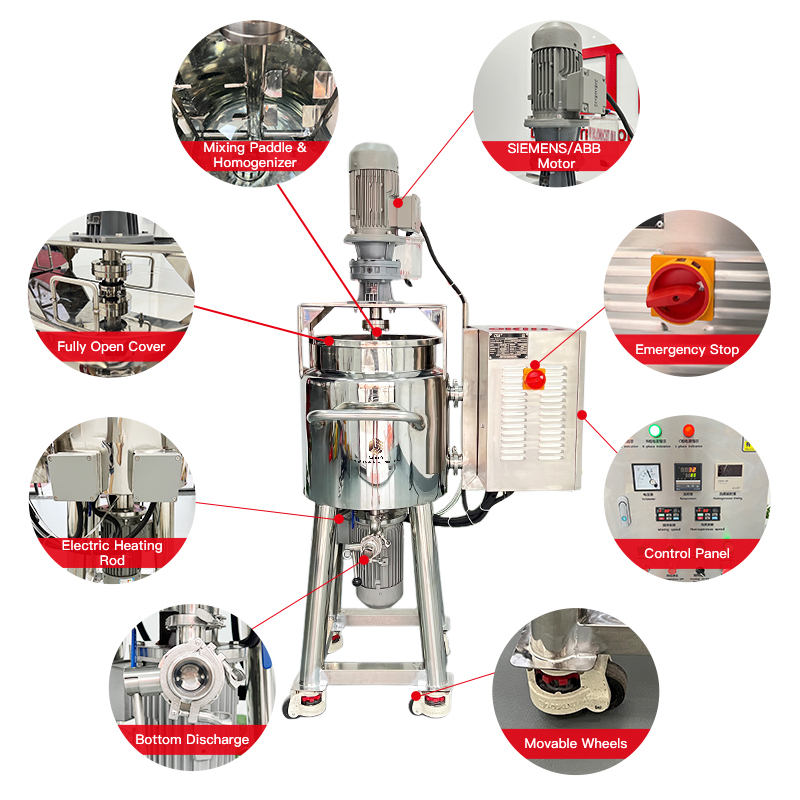

Detailed inspection of verified station components, drives, and sanitation assemblies.
Effective Capacity 50L 100L Material All product contact part are made of Stainless Steel 316L Tank Design Three layers, double jackets Heating Methods Eelctric heating Electric Heating Power 6KW 9/12KW Mixing Design No-dead-angle mixing paddle with Teflon scraper Mixing Power 0.75KW 1.1KW Mixing Speed 0-63rpm, customizable Mixing Motor ABB brand Homogenizer Design High shear homogenizer Homogenizer Position Bottom homogenizer(Customizable) Homogenizer Power 3KW 4KW Homogenizer Speed 0-2960rpm, customizable Homogenizer Motor ABB brand Homogenizer Design Strong tumbling effect Cover Type Half-open cover Control Way Push button control Customization SIEMENS PLC control system & SIEMENS touch screen
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
