● Dual-stage precision filtration system Microporous filter and plate and frame filter work together to remove fine impurities effectively, making perfume liquid crystal clear. ● Complete circulating pipeline Closed…

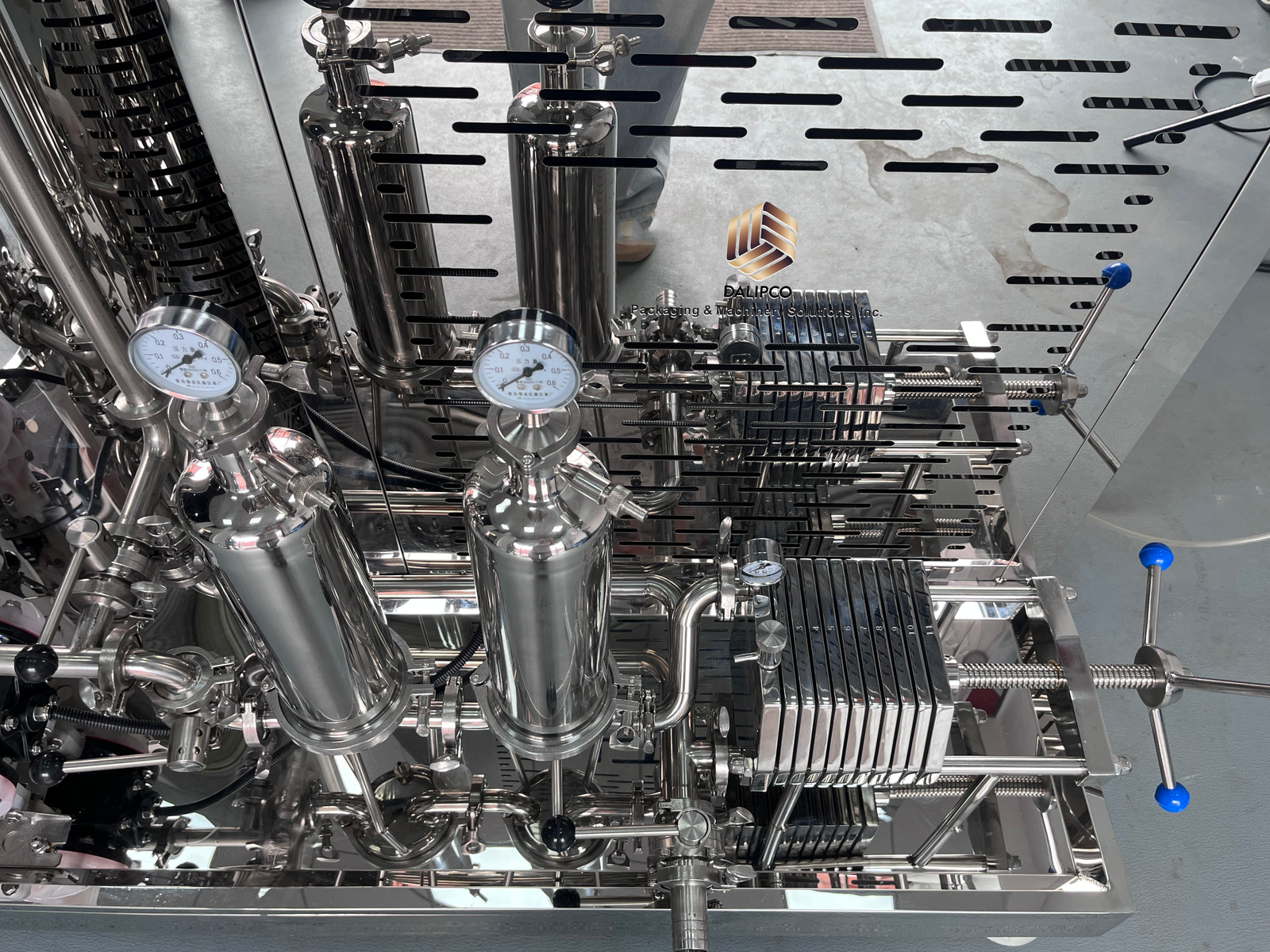

Dual-stage precision filtration system
Microporous filter and plate and frame filter work together to remove fine impurities effectively, making perfume liquid crystal clear.

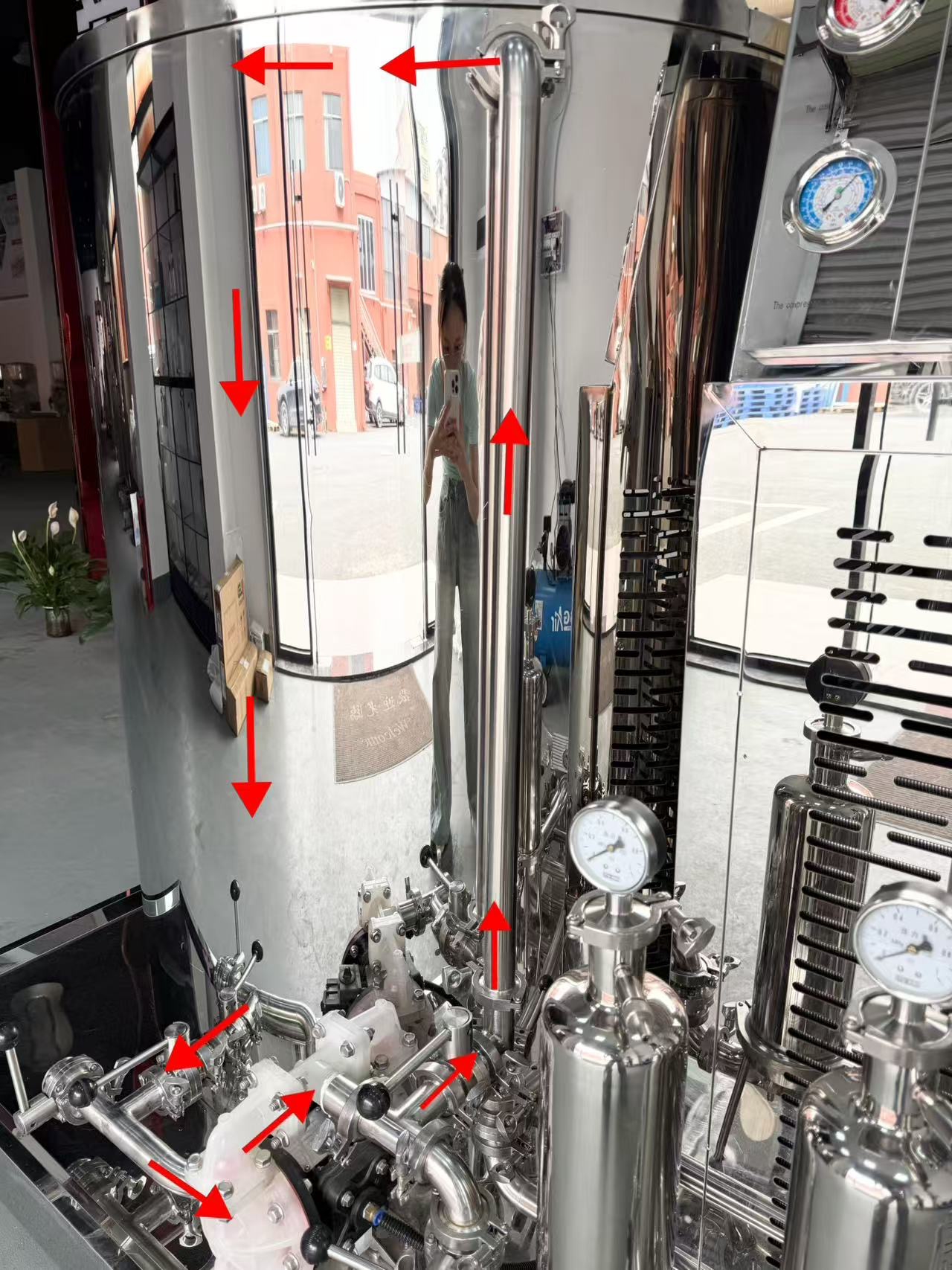

Complete circulating pipeline
Closed circulating pipeline avoids raw material volatilization loss and ensures consistent mixing effect for every batch.

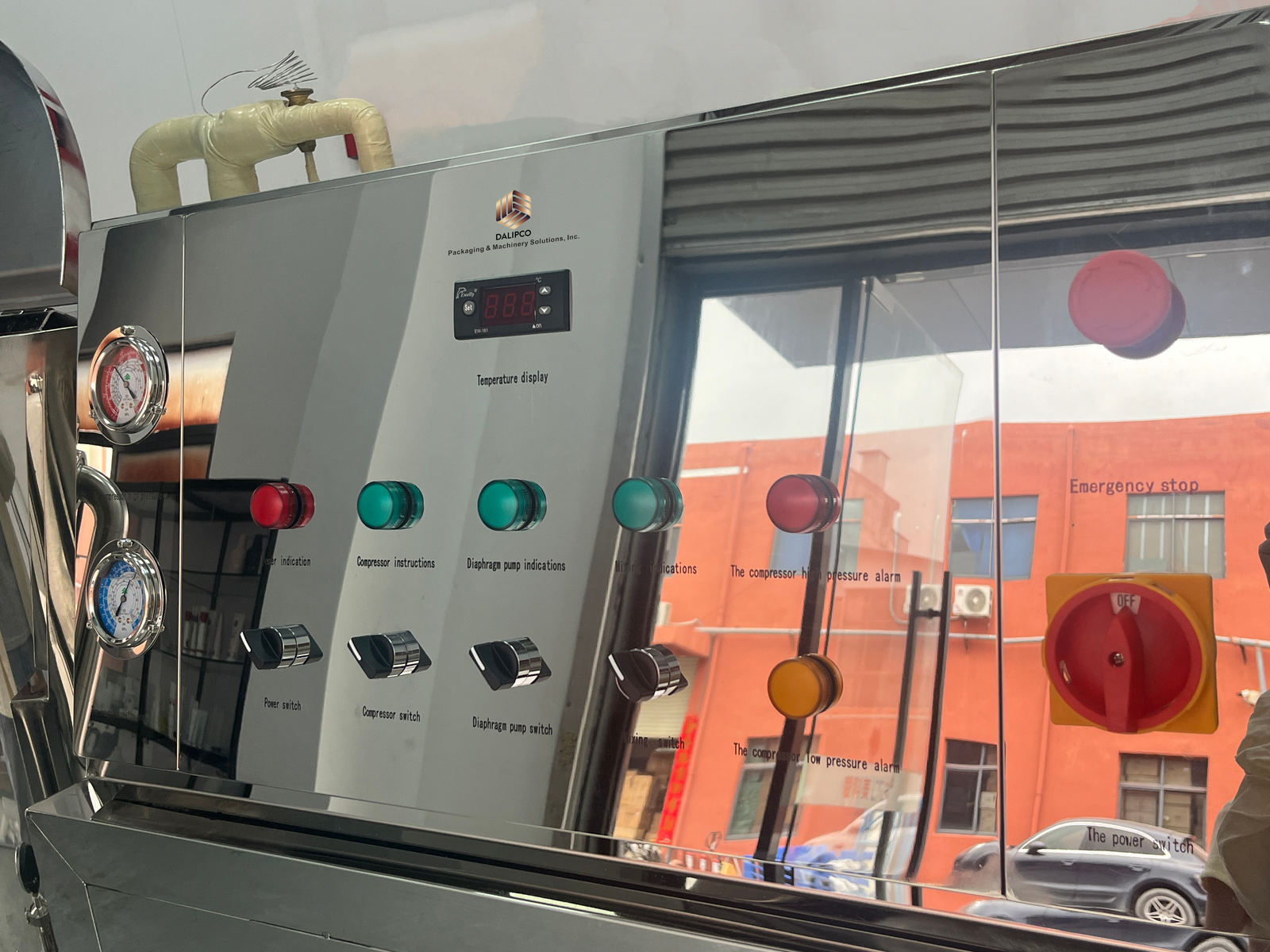

Simple Control
Intuitive button panel with digital display, real-time pressure monitoring and emergency stop button for reliable production.
Food-grade stainless steel
Main tank and pipeline adopt polished 304 stainless steel, corrosion-resistant, easy to clean, fully meet cosmetic hygiene requirements.
Wide Applicability
Suitable for perfume, floral water, body spray and other fragrance cosmetic production, ideal for medium & small factories.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|

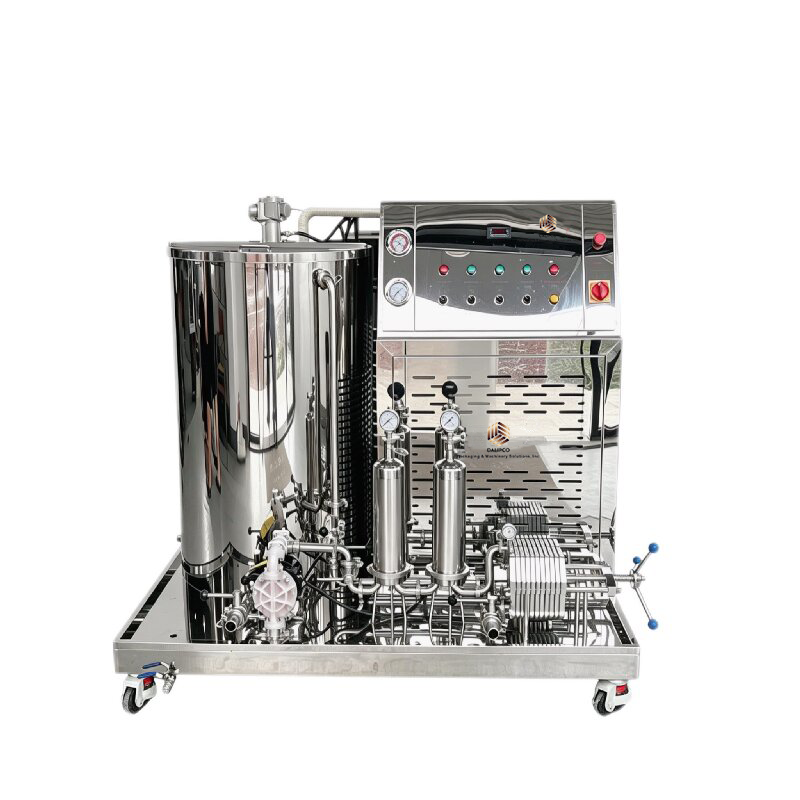

| Name | Perfume Making Machine with Chilling Freezing Filter |
| Model | 100L(3P) | 300L(5P) | 500L(5P) |
| Freezing Medium | R22 | R22 | R22 |
| Filter pressure | 0.2MPa | 0.2MPa | 0.2MPa |
| Air source | 0.5-0.6MPa | 0.5-0.6MPa | 0.5-0.6MPa |
| Freezing Temperature | -15 Celsius degrees | -15 Celsius degrees | -15 Celsius degrees |
| Level 1 filer | 1.0 μm | 1.0 μm | 1.0 μm |
| Level 2 filter | 0.2 μm | 0.2 μm | 0.2 μm |
| Power | 2.2KW | 3.75KW | 7.5KW |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Detailed inspection of verified station components, drives, and sanitation assemblies.

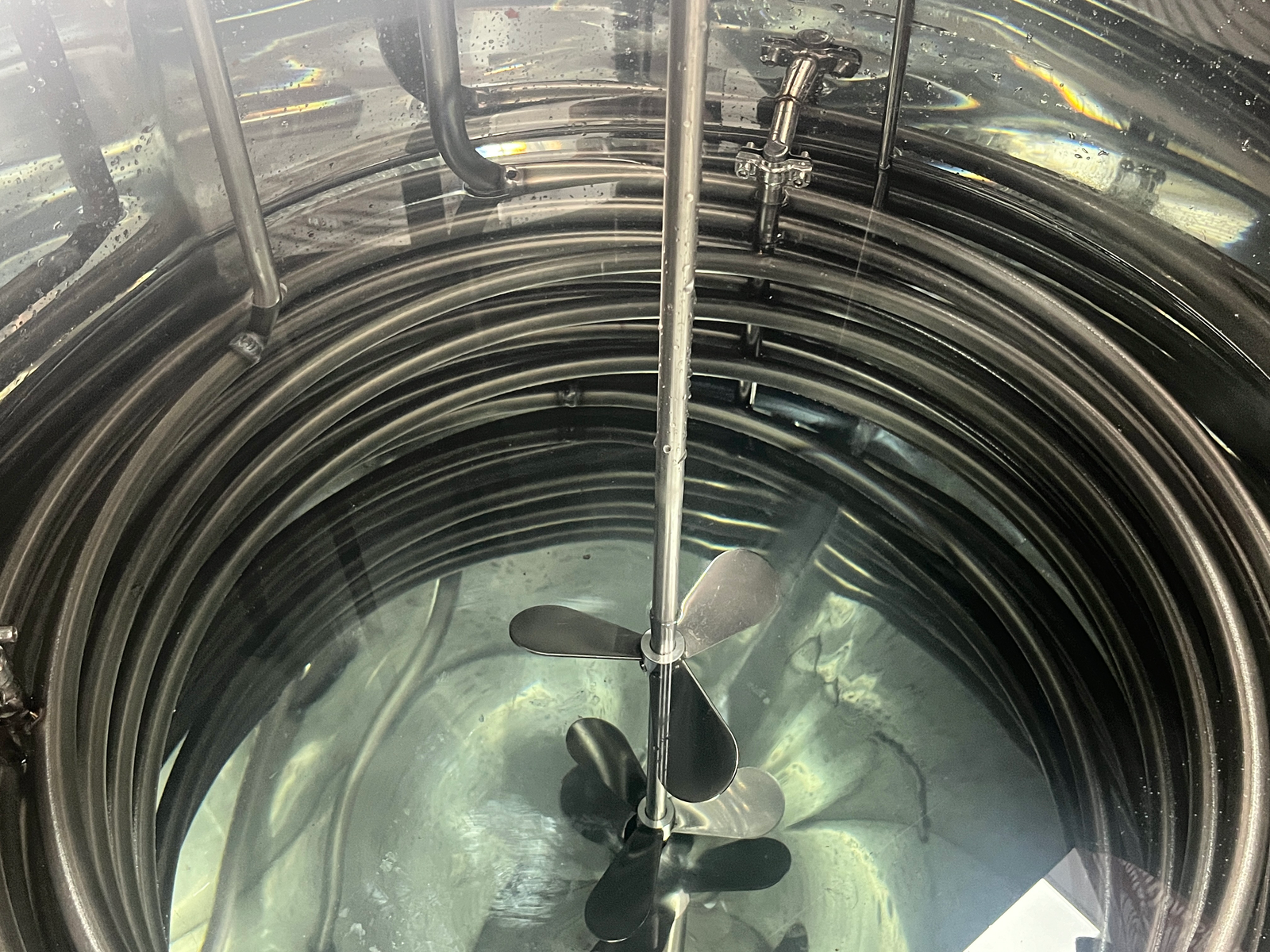

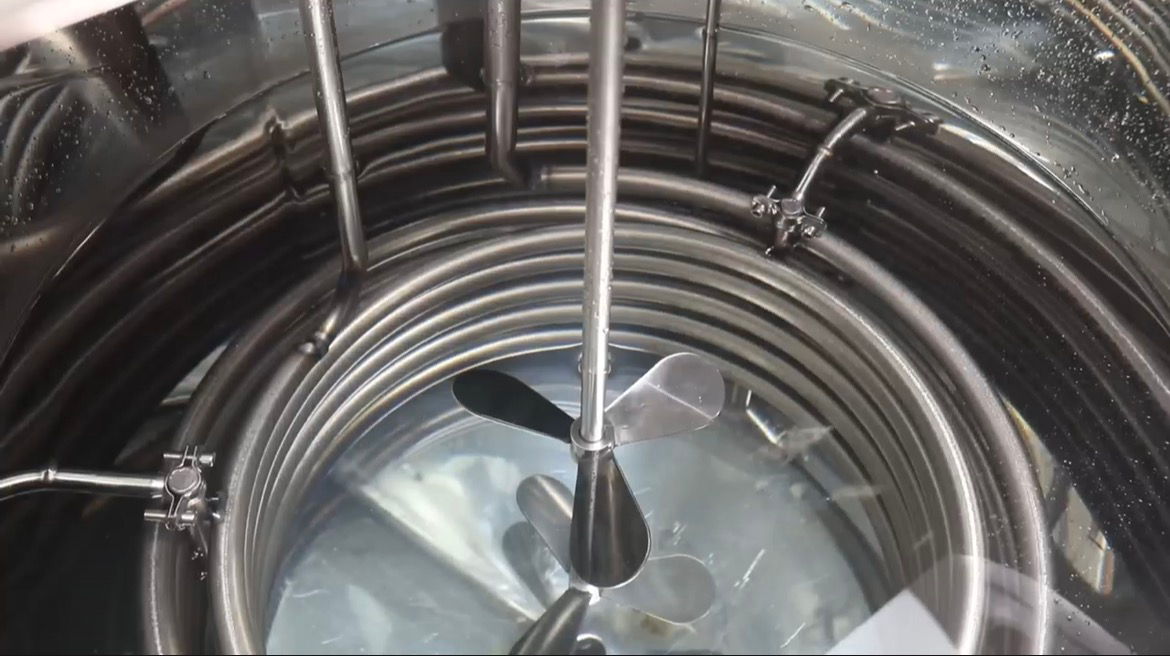

Built-in cooling coil and mixing agitator realize low-temperature blending of perfume raw materials. Constant temperature treatment helps separate insoluble impurities, fully homogenize essential oil and alcohol, and stabilize fragrance quality for ageing.
High-precision microporous filter cartridge removes fine suspended particles after chilling. It serves as primary purification to capture tiny impurities effectively, laying a foundation for crystal clear perfume liquid.

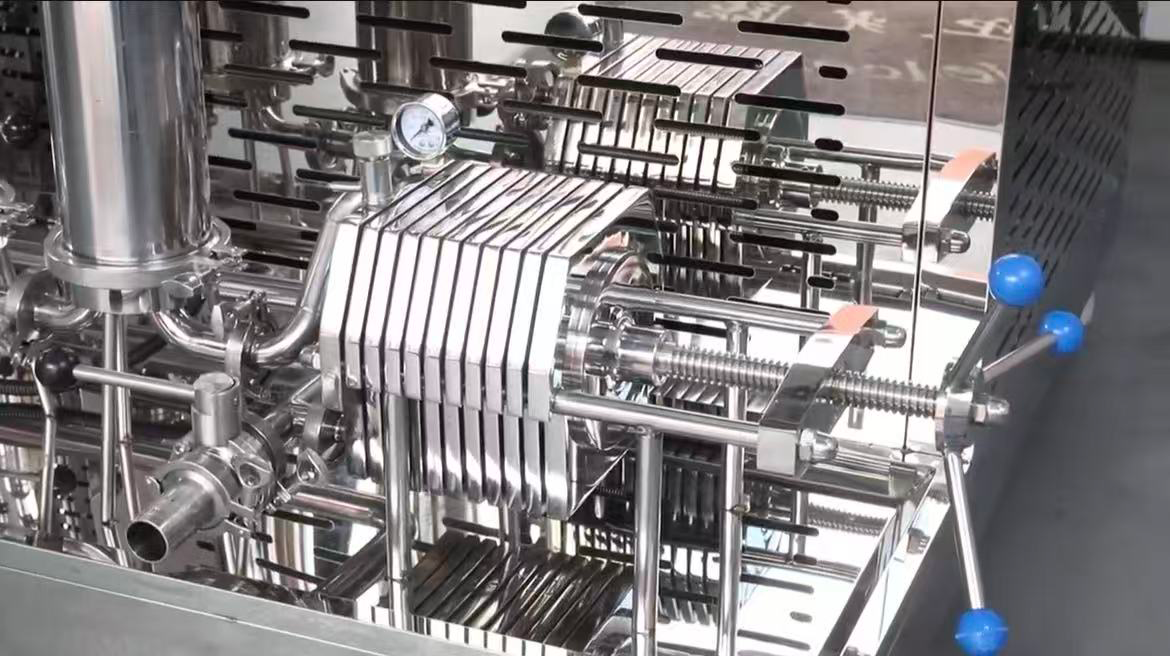

Adopt plate-frame filter for secondary fine filtration. It completes further clarification and purification of perfume, greatly improving liquid clarity, suitable for mass continuous perfume production.

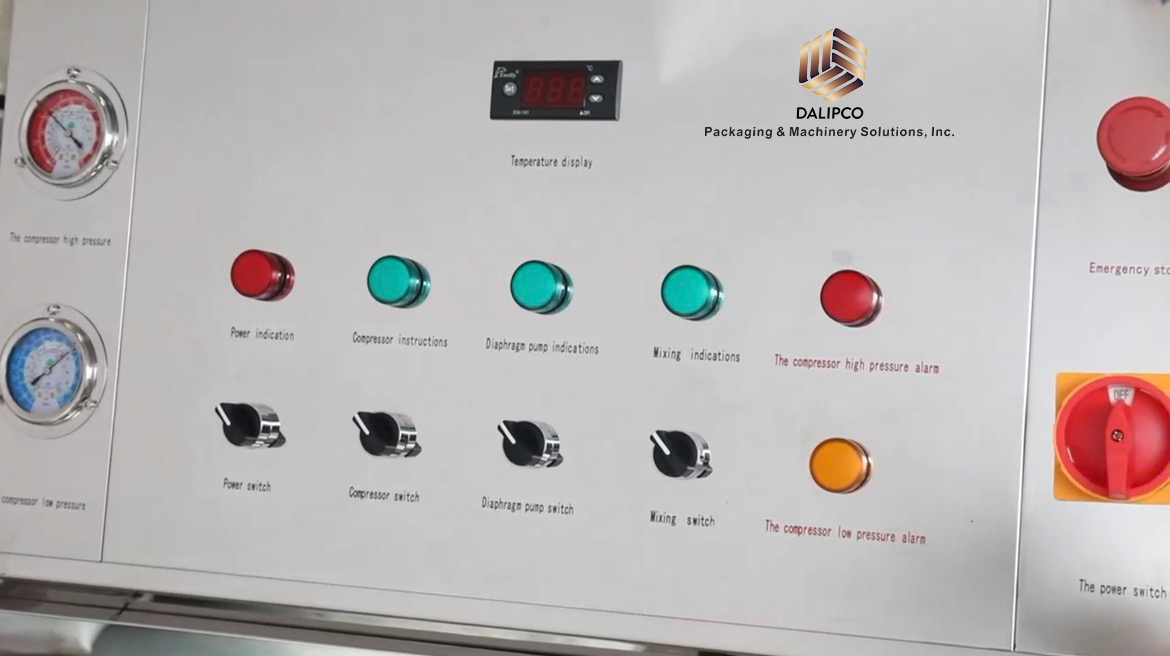

Intuitive button control panel with digital display and pressure gauges. Operators can monitor working status in real time and adjust parameters conveniently. Emergency stop button ensures safe operation during production.
