● Reliable Medium Delivery This CIP system adopts sanitary centrifugal pumps to transport liquid for each tank steadily, providing sufficient power for the whole cleaning process. ● Flexible Circulation Modes It…
Reliable Medium Delivery
This CIP system adopts sanitary centrifugal pumps to transport liquid for each tank steadily, providing sufficient power for the whole cleaning process.
Flexible Circulation Modes
It supports independent self-circulation of each tank and cross circulation among the three tanks to meet different cleaning process requirements.
Precise Temperature Control
LTB CIP cleaning system features one tank equipped with an independent heating system. It realizes accurate temperature control of hot cleaning liquid, which guarantees stable cleaning performance of hot water, acid and alkaline solutions.
Centralized Panel Operation
All core operations including heating activation and pump start-stop can be controlled on the integrated control panel, bringing simple and convenient on-site operation.
Complete Drainage Design
Each tank is fitted with an independent low-position drain port for thorough discharge of waste liquid and sediment, avoiding residual cross-contamination of cleaning media.
Wide Applicability

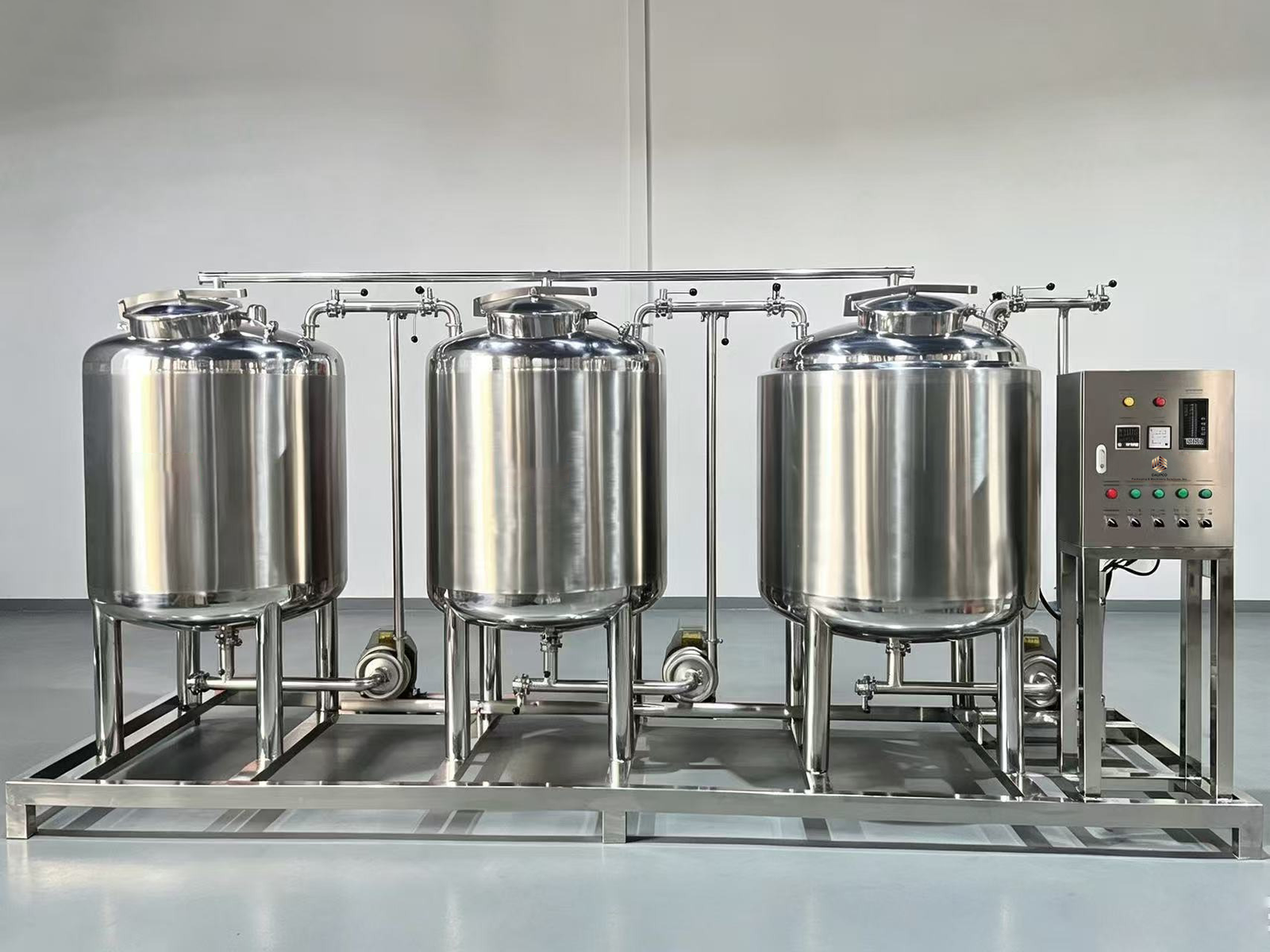

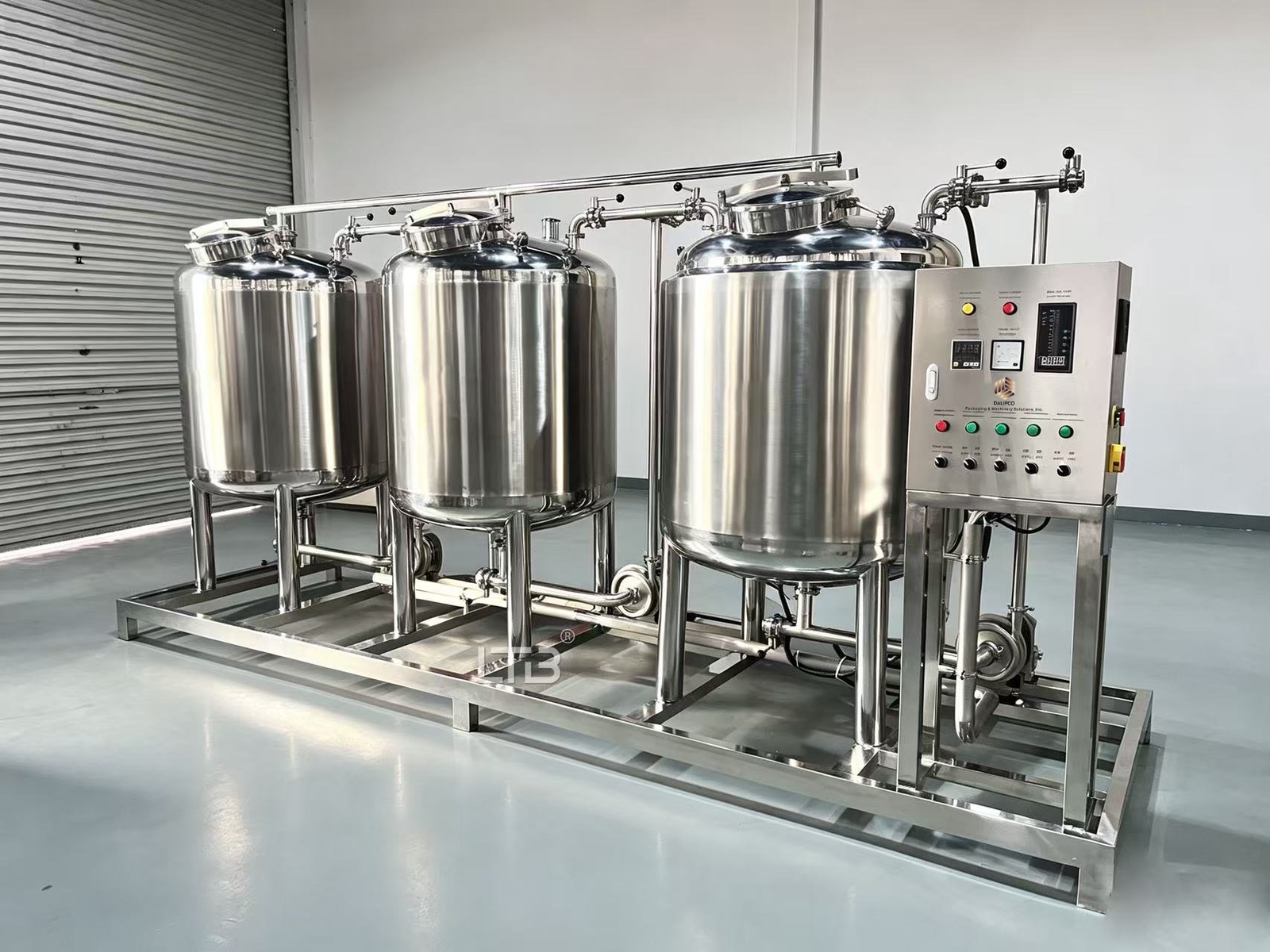

The CIP cleaning system is suitable for online cleaning of various process tanks and pipelines. It serves food, pharmacy, cosmetics, and chemical industries, meeting diverse cleaning demands.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Volume | 500L+500L+500L |
| Heating Power | 27KW(based on volume) |
| Material | SUS 316L/SUS 304 |
| Centrifugal Pump Power | 2.2KW+2.2KW+2.2KW |
| Voltage | 380V 50Hz 3-Phase(Customized) |
| Control Way | Touch screen or button control |
| Cover Design | Sealed cover |
| Tank Inside | CIP ball |
Detailed inspection of verified station components, drives, and sanitation assemblies.

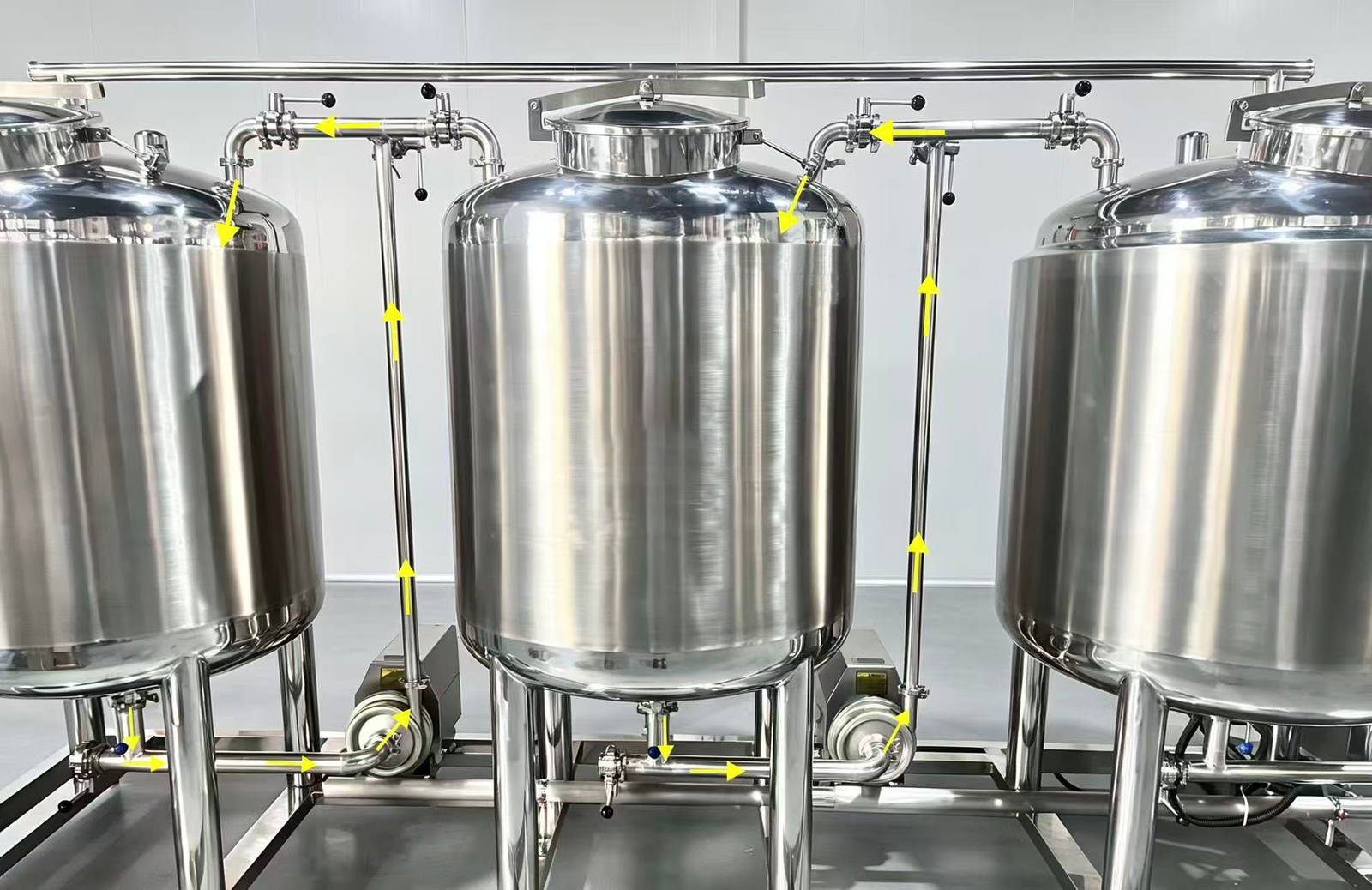

Each tank is equipped with self-circulation function, mainly used for even mixing of acid/alkaline detergent, uniform heating and temperature holding, preventing residue sediment inside tank, as well as self-cleaning of CIP tank itself and pump protection.

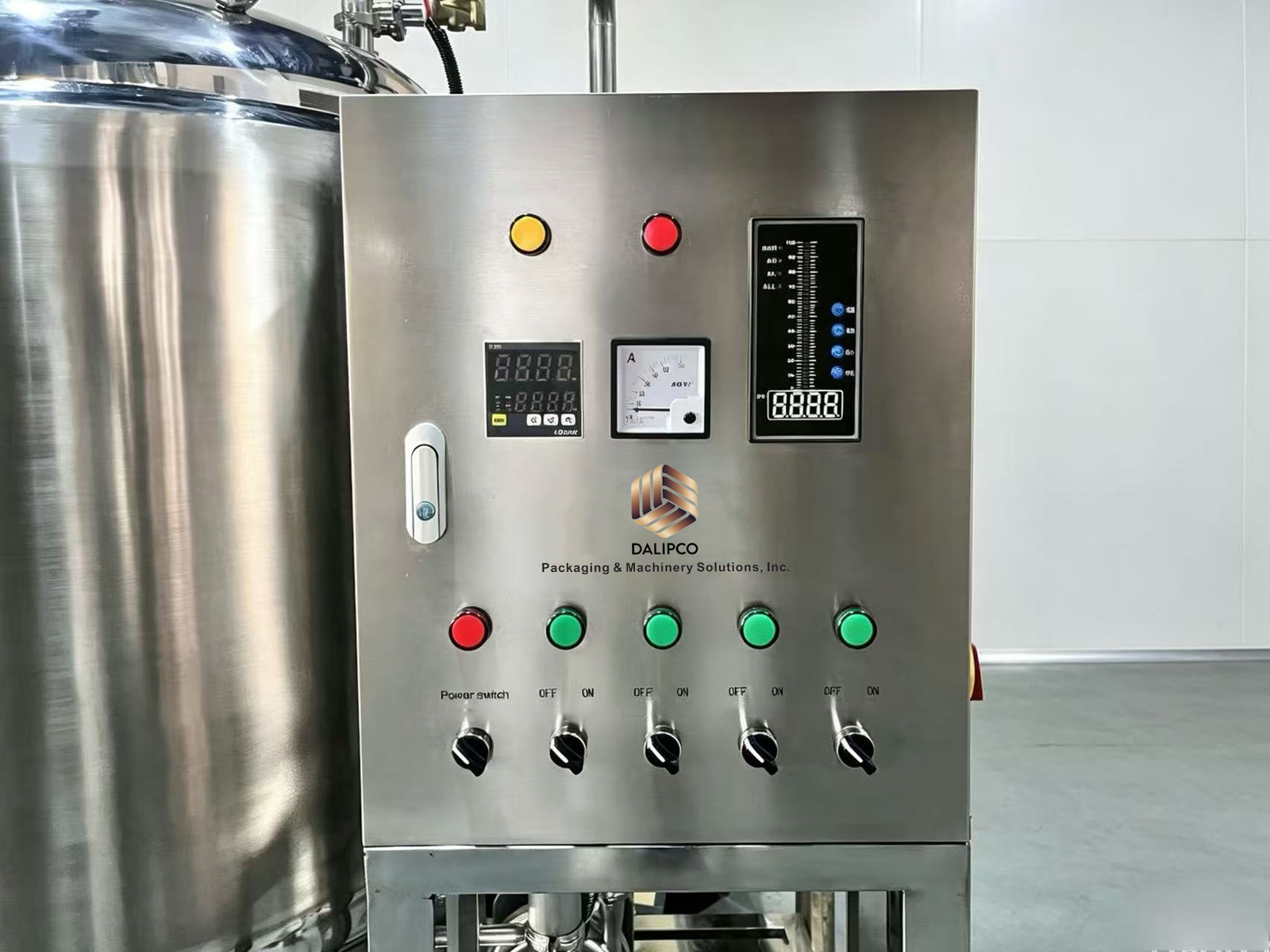

This CIP cleaning system adopts an integrated stainless steel control panel. All core operations including heating and pump start-stop can be centrally controlled here. It integrates temperature control, current monitoring, liquid level display, level alarm and power indication for convenient on-site cleaning management.

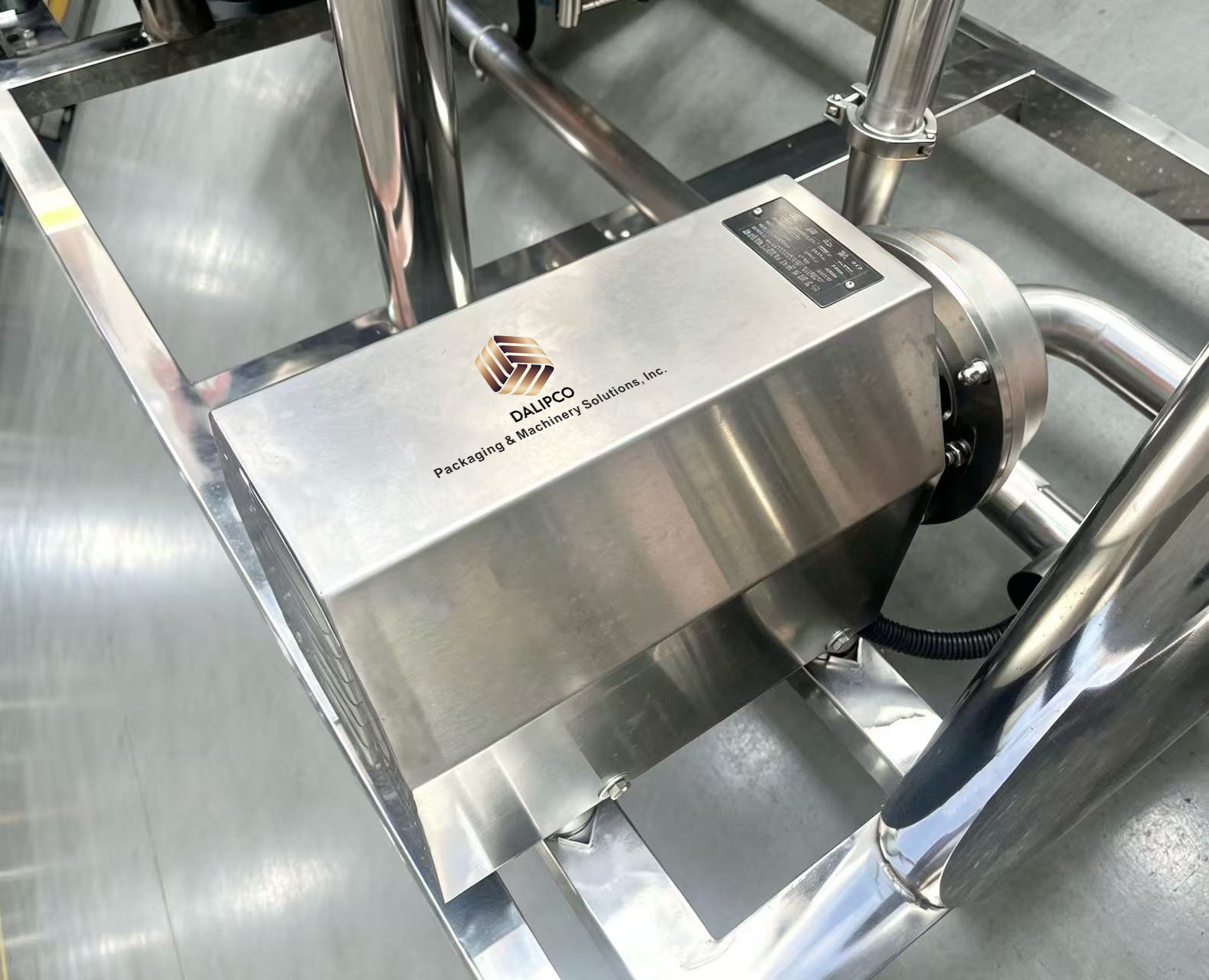

The centrifugal pump of this CIP system acts as the power unit for medium transfer. It conveys different cleaning media for the three tanks, including hot water, acid and alkaline solutions. Meanwhile, it enables independent self-circulation of each tank and cross circulation of media between tanks, forming a stable circulating flow of cleaning liquid to ensure effective clean-in-place.

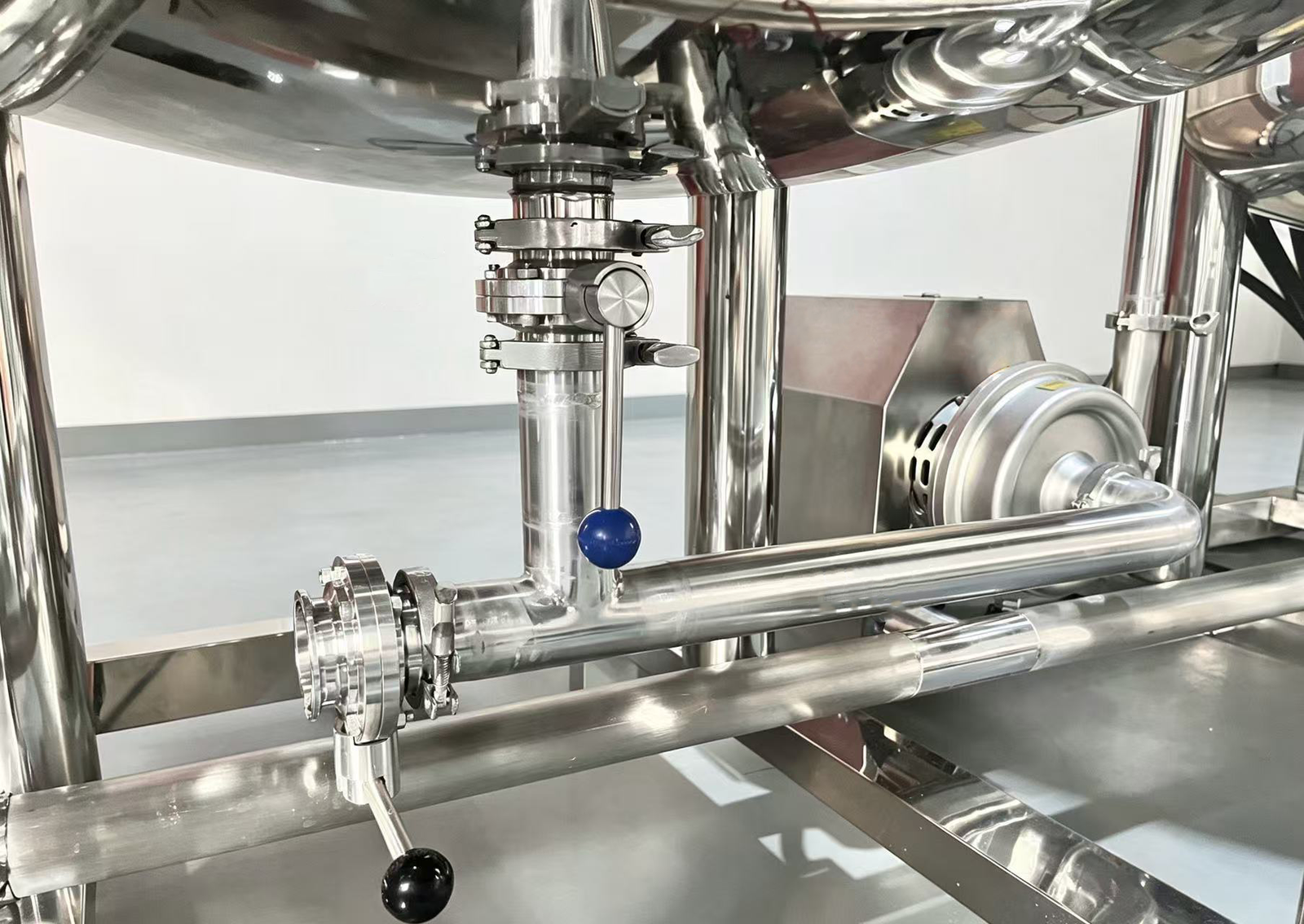

Each tank of this CIP system is equipped with an independent drain port. It is used to discharge waste liquid, sediment and residual media after cleaning. Installed at the low position of the tank, it can completely empty the liquid inside the vessel to avoid retention of acid, alkali or hot water, prevent cross-contamination of media, and facilitate tank draining, maintenance and cleaning with smooth drainage performance.
