● High Shear Homogenization This lab mixer is equipped with an interchangeable high-shear homogenizer operating stably up to 30000 rpm.
High Shear Homogenization
This lab mixer is equipped with an interchangeable high-shear homogenizer operating stably up to 30000 rpm. Various rotor-stator heads can be replaced according to different formulation needs, and powerful shear force enables instant and uniform material dispersion.
Precise Temperature Control
It adopts an independent heating and cooling system via the vessel jacket, reaching a temperature control accuracy of ±1°C. It stabilizes emulsification reactions and protects heat-sensitive active ingredients.
Modular Cover Fittings
The vessel cover is fitted with a full set of accessories including a pressure gauge, feeding funnel, temperature probe and control valves. The integrated structure maintains reliable sealing to support closed feeding, real-time temperature detection and process monitoring during tests.
Wide Applicability
This emulsifier suits oil-in-water, water-in-oil and high-viscosity materials, ideal for laboratory research and development in cosmetics, food, pharmaceutical and chemical industries.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Electric Lifting Power | 60W |
| Mixing Power | 120/150/300W |
| Mixing Speed | 0-200RPM |
| Homogenizer Power | 1300W |
| Homogenizer Speed | 10000-30000RPM |
| Material | SUS 316L/Glass |
Detailed inspection of verified station components, drives, and sanitation assemblies.

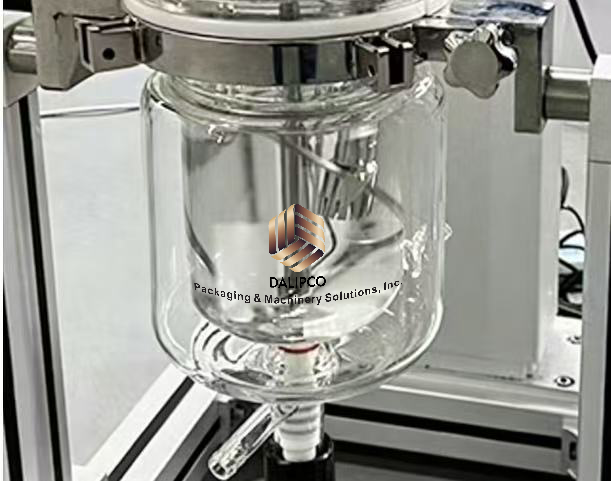

This jacket encloses the glass reactor. Circulating heat transfer fluid inside it evenly heats or cools materials for precise temperature control during emulsification, ideal for temperature-sensitive cosmetic formulations. It prevents local overheating, keeps the heat medium separated from the product to avoid contamination, and does not block observation through the glass vessel. It delivers consistent heat transfer and supports cyclic heating and cooling for lab R&D.

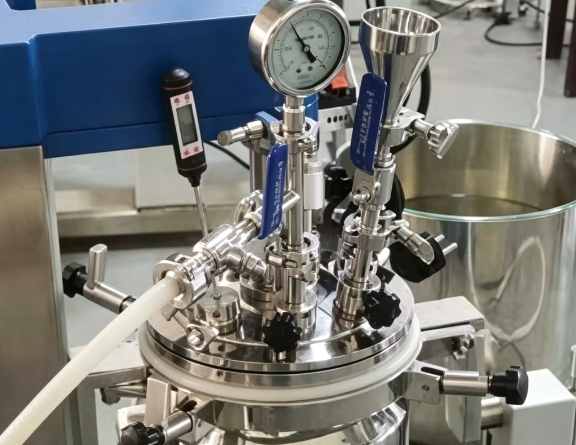

These cover-mounted accessories consist of a pressure gauge, feeding funnel, valves and temperature probe. The gauge monitors internal vacuum pressure for stable emulsification under negative pressure. The funnel enables closed feeding to prevent air entrapment and oxidation. Valves control vacuum, heat medium circulation and pressure relief, while the probe continuously tracks material temperature. Keeping the vessel tightly sealed, they support pressure monitoring, closed feeding, pipeline switching and real-time temperature measurement to meet closed-process requirements for cosmetic lab emulsification.

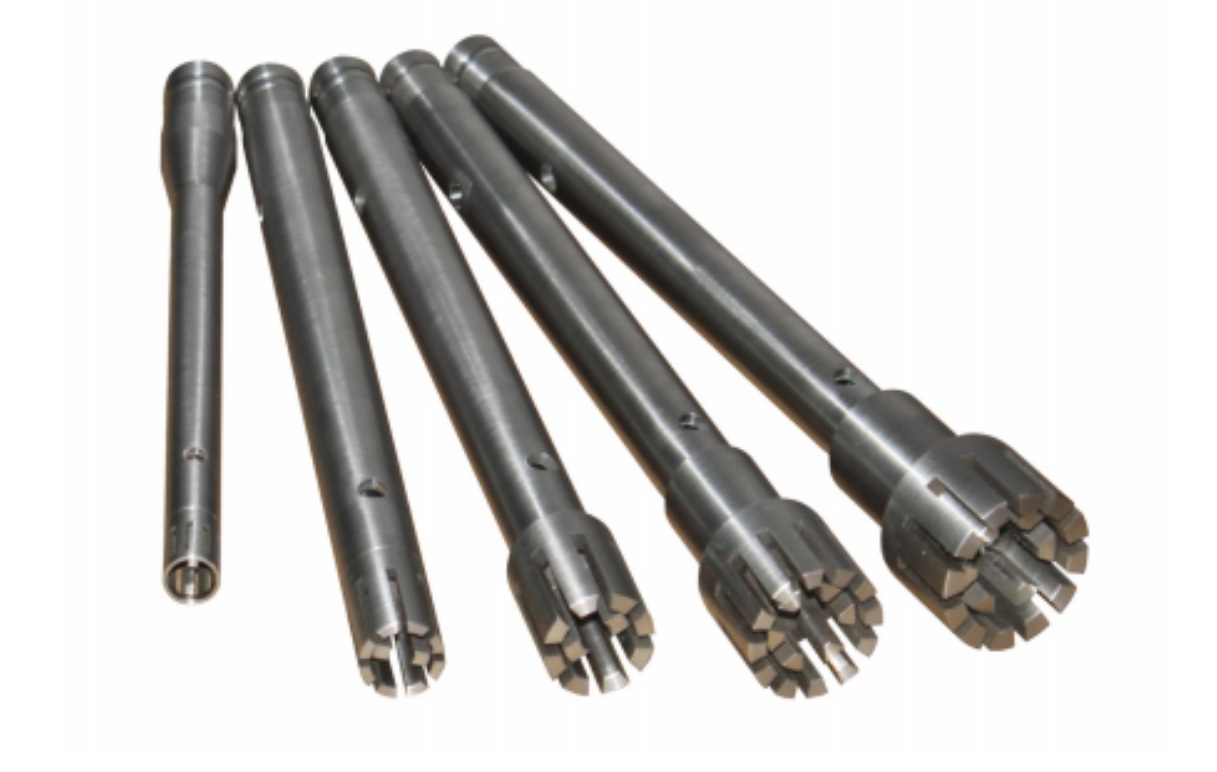

The homogenizing head is interchangeable. With a modular design, different rotor-stator working heads can be fitted according to material viscosity and particle size requirements for various cosmetic formulations. It is easy to disassemble, clean and sterilize.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
