Our 15-25/15-40bpm Semi Auto Labeling Machine for Small Business is a cost-effective, user-friendly solution tailored to the needs of startups, artisanal producers, and small-scale manufacturers.
%20Semi%20Auto%20Labeling%20Machine%20for%20Small%20Business/Semi-auto%20flat%20bottle%20labeling%20machine.png)
Our 15-25/15-40bpm Semi Auto Labeling Machine for Small Business is a cost-effective, user-friendly solution tailored to the needs of startups, artisanal producers, and small-scale manufacturers. As a CE/FDA-compliant system, it delivers professional-grade labeling accuracy without the high cost of fully automated lines. The machine combines a manual feeding system with self-adhesive labeling technology to achieve ±1mm accuracy on containers. Its durable 304 stainless steel frame features IP54 protection, ensuring longevity in diverse environments from home- based labs to small factories.
Product Specifications
Parameter Value Material 304 stainless steel Bottle Size 10–150mm outer diameter(customizable) Labeling Speed 15-25/15–40 bottles per minute (round/flat bottles) Label Accuracy ±1mm Label Width 20–220 mm/15-130mm (round/flat bottles, customizable) Power Supply 1ph AC 220V/110V 50/60Hz
Features 1. Manual Feeding Flexibility Designed for small-batch versatility, the machine features a handheld bottle cradle with adjustable grips that accommodate irregularly shaped containers—from oval skincare jars to angled craft beer bottles. This flexibility eliminates the need for custom tooling, a significant cost saver for businesses with diverse product lines. The feeding process is streamlined with a foot pedal activation system, allowing operators to position bottles with both hands before triggering label application—reducing misalignment. For added convenience, the cradle height adjusts to operator ergonomics, minimizing fatigue during extended runs.

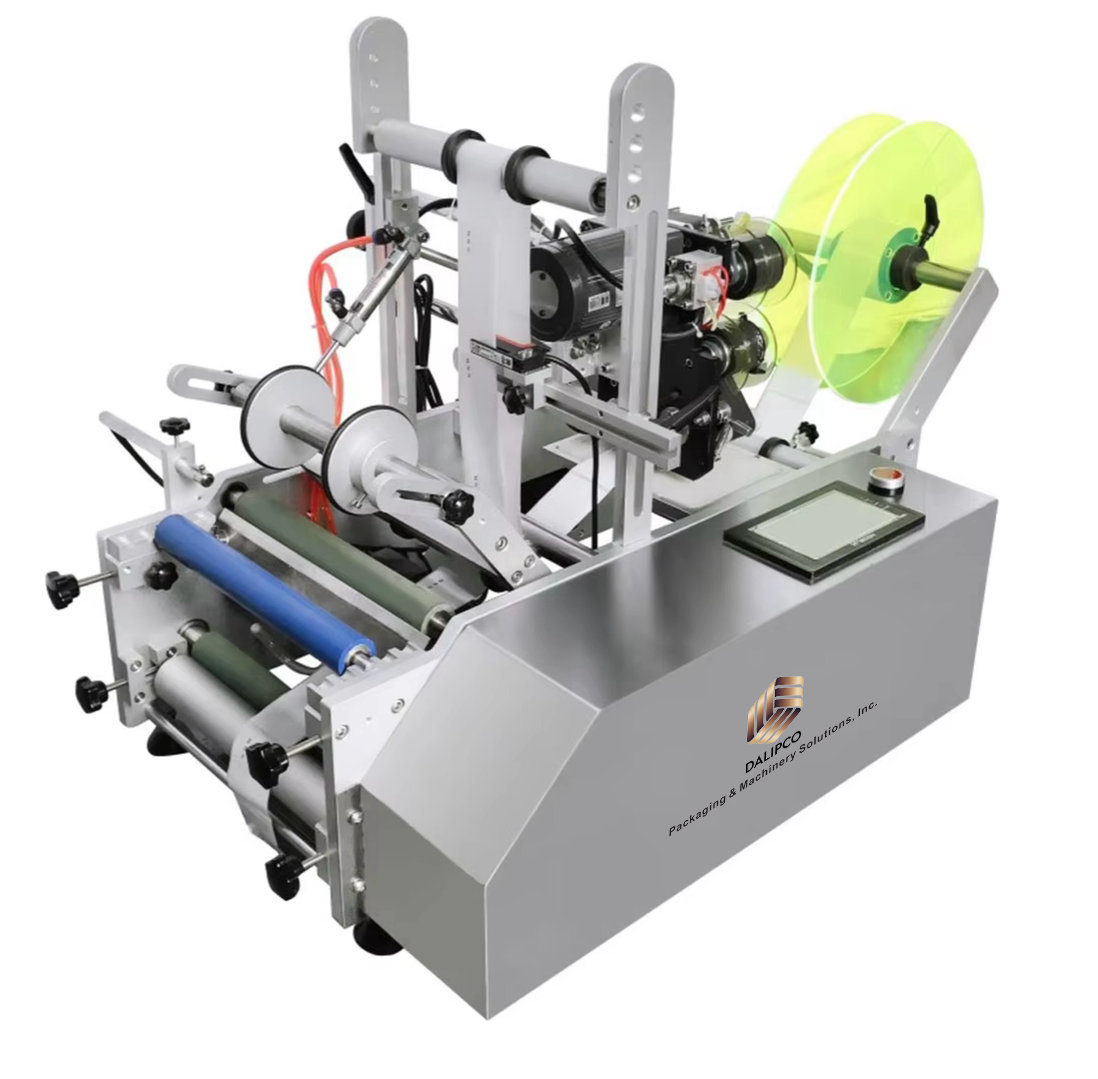

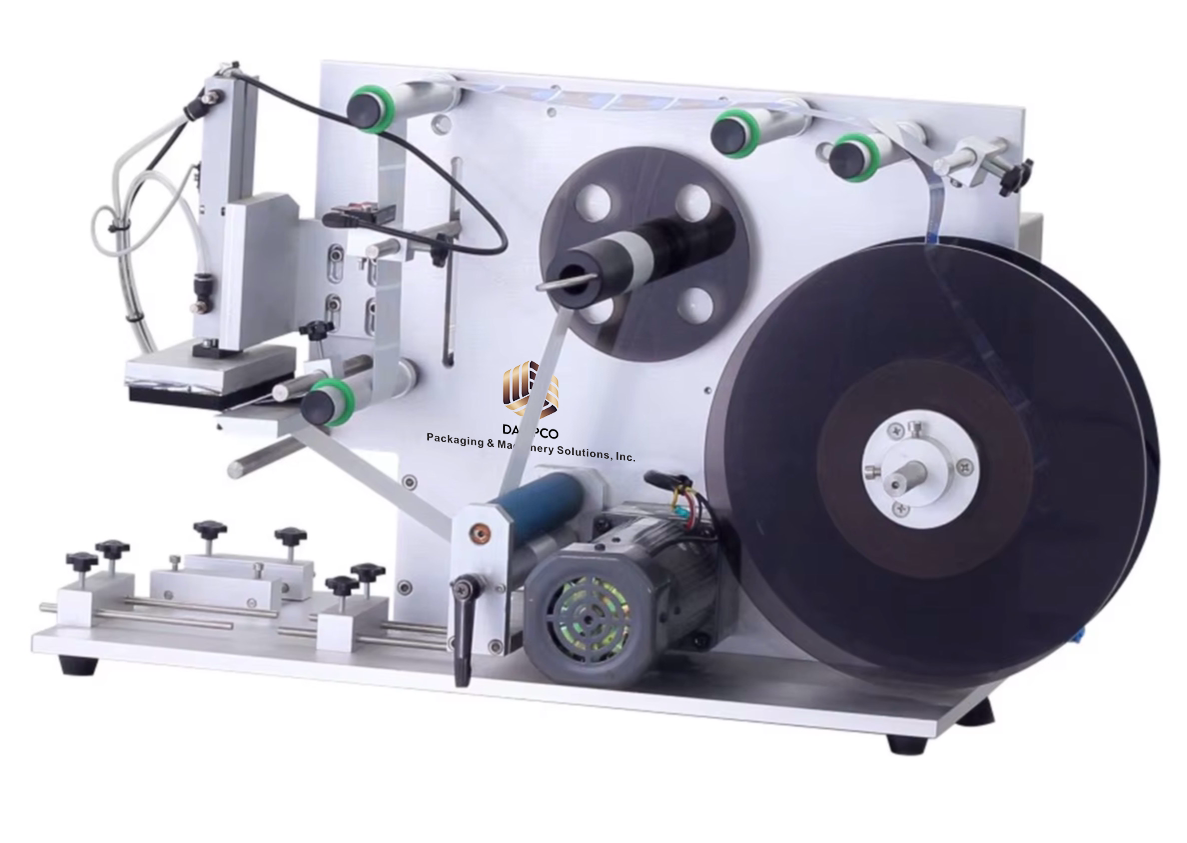

2. Self-Adhesive Labeling Precision For round bottle labeling, an arc-shaped positioning mechanism precisely conforms to the curvature of the bottle body. Combined with the synchronized rotation design of guide wheels, it ensures the label seams align neatly and smoothly, preventing skewing or overlapping.For flat bottle labeling, a dual-side flat positioning device is adopted. It uses a photoelectric sensor to detect the flat edges of the bottle body, making it particularly suitable for meeting the front and back label alignment requirements of regular flat containers such as square and rectangular ones.
3. Easy Maintenance & Cost Efficiency From its initial design, this machine is fully engineered with the needs of small businesses in mind, taking low maintenance, cost-effectiveness, and ease of operation as its core advantages. The machine features low annual maintenance costs, with readily available replacement parts at competitive prices. Additionally, it adopts an energy-efficient design with low power consumption, significantly reducing operational expenses compared to large-scale automated systems.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|
| Material | 304 stainless steel |
| Bottle Size | 10–150mm outer diameter(customizable) |
| Labeling Speed | 15-25/15–40 bottles per minute (round/flat bottles) |
| Label Accuracy | ±1mm |
| Label Width | 20–220 mm/15-130mm (round/flat bottles, customizable) |
| Power Supply | 1ph AC 220V/110V 50/60Hz |
| Suitable Bottle Shape | Round Bottle | A flat or oval surface |
| Labeling Speed | 15-25bottles/minute | 15-40bottles |
| Bottle Outer Diameter(customizable) | 10-150mm | customized |
| Suitable Label Length(customizable) | 20-200mm | 15-170mm |
| Suitable Label Width(customizable) | 20-220mm | 15-130mm |
| Air Pressure | 0.4-0.6Mpa |
| Voltage | 1ph AC 220V/110V 50/60Hz |
| Dimension(L*W*H) | 920*470*500mm | 860*500*670mm |
| Weight | 45kg | 20kg |
Detailed inspection of verified station components, drives, and sanitation assemblies.
Suitable Bottle Shape Round Bottle A flat or oval surface Labeling Speed 15-25bottles/minute 15-40bottles Bottle Outer Diameter(customizable) 10-150mm customized Suitable Label Length(customizable) 20-200mm 15-170mm Suitable Label Width(customizable) 20-220mm 15-130mm Air Pressure 0.4-0.6Mpa Voltage 1ph AC 220V/110V 50/60Hz Dimension(L*W*H) 920*470*500mm 860*500*670mm Weight 45kg 20kg
Explicit processing and packaging applications supported by this machinery model.
Food & Beverage: Labels artisanal sauces, craft beers, and organic jams with FDA-compliant adhesives.
Pharmaceuticals: Applies labels to prescription vials, herbal supplements, and nutritional drink bottles with barcode/QR code integration.
Personal Care: Handles small-batch shampoo bottles, handmade soap jars, and customized skincare containers.
Small Business: Supports low-volume production runs for niche products like essential oils, candles, and handmade cosmetics.
Source-derived technical questions and operational clarifications for this machine.
It works with pressure-sensitive labels (most common for small businesses), cold-glue labels (via optional adhesive module), and shrink sleeves (with heat tunnel attachment). It accommodates labels with text, graphics, barcodes, QR codes, and tamper-evident features.
Round Bottle is 20-220mm, A flat or oval surface: 15-170mm/15-130mm.( We will customize the sizes as you need.)
Yes. It supports with thermal transfer printers (TTP) and inkjet coders, allowing direct printing of batch numbers, expiration dates, and lot codes during labeling.
The overall operation difficulty for workers is extremely low. The core design logic is to "lower the skill threshold for workers and adapt to small and medium-batch production scenarios"
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
