● High-speed toothed homogenizer Featuring adjustable high speed from 0‑5000 rpm, this toothed homogenizer provides powerful rotor‑stator shearing force for efficient material crushing, dispersion and fine…
High-speed toothed homogenizer
Featuring adjustable high speed from 0‑5000 rpm, this toothed homogenizer provides powerful rotor‑stator shearing force for efficient material crushing, dispersion and fine emulsification.
High Vacuum Degree
The vacuum system can maintain the vacuum degree inside the tank below ‑0.095 MPa, effectively eliminating air bubbles, reducing material oxidation, delivering fine and smooth texture of finished products and improving product quality.
Precise Temperature Control
Precise temperature control keeps stable material temperature with low fluctuation, protecting material activity and ensuring consistent quality across batches.
Excellent Sanitary Condition
The whole machine is made of stainless steel. All parts in contact with materials adopt 316 stainless steel, delivering excellent sanitary performance. Smooth inner surfaces enable easy cleaning with no sanitary dead corners.
Wide Applicability
The vacuum emulsifying mixer features wide applicability. It fits multiple industries including cosmetics, food, pharmaceutical and fine chemical industries, and meets emulsification and homogenization process requirements for oil‑in‑water, water‑in‑oil systems and materials of different viscosities.
Source-verified operational parameters and mechanical specifications for this equipment configuration.
| Parameter | Specification Value |
|---|---|

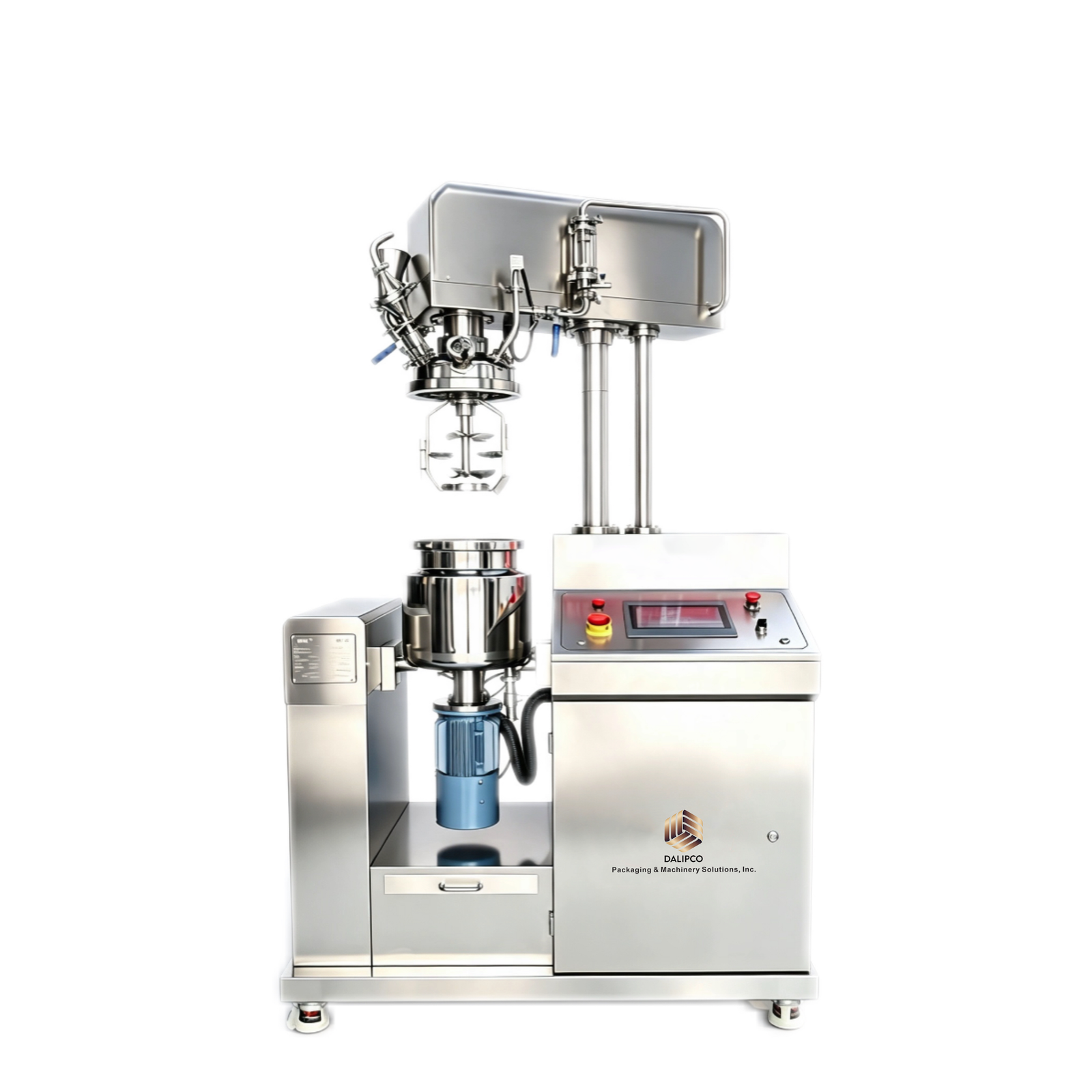

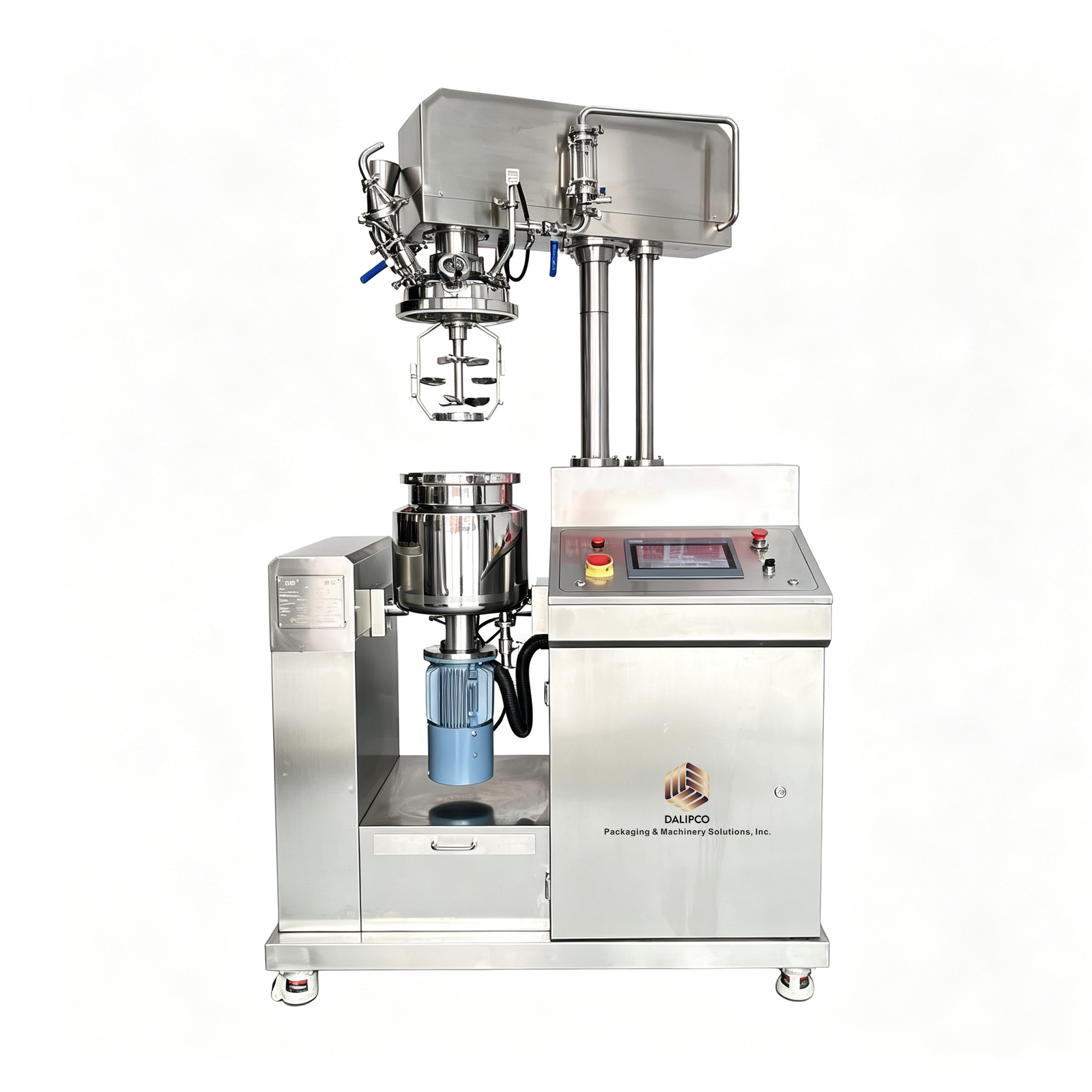

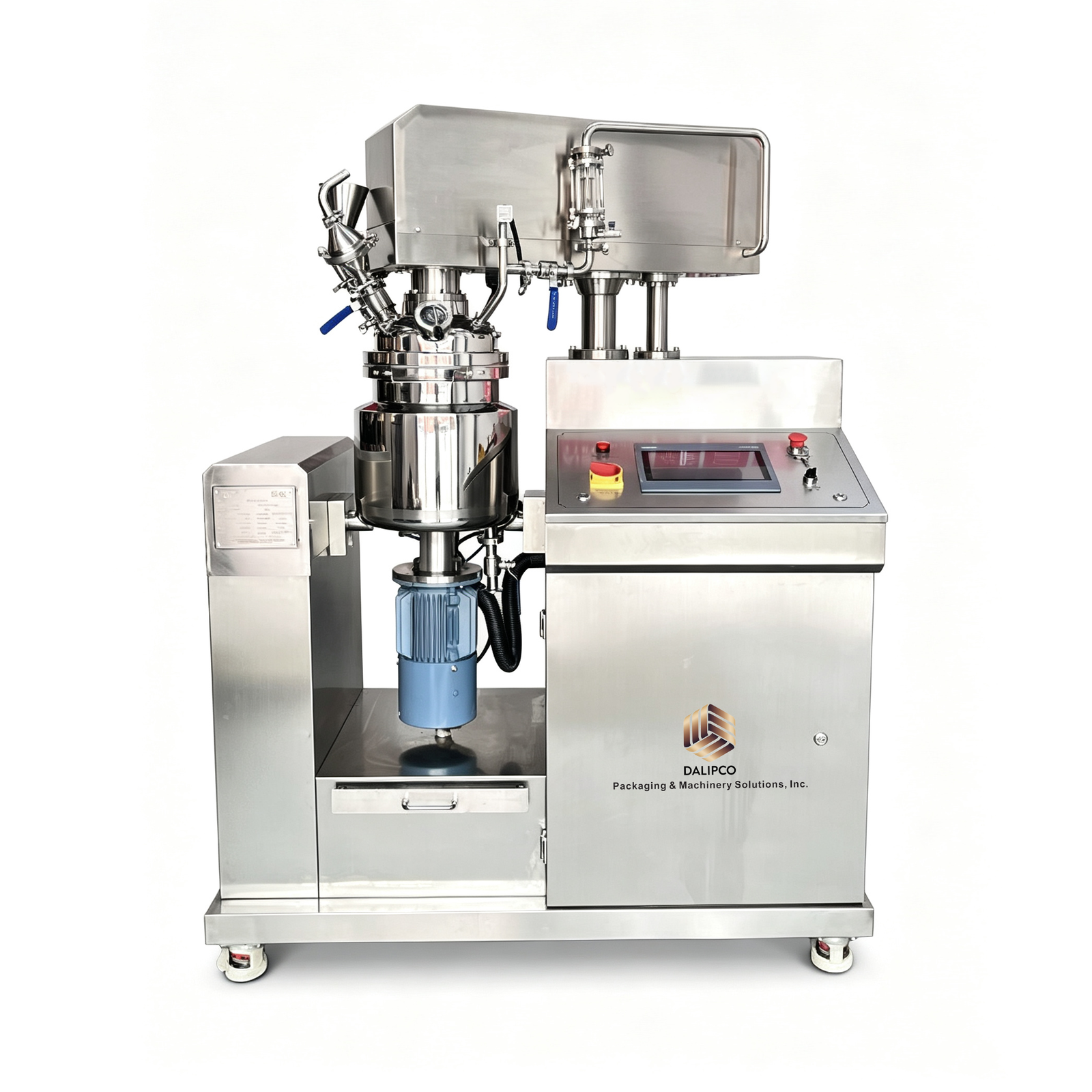

| Machine Name | High-speed Laboratory Vacuum Emulsifying Mixer |
| Material | All product contact part are made of Stainless Steel 316L |
| Tank Design | Three layers, double jackets |
| Heating Methods | Eelctric heating |
| Mixing Design | Bidirectional mixing paddle with Teflon sraper |
| Mixing Speed | 0-63rpm, customizable |
| Mixing Motor | ABB or SIEMENS |
| Homogenizer Design | High shear teeth-shape homogenizer |
| Homogenizer Position | Bottom/upper/inline homogenizer+rotary pump circulation type |
| Homogenizer Speed | 0-5000rpm, customizable |

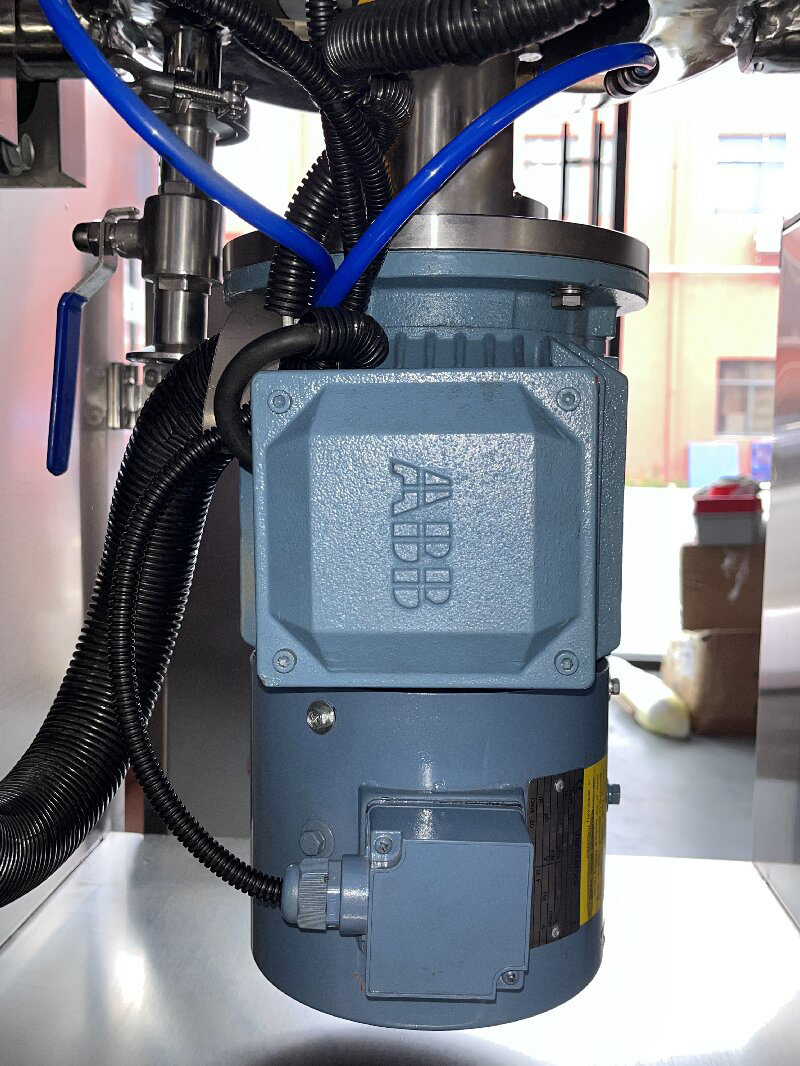

| Homogenizer Motor | ABB or SIEMENS |
| Vacuum Pressure | -0.1Mpa |
| Cover Type | Hydraulic lifting cover |
| Tank Titling | More than 90 degree tank body titling |
| Control Way | SIEMENS PLC control system and touch screen/push button |
Detailed inspection of verified station components, drives, and sanitation assemblies.

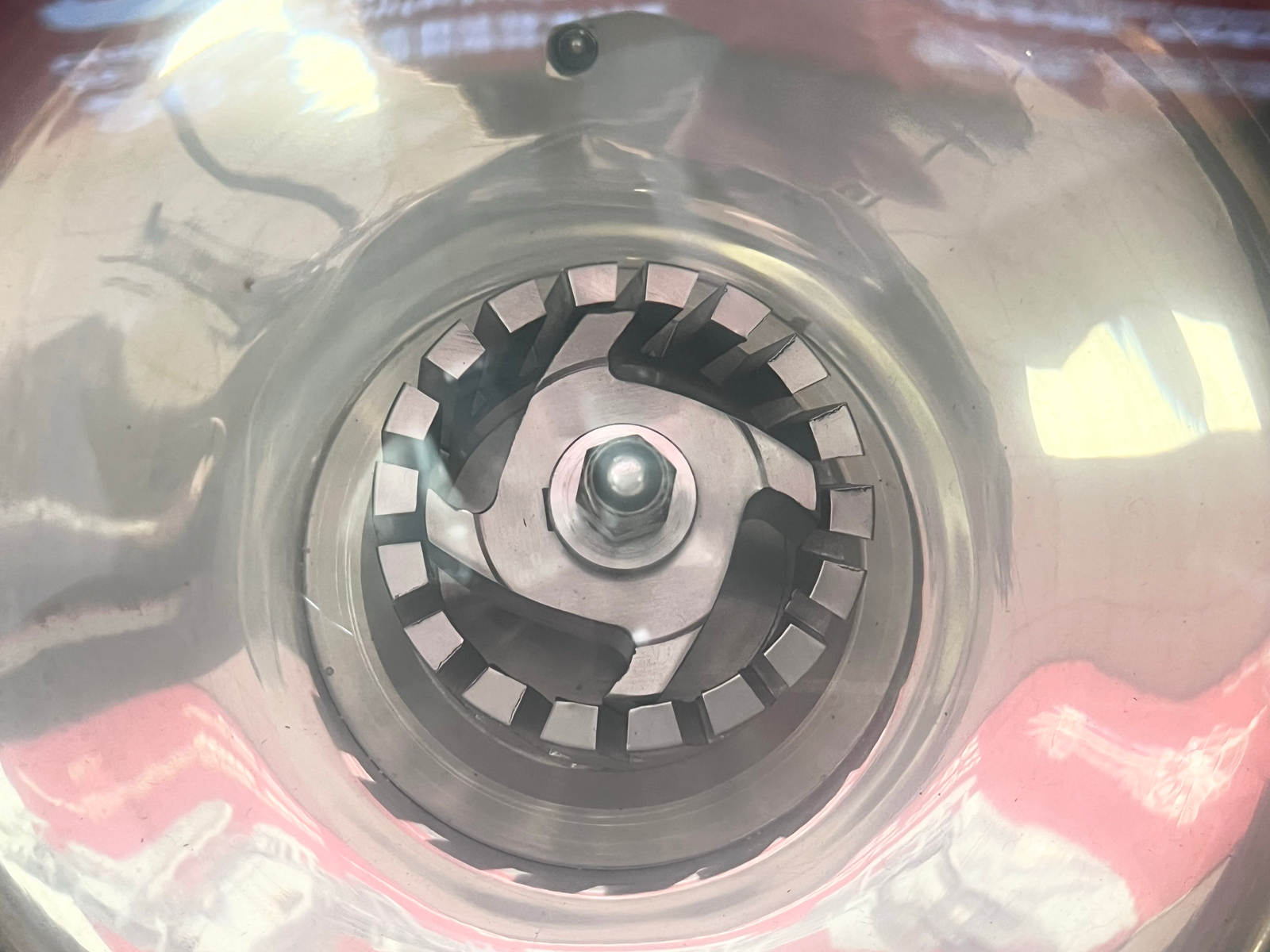

High‑speed toothed homogenizer with adjustable speed from 0‑5000 rpm, a high‑shear homogenizing device. Driven by high‑speed rotor‑stator shearing force, it delivers powerful crushing, dispersion and emulsification of materials. It finely reduces material particle size and achieves homogeneous mixing for liquid‑liquid and liquid‑solid phases, widely used in cosmetics, food, pharmaceutical and chemical industries.

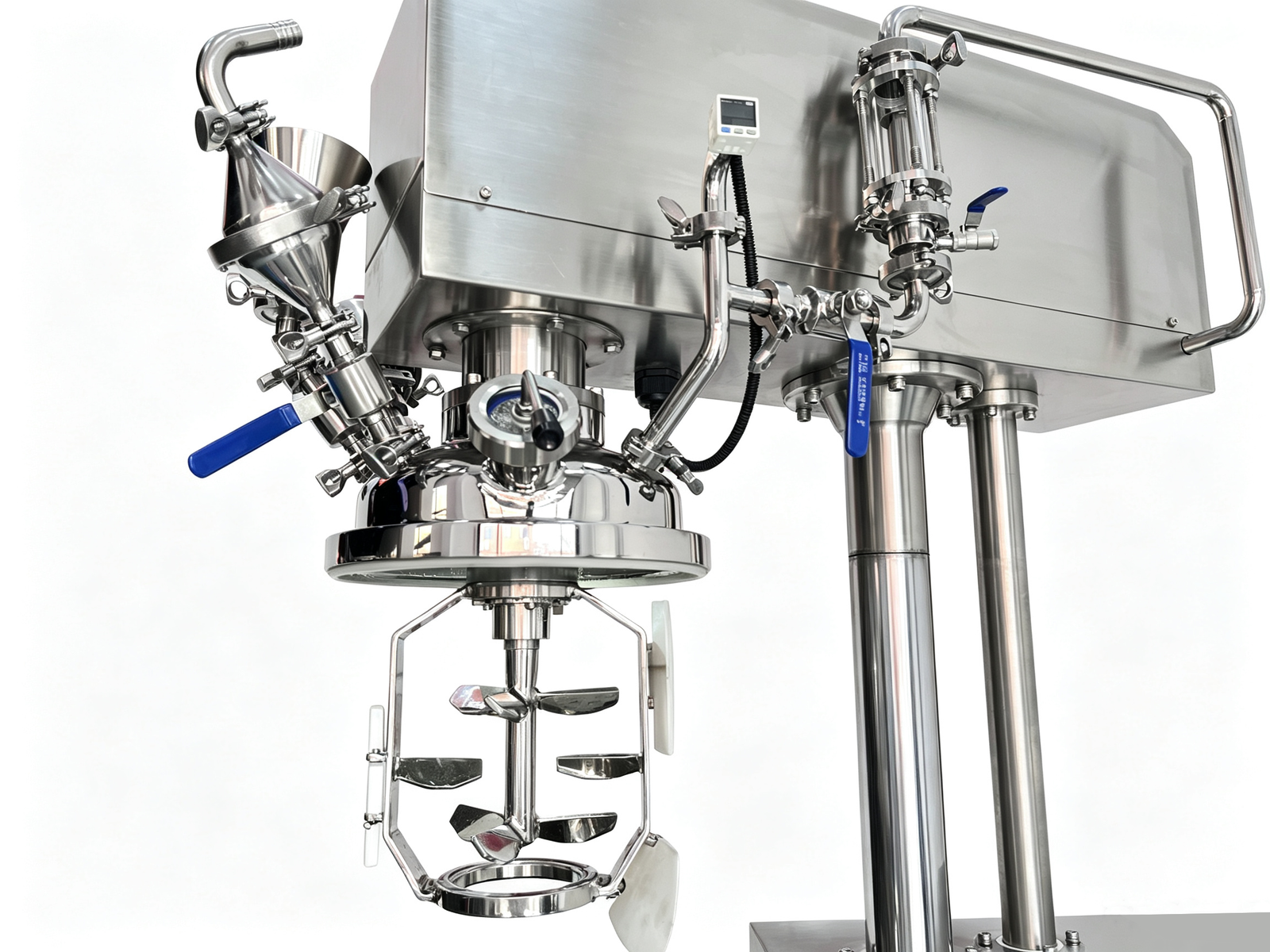

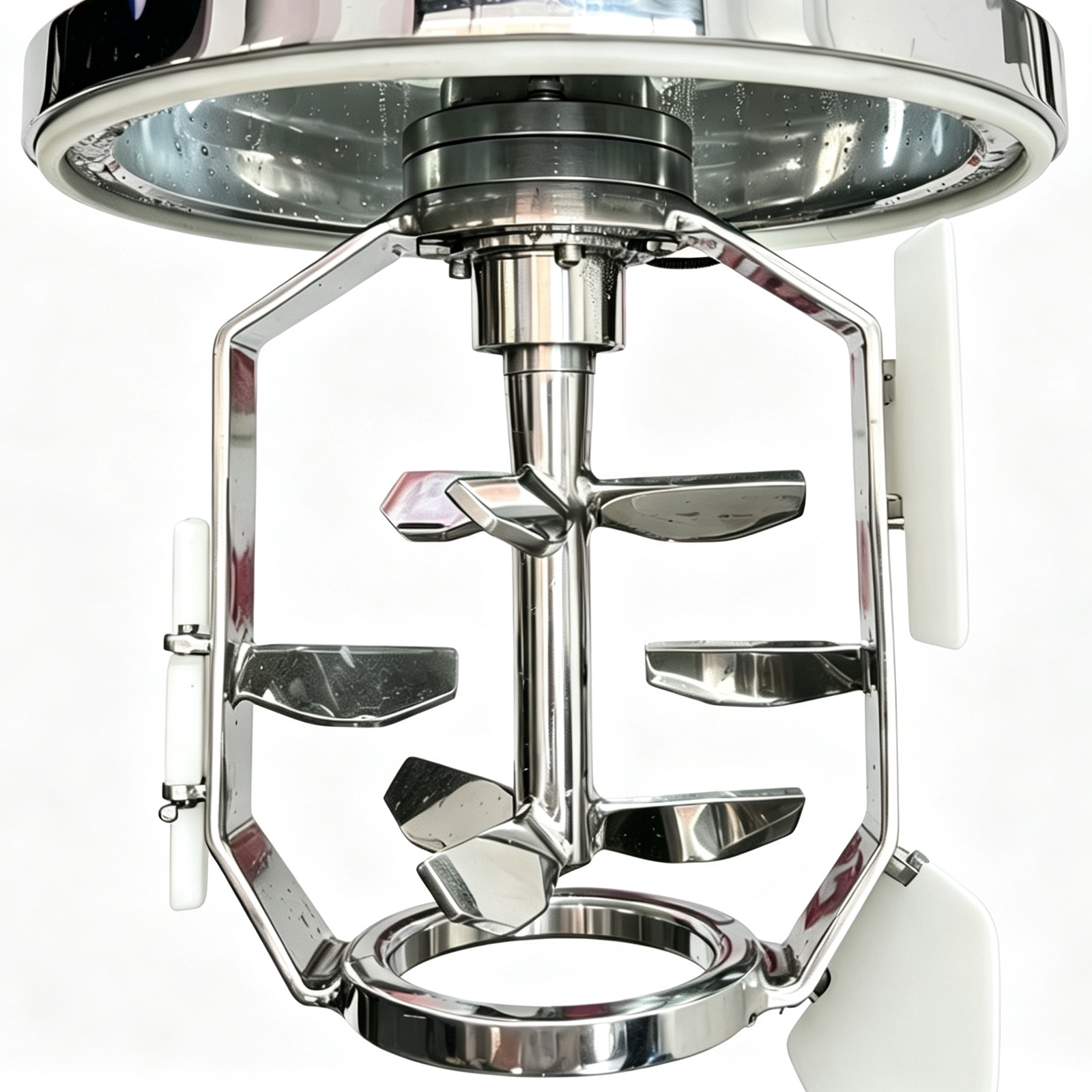

Bidirectional mixing impeller fitted with PTFE scrapers. The inner impeller rotates counter‑clockwise while the outer impeller runs clockwise, with adjustable speed ranging from 0‑63 rpm to prevent material sedimentation. The PTFE scrapers closely fit the inner tank wall to scrape off adhered materials, eliminate mixing dead zones and guarantee full and homogeneous material mixing.

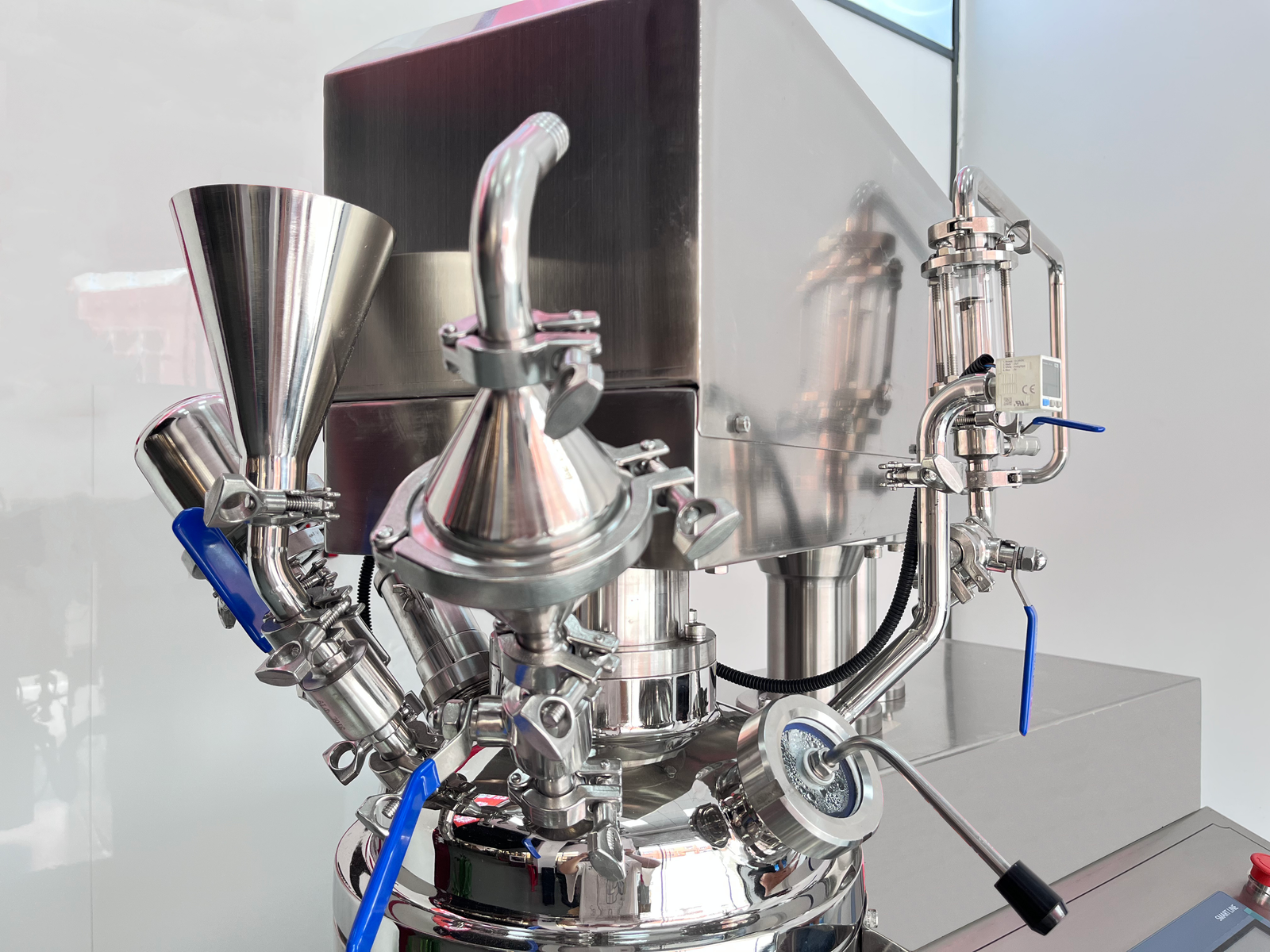

There are some accessories installed on the top cover of the vacuum emulsifier, including powder feeding hopper, air filter, viewing window, material filter and pressure gauge. The powder feeding hopper facilitates powder material feeding. The air filter blocks impurities. The viewing window allows operators to clearly observe the whole emulsification process. The material filter screens out foreign particulate impurities, and the pressure gauge monitors tank pressure in real time to ensure stable and safe production.

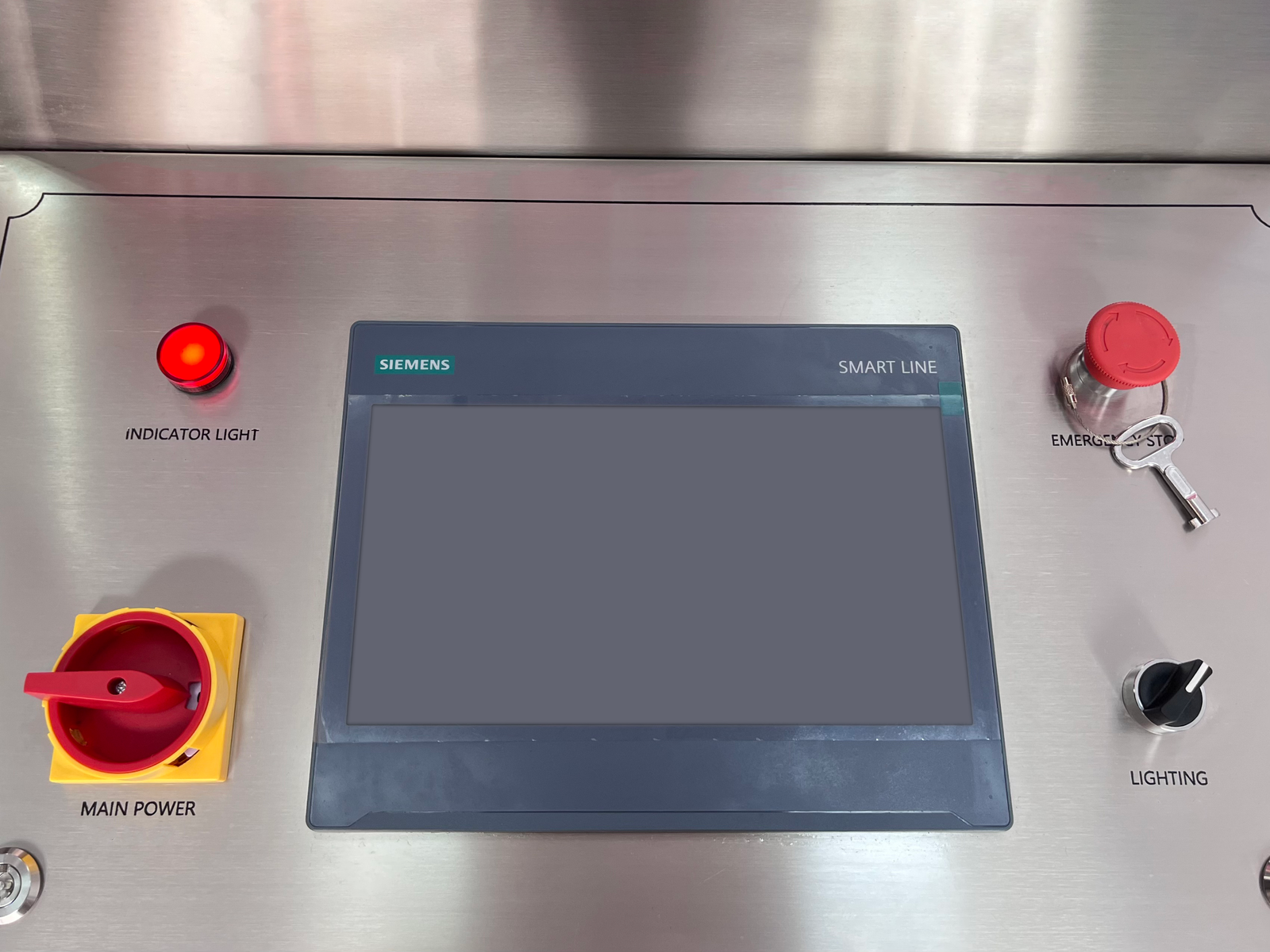

Controlled by PLC touch‑screen system. Operators can set and adjust parameters such as speed, time and vacuum level directly on the touch panel. It features intuitive interface, simple operation and real‑time status display, supporting automatic and manual working modes for stable and convenient equipment control.
Configure this unit to your formula volume, container type & speed requirements.
Connect with Dalipco machinery specialists to review changeover parts, line integration, throughput validation, or request formal quotation terms.
